MDS-10 | Miniature pressure switch | set point 15.0" H2O. | Dwyer

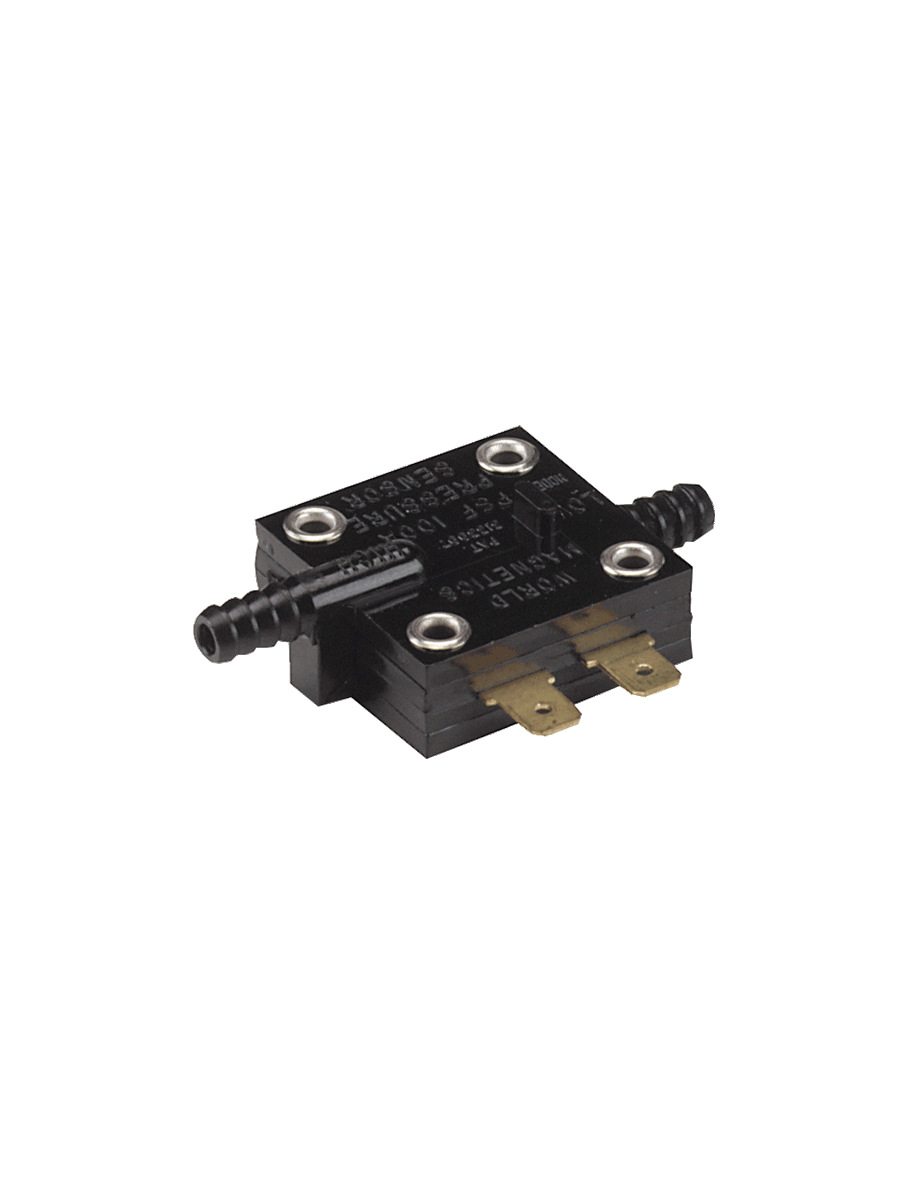

Miniature pressure switch, set point 15.0" H2O.

Dwyer | MDS-10
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MDS-10

Documents and manuals

Dwyer MDS-10 Documents

Overview

Details for MDS-10

See catalog product page for full listing

Miniature pressure switch | set point 15.0" H2O.

Series MDS Miniature Pressure Switch

Shock and Vibration Resistant, Lightweight and Compact, Gold Contacts

The Series MDS Miniature Pressure Switch is designed with a double diaphragm to protect false actuation due to shock and vibration. This low cost pressure switch has a minimum 20 million cycle life expectancy, and an extremely fast response time, making this an ideal device for OEM orders.

50 PIECE MINIMUM ORDER.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Air proving
  • Ventilation flow
  • Exhaust ducts
  • Cleaning and purification
  • Heavy equipment and machinery
  • Pressure monitoring
  • Low cost, long service life and fast response time is suitable for a wide range of OEM uses
  • Lightweight but shock and vibration resistant for tough applications
  • Gold contacts help ensure a clean connection without dirt or oxidation

Specifications

Series
MDS Miniature Pressure Switch
Category/Type
Pressure
Type
Differential Pressure
Series
MDS Miniature Pressure Switch
Switch Type
SPST normally open.
Switching Media
Air or compatible fluids on "high" side.
Pressure Limits
Set point <3.0 in. H2O: 8 psi; Set point >3.0 in. H2O: 15 psi.
Current Rating
Gold contact switch providing maximum 40 mA resistive load allowing for life in excess of 20 million cycles.
Temperature Limits
40° to 150°F (4° to 66°C).
Electrical Connections
Brass tab-type for use with quick disconnections.
Pressure Connections
Two barbed ports for use with 1/8"-3/16" ID tubing.
Housing
Polycarbonate.
Diaphragm Material
Polyurethane.
Operating Voltage
AD/DC - 30 V or less with resistive load.
Weight
Less than 0.353 oz (10 grams).
