MDS-0 | Miniature pressure switch | set point 0.5" H2O. | Dwyer

Miniature pressure switch, set point 0.5" H2O.

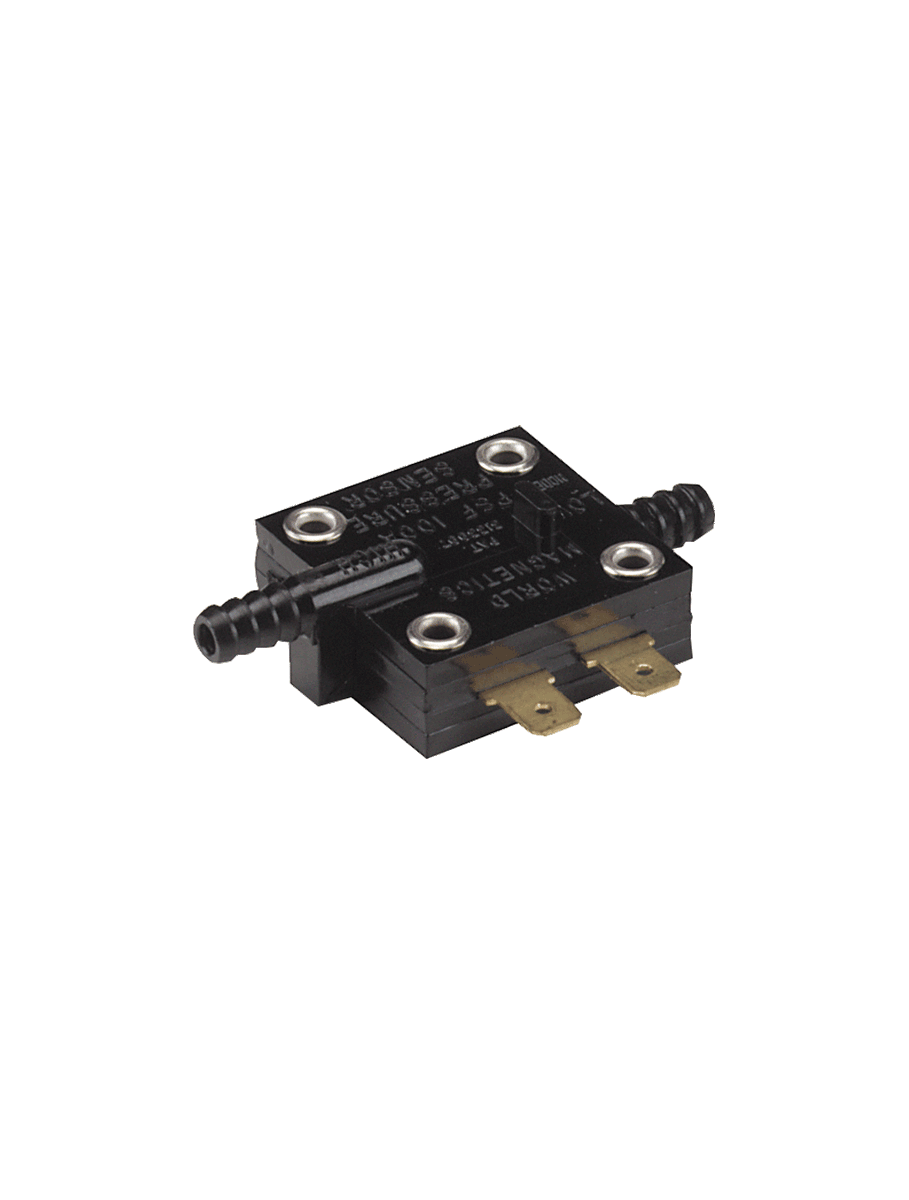

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MDS-0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer MDS-0 Documents

Series MDS Catalog Page MDS More Info

Overview

Details for MDS-0

See catalog product page for full listing

Miniature pressure switch | set point 0.5" H2O.

Series MDS Miniature Pressure Switch

Shock and Vibration Resistant, Lightweight and Compact, Gold Contacts

The Series MDS Miniature Pressure Switch is designed with a double diaphragm to protect false actuation due to shock and vibration. This low cost pressure switch has a minimum 20 million cycle life expectancy, and an extremely fast response time, making this an ideal device for OEM orders.

50 PIECE MINIMUM ORDER.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air proving
Ventilation flow
Exhaust ducts
Cleaning and purification
Heavy equipment and machinery
Pressure monitoring

Low cost, long service life and fast response time is suitable for a wide range of OEM uses
Lightweight but shock and vibration resistant for tough applications
Gold contacts help ensure a clean connection without dirt or oxidation

Specifications

Series: MDS Miniature Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: MDS Miniature Pressure Switch
Switch Type: SPST normally open.
Switching Media: Air or compatible fluids on "high" side.
Pressure Limits: Set point <3.0 in. H2O: 8 psi; Set point >3.0 in. H2O: 15 psi.
Current Rating: Gold contact switch providing maximum 40 mA resistive load allowing for life in excess of 20 million cycles.
Temperature Limits: 40° to 150°F (4° to 66°C).
Electrical Connections: Brass tab-type for use with quick disconnections.
Pressure Connections: Two barbed ports for use with 1/8"-3/16" ID tubing.
Housing: Polycarbonate.
Diaphragm Material: Polyurethane.
Operating Voltage: AD/DC - 30 V or less with resistive load.
Weight: Less than 0.353 oz (10 grams).
