MDA-311 | Miniature adjustable pressure switch | min. set point 15" w.c. (37.37 mbar) | max. set point 60" w.c. (149.3 mbar). | Dwyer

Miniature adjustable pressure switch, min. set point 15" w.c. (37.37 mbar), max. set point 60" w.c. (149.3 mbar).

Brand: DwyerSKU: MDA-311

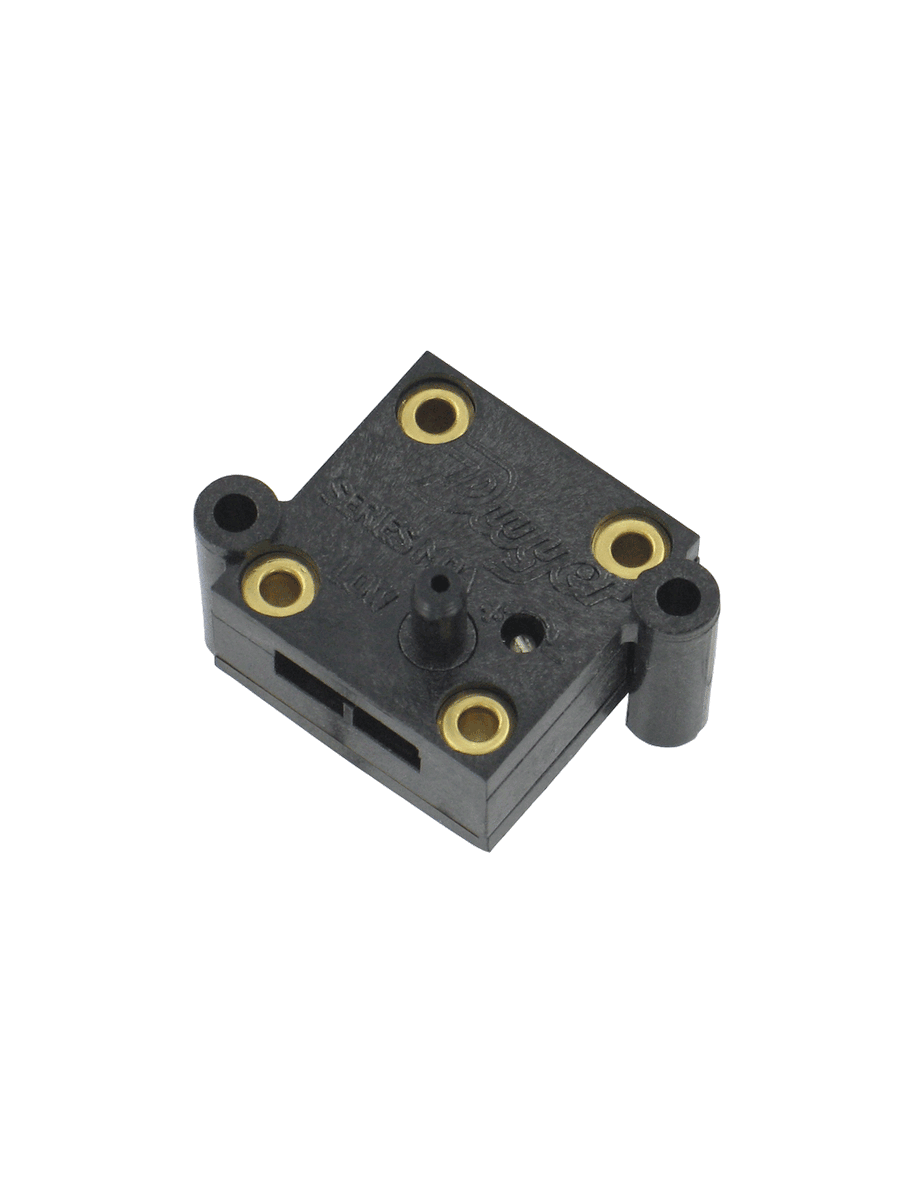

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MDA-311

Jump to: Overview & Specifications Reviews

Overview Details for MDA-311

See catalog product page for full listing

Miniature adjustable pressure switch | min. set point 15" w.c. (37.37 mbar) | max. set point 60" w.c. (149.3 mbar).

Series MDA Miniature Adjustable Pressure Switch

Adjustable Set Points from 0.1 to 100" of H2O

Sense differential pressure with the Series MDA Miniature Adjustable Pressure Switch. The switch features field adjustable set point and gold inlay contacts. Air or other compatible fluids can be used on the "high side". The lightweight and compact size make the MDA ideal for any application with space constraints. Applications include industrial, HVAC, pump and motor control, medical, automotive, pools and spas.

NOTE: 50 PIECE MINIMUM ORDER.

Product Applications

Industrial
HVAC
Automotive
Medical
Pump and motor control
Pools and spas

Air or fluid on high side permits multiple uses where both air and liquids exist
Small and lightweight for applications where space is constrained
Gold contacts help ensure a clean connection without dirt or oxidation

Specifications

Series: MDA Miniature Adjustable Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: MDA Miniature Adjustable Pressure Switch
Switch Type: SPST normally open.
Switching Media: Air or compatible fluids on “high side”.
Pressure Limits: MDA-011: 4 psi; MDA-111: 8 psi; MDA-211: 8 psi; MDA-311: 15psi. MDA-411: 30 psi.
Current Rating: 40 mA resistive for life in excess of 20 million cycles.
Temperature Limits: 40 to 150°F (4 to 66°C).
Contacts: 18K gold inlay.
Electrical Connections: Terminals - 0.187" x 0.20: spade (recessed) for use with quick disconnects.
Pressure Connections: Smooth port 5/32" diameter for 1/8" ID tubing.
Housing: Polycarbonate.
Diaphragm Material: Polyurethane.
Operating Voltage: AC/DC - 30 V or less with resistive load.
Mounting: Use #4 screws through mounting lugs or #2 screws through eyelets.
Weight: Less than 10 grams.
