MBLT-2SC-VVPP-5-30 | Mini submersible level transmitter | .25% accuracy | surge protection | 5 psi range | 0 to 5 V | 30' of vented polyurethane cable (8 V power requirement) | Dwyer
Mini submersible level transmitter, .25% accuracy, surge protection, 5 psi range, 0 to 5 V, 30' of vented polyurethane cable (8 V power requirement)
Documents and manuals
Dwyer MBLT-2SC-VVPP-5-30 Documents
Overview
Details for MBLT-2SC-VVPP-5-30
Mini submersible level transmitter | .25% accuracy | surge protection | 5 psi range | 0 to 5 V | 30' of vented polyurethane cable (8 V power requirement)
SERIES MBLT MINIATURE SUBMERSIBLE LEVEL TRANSMITTER

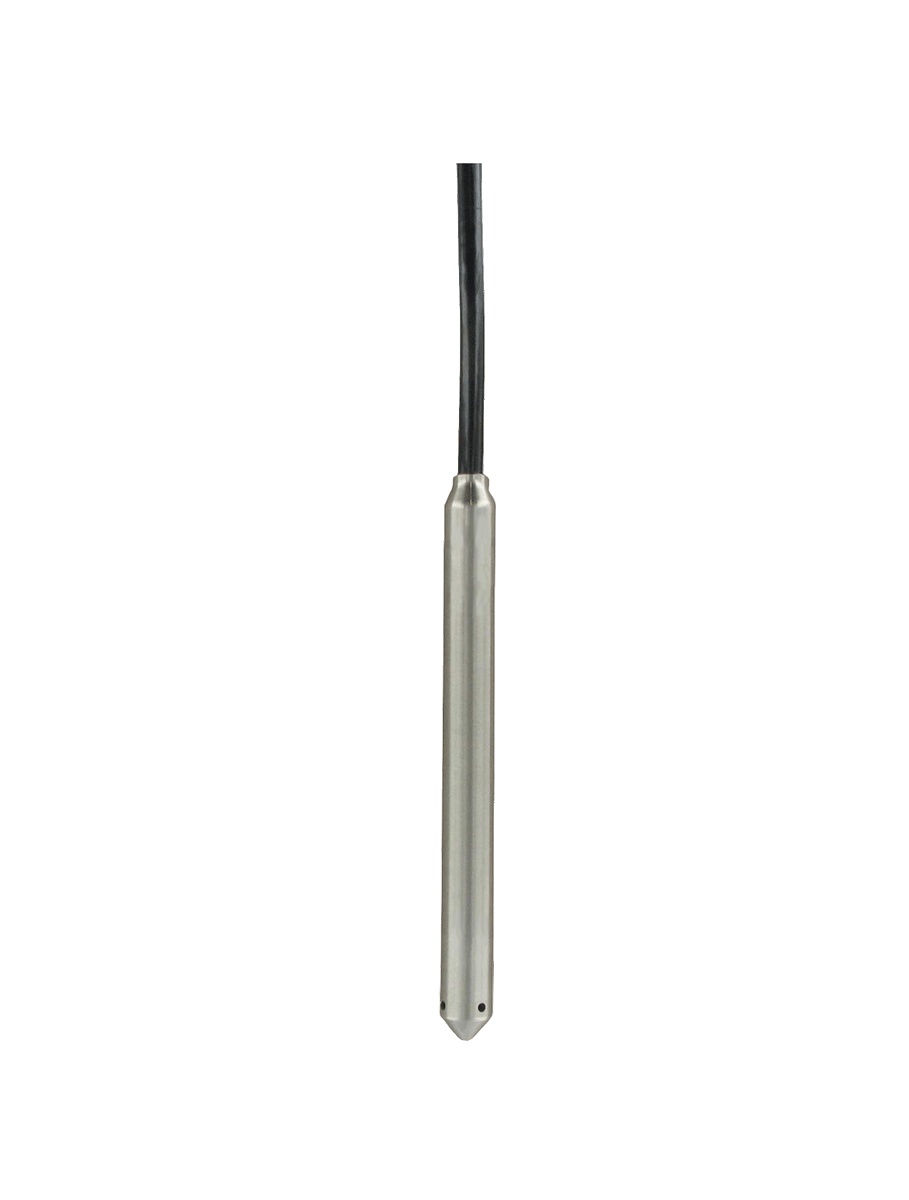

The MBLT Miniature Submersible Level Transmitter is only 0.63" indiameter making it ideal for level monitoring in well and borehole applications.Constructed for years of trouble free service, the MBLT has a welded 316 SSbody and 316 SS nose cap. Body top is also 316 SS and tapered to preventdamage or snares when pulling the unit out of the installation. Featured in theMBLT is a precision ±0.10% or ±0.25% of full scale accuracy output, better thanBFSL or BSL rated outputs used by most competitors. Lightning and surgeprotection (not guaranteed or covered by standard warranty) is includedstandard to stand up in harsh applications. MBLT comes with a choice ofpolyether polyurethane or ETFE cable materials and all are vented forbarometric pressure compensation. Vent is covered with a maintenance-freefilter preventing particulate or water droplets from entering the transmitter.
Low Power Voltage Models Available!
Product Applications
- Ballast tanks
- Ground water monitoring
- Surface water monitoring
- Dewatering
- Down hole
- Remote telemetry applications
- Remediation and other environmental monitoring applications
- Remote flood monitoring
- Narrow conduit or pipe installations
- Fits narrow installation openings with slender 0.63" (16 mm) diameter design
- Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
- Prevents damage or snares when removing the unit from the installation with tapered 316 SS body top
- More precise than BFSL or BSL rated output with ±0.10% or ±0.25% FS accuracy output
- Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
- Excellent chemical compatibility with choice of polyether polyurethane or ETFE cable materials
- Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection, (surge protection is not guaranteed and is not covered by warranty)
Specifications
- Series
- MBLT MINIATURE SUBMERSIBLE LEVEL TRANSMITTER
- Category/Type
- Level
- Type
- Level Transmitters
- Series
- MBLT MINIATURE SUBMERSIBLE LEVEL TRANSMITTER
- Service
- Compatible liquids.
- Wetted Materials
- Body and nose: 316 SS;Cable: Polyether polyurethane orETFE;Seals: Fluoroelastomer;Label: Polyolefin.
- Accuracy
- ±0.25% or ±0.10% FS. 4.3 to 4.9 psi (10 to 11.54" w.c.) configured ranges are ±0.30% FS accuracy.
- Temperature Limits
- -4 to 176°F(-20 to 80°C).
- Compensated Temperature Limits
- 0.25%: (0 to 70°C);0.10%: (0 to 60°C).
- Thermal Effect
- 0.25%: ±0.45%FS TEB; 0.10%: ±0.30% FS TEB.
- Pressure Limit
- 2x FS.
- Power Requirements
- Current Output: 10 to 33 VDC;Voltage Output: 8 to 33 VDC; 5 mAmax (no load).
- Output Signal
- 4 to 20 mA DC 2-wireor 0 to 5V* (model depending). *Consult factory for additional outputs.
- Response Time
- < 50 ms.
- Max Loop Resistance
- 1000Ω @ 30VDC (current output).
- Voltage Output Impedence
- 10Ω + 4.4Ω / 100' cable (voltage output).
- Electrical Connections
- Wirepigtail.
- Mounting Connection
- Suspended below point beingmonitored.
- Electrical Protection
- Surge/lightning protected perEN61000-4-5; Class 5.
- Weight
- Body: 0.235 lb (0.107 kg);Cable: 0.037 lb (0.009 kg) perfoot.
- Agency Approvals
- CE.
