MBLT-2SC-IVPM-40-46 | Mini submersible level transmitter | .25% accuracy | surge protection | 40 meter range | 4 to 20 mA output | 46 meter of vented polyurethane cable | Dwyer

Mini submersible level transmitter, .25% accuracy, surge protection, 40 meter range, 4 to 20 mA output, 46 meter of vented polyurethane cable

Brand: DwyerSKU: MBLT-2SC-IVPM-40-46

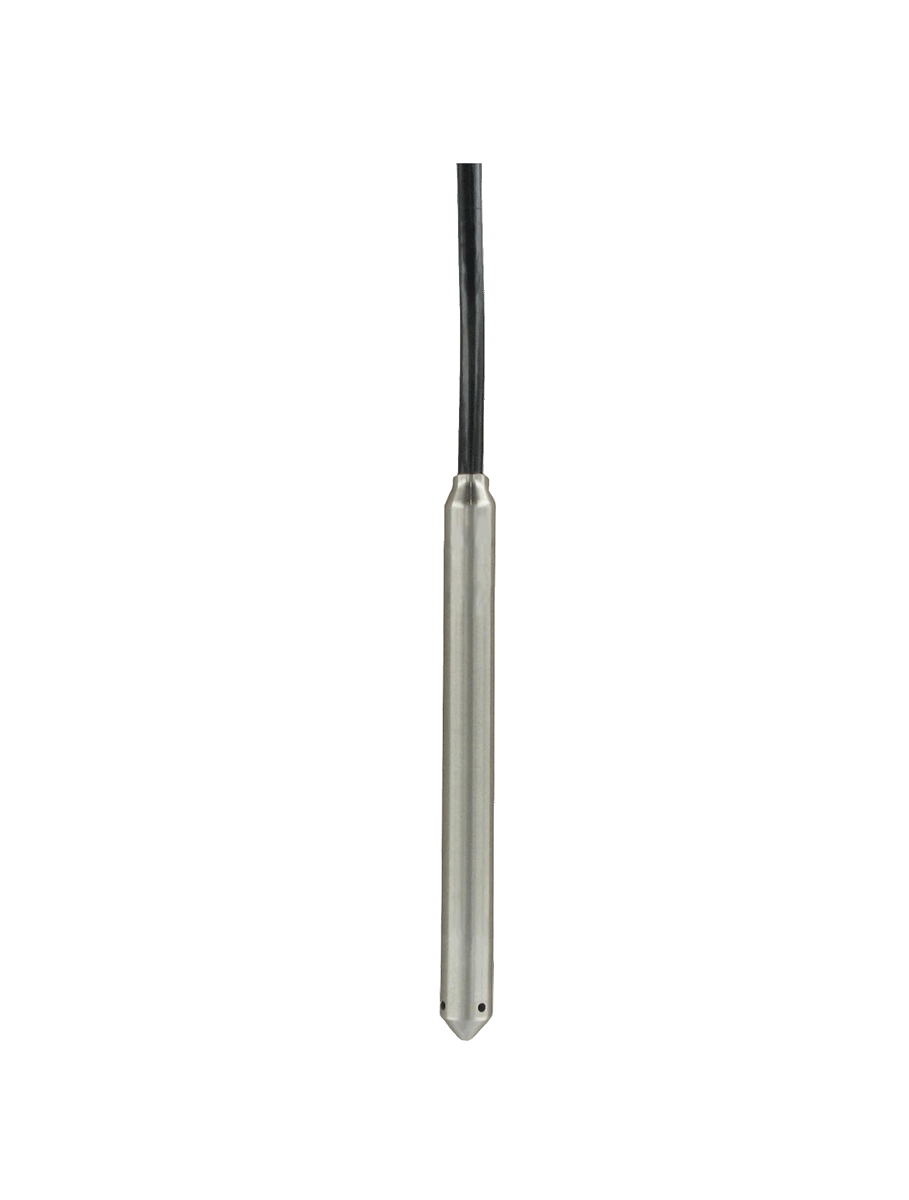

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MBLT-2SC-IVPM-40-46

Jump to: Overview & Specifications Reviews

Overview Details for MBLT-2SC-IVPM-40-46

See catalog product page for full listing

SERIES MBLT MINIATURE SUBMERSIBLE LEVEL TRANSMITTER

Only 0.63" (16 mm) in Diameter, Perfect for Wells and Boreholes, Up to ±0.10% Accuracy

The MBLT Miniature Submersible Level Transmitter is only 0.63" indiameter making it ideal for level monitoring in well and borehole applications.Constructed for years of trouble free service, the MBLT has a welded 316 SSbody and 316 SS nose cap. Body top is also 316 SS and tapered to preventdamage or snares when pulling the unit out of the installation. Featured in theMBLT is a precision ±0.10% or ±0.25% of full scale accuracy output, better thanBFSL or BSL rated outputs used by most competitors. Lightning and surgeprotection (not guaranteed or covered by standard warranty) is includedstandard to stand up in harsh applications. MBLT comes with a choice ofpolyether polyurethane or ETFE cable materials and all are vented forbarometric pressure compensation. Vent is covered with a maintenance-freefilter preventing particulate or water droplets from entering the transmitter.

Low Power Voltage Models Available!

Product Applications

Ballast tanks
Ground water monitoring
Surface water monitoring
Dewatering
Down hole
Remote telemetry applications
Remediation and other environmental monitoring applications
Remote flood monitoring
Narrow conduit or pipe installations

Fits narrow installation openings with slender 0.63" (16 mm) diameter design
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Prevents damage or snares when removing the unit from the installation with tapered 316 SS body top
More precise than BFSL or BSL rated output with ±0.10% or ±0.25% FS accuracy output
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Excellent chemical compatibility with choice of polyether polyurethane or ETFE cable materials
Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection, (surge protection is not guaranteed and is not covered by warranty)

Specifications

Series: MBLT MINIATURE SUBMERSIBLE LEVEL TRANSMITTER
Category/Type: Level
Type: Level Transmitters
Series: MBLT MINIATURE SUBMERSIBLE LEVEL TRANSMITTER
Service: Compatible liquids.
Wetted Materials: Body and nose: 316 SS;Cable: Polyether polyurethane orETFE;Seals: Fluoroelastomer;Label: Polyolefin.
Accuracy: ±0.25% or ±0.10% FS. 4.3 to 4.9 psi (10 to 11.54" w.c.) configured ranges are ±0.30% FS accuracy.
Temperature Limits: -4 to 176°F(-20 to 80°C).
Compensated Temperature Limits: 0.25%: (0 to 70°C);0.10%: (0 to 60°C).
Thermal Effect: 0.25%: ±0.45%FS TEB; 0.10%: ±0.30% FS TEB.
Pressure Limit: 2x FS.
Power Requirements: Current Output: 10 to 33 VDC;Voltage Output: 8 to 33 VDC; 5 mAmax (no load).
Output Signal: 4 to 20 mA DC 2-wireor 0 to 5V* (model depending). *Consult factory for additional outputs.
Response Time: < 50 ms.
Max Loop Resistance: 1000Ω @ 30VDC (current output).
Voltage Output Impedence: 10Ω + 4.4Ω / 100' cable (voltage output).
Electrical Connections: Wirepigtail.
Mounting Connection: Suspended below point beingmonitored.
Electrical Protection: Surge/lightning protected perEN61000-4-5; Class 5.
Weight: Body: 0.235 lb (0.107 kg);Cable: 0.037 lb (0.009 kg) perfoot.
Agency Approvals: CE.
