LPG4-D8722N | Low pressure gage | range 0-160" w.c. (0-40 kPa). | Dwyer

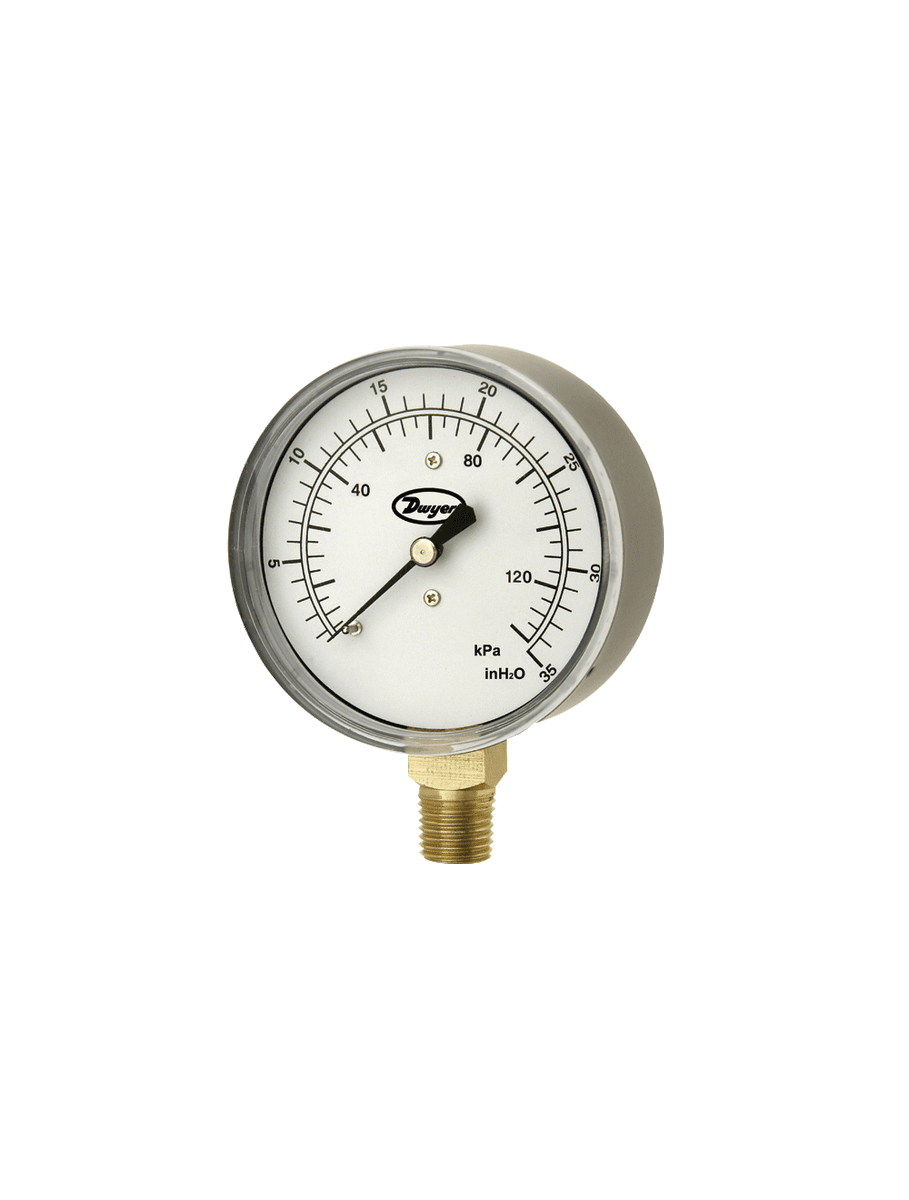

Low pressure gage, range 0-160" w.c. (0-40 kPa).
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LPG4-D8722N
Documents and manuals
Dwyer LPG4-D8722N Documents
Overview
Details for LPG4-D8722N
See catalog product page for full listing
Low pressure gage | range 0-160" w.c. (0-40 kPa).
SERIES LPG4 2.5" LOW PRESSURE GAGE
1.5% Full Scale Accuracy in a 2.5" Gage
Our Series LPG4 2.5" Low Pressure Gage offers top of the line performance and accuracy for pressure and vacuum applications up to and including 160 in w.c. The LPG4 is constructed from a single beryllium-copper diaphragm affixed to a precision-machined brass plate. This innovative design, together with a high-precision, milled-teeth brass movement and nickel-silver pinion and bearing surface, provide the user with a top of the line low pressure instrument.
Calibration Option available under Accessories.
Product Applications
- Air flow indication
- Liquid level
- Draft measurement
- Low pressure gage provides a selection to meet specific applications
- Specified with high ambient and process temperature ratings mean more robustuses and longer service-life
- High accuracy gage for applications requiring more precise measurement is aconcern
Specifications
- Series
- LPG4 2.5" LOW PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- LPG4 2.5" LOW PRESSURE GAGE
- Service
- Compatible gases & liquids.
- Wetted Materials
- Brass and beryllium copper.
- Housing
- Drawn steel; black finish.
- Lens
- Polycarbonate (removable).
- Accuracy
- ±1.5% FS.
- Pressure Limit
- 100% of range scale.
- Temperature Limits
- Process: -40 to 160°F (-40 to 70°C); Ambient: -40 to 140°F (-40 to 60°C).
- Size
- 2.5" (63 mm)
- Process Connections
- 1/4" male NPT.
- Enclosure Rating
- NEMA 3 (IP54).
- Weight
- 7.3 oz (0.21 kg).
