L6EPB-B-S-3-H | Liquid level switch | 304 SS spherical float | brass external float chamber (tee) | max. pressure 250 psig (17.2 bar) | min. S.G. 0.7. | Dwyer

Liquid level switch, 304 SS spherical float, brass external float chamber (tee), max. pressure 250 psig (17.2 bar), min. S.G. 0.7.

Brand: DwyerSKU: L6EPB-B-S-3-H

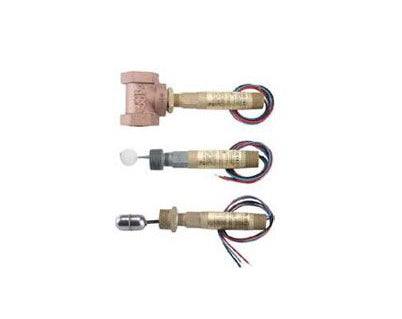

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to L6EPB-B-S-3-H

Jump to: Overview & Specifications Reviews

Overview Details for L6EPB-B-S-3-H

See catalog product page for full listing

Liquid level switch | 304 SS spherical float | brass external float chamber (tee) | max. pressure 250 psig (17.2 bar) | min. S.G. 0.7.

SERIES L6 FLOTECT® LIQUID LEVEL SWITCH

Easy In-wall or External Installation, Up to 2000 psig (138 bar), Compact Size

Surprisingly compact, the Series L6 Flotect® Level Switch is designed and built for years of trouble-free service in a wide variety of process liquid level applications. Operation is simple and dependable with no mechanical linkage as the level switch is magnetically actuated. The float lever pivoted within the body moves when the process liquid displaces the float. A magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Direct pump control for maintaining level
Automatic tank dump operations
Level control
Valve control
Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes

Trouble-free service due to compact design
Simple and dependable operation with no mechanical linkage
Leak-proof lower body machined from bar stock
Flexible application use with side wall or direct tee mounting options available to act as an external float chamber
Ideal for demanding outdoor applications with weatherproof and explosion-proof body
Save on maintenance costs with electrical assembly that can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
High accuracy with sensitivity to level changes of less than 1/2" (12 mm)

Specifications

Series: L6 FLOTECT® LIQUID LEVEL SWITCH
Category/Type: Level
Type: Level Switches
Series: L6 FLOTECT® LIQUID LEVEL SWITCH
Service: Liquids compatible with wetted materials.
Wetted Materials: Float: Solid polypropylene or 304 SS; Lower Body: Brass or 303 SS; Magnet: Ceramic; External Float Chamber (Tee): Matches lower body choice of brass or 303 SS; Other: Lever Arm; Spring; Pin; etc.: 301 SS.
Temperature Limits: -4 to 220°F (-20 to 105°C) standard; MT high temperature option 400°F (205°C) (MT not UL; CSA; ATEX; IECEx and KC). ATEX compliant AT;IECEx IEC and KC option ambient temperature -4 to 167°F (-20 to 75°C) process temperature: -4 to 220°F (-20 to 105°C).
Pressure Limits: See model chart on Catalog Page.
Enclosure Rating: Weatherproof and Explosion-proof. Listed with UL and CSA for Class I; Groups A; B; C and D; Class II; Groups E; F; and G. (Group A on SS body models only.) ATEX CE 0344 EX II 2 G EEx d IIC T6 Process Temp ≤ 75°C. EC-Type Certificate No: KEMA 04ATEX2128. ATEX Standards: EN 60079-0: 2009; EN60079-1: 2007. IECEx Certified: For Ex d IIC T6 Gb Process Temp = 75°C. IECEx Certificate of Conformity: IECEx DEK II.0039. IECEx Standards: IEC 60079-00: 2007; IEC 60079-1: 2007. Korean Certified (KC) for Ex d IIC T6 Gb Process Temp=75°C.KTL Certificate Number: 2012-2454-75.
Switch Type: SPDT snap switch standard; DPDT snap switch optional.
Electrical Rating: UL models 5 A @ 125/250 VAC (V~). CSA; ATEX; and IECEx models: 5 A @ 125/250 VAC (V~); 5 A res.; 3 A ind. @ 30 VDC (V~). MV option: .1 A @ 125 VAC (V~). MT option: 5 A @ 125/250 VAC (V~). [MT option not UL; CSA; ATEX; or IECEx].
Electrical Connections: UL models: 18 AWG; 18" (457.20 mm) long. ATEX/CSA/IECEx models: terminal block.
Upper Body: Brass or 303 SS.
Conduit Connection: 3/4" (19.05 mm) male NPT standard; 3/4" (19.05) female NPT or M25 with BSPT option on junction box models.
Process Connection: 1" (25.40 mm) male NPT or 1" (25.40 mm) male BSPT on models without external float chamber; 1" (25.40 mm) female NPT or 1" (25.40 mm) female BSPT on models with external float chamber.
Mounting Orientation: Horizontal with index arrow pointing down.
Specific Gravity: See chart on Catalog page.
Weight: Approximately 1 lb (.5 kg) without external float chamber; 1.75 lb (.8 kg) with external float chamber.
Agency Approvals: ATEX; CE; CSA; IECEx; KTL; UL.
