L10-B-3-H | Mini-size level switch | 304 SS spherical float | brass tee | max. pressure 250 psig (17.2 bar) | min. S.G. 0.7. | Dwyer

Mini-size level switch, 304 SS spherical float, brass tee, max. pressure 250 psig (17.2 bar), min. S.G. 0.7.

Brand: DwyerSKU: L10-B-3-H

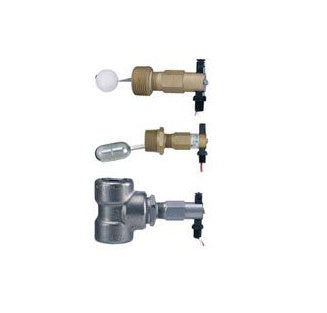

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to L10-B-3-H

Jump to: Overview & Specifications Reviews

Overview Details for L10-B-3-H

See catalog product page for full listing

Mini-size level switch | 304 SS spherical float | brass tee | max. pressure 250 psig (17.2 bar) | min. S.G. 0.7.

Series L10 FLOTECT® Mini-Size Level Switch

Easy In-wall or External Installation, Specific Gravities as Low as 0.5

The Series L10 Flotect® Mini-Size Float Switches combine low cost with top quality materials and construction for great value and years of reliable liquid level control. Wide media compatibility is assured with a choice of brass or stainless steel bodies and external tees; polypropylene or SS floats. Two basic configurations are offered; with 1" NPT male threads for direct side mounting through a half coupling or with factory installed tee for external mounting.

All Series L10 controls feature a hermetically sealed, magnetically actuated SPST reed switch which is encapsulated in a polypropylene housing. Units are quickly and easily adjusted for your choice of normally open or normally closed operation thanks to a unique design. Just loosen two screws and instantly slide the switch assembly to the action required. N.O. and N.C. markings are clearly visible. This feature also speeds switch replacement if damage occurs.

Three types of floats are offered to accommodate liquids with specific gravities as low as 0.5; maximum pressures to 2000 psig (137.8 bar). Wire leads are 22 AWG X 18" (460 mm) and exit the switch assembly through 1/8" male NPT threads. These controls are UL recognized and CSA listed.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Direct pump control for maintaining level
Level control
Automatic tank dump operations
Valve control

Long operating life with hermetically sealed, magnetically-actuated SPST reed switch, which is encapsulated in a polypropylene housing
Easily toggle between normally open (NO) or normally closed (NC) with no change in the electrical connection using simple field switch adjustment
Quick and low cost maintenance from easily replaceable switch without affecting installation
Great value and years of reliable liquid level control with top quality materials at a low cost

Specifications

Series: L10 FLOTECT® Mini-Size Level Switch
Category/Type: Level
Type: Level Switches
Series: L10 FLOTECT® Mini-Size Level Switch
Service: Compatible liquids.
Wetted Materials: Float: Solid polypropylene or 304 SS;Body: Brass or 303 SS;Magnet: Ceramic;External float chamber (tee): None; brass; or 304 SS;Other: Lever arm; pin; spring; etc.: 301 SS; 302 SS; 316 SS.
Temperature Limit: 200°F (93°C).
Pressure Limit: See chart on Catalog page.
Enclosure Rating: Weatherproof; meets NEMA 4X (IP66).
Switch Type: SPST hermetically sealed reed switch. Field adjustable for NO or NC.
Electrical Rating: 1.5 A @ 24 VDC resistive; 0.001 A @ 200 VDC resistive; 0.5 A @ 120 VAC.
Electrical Connection: 18 AWG; 19" (483 mm) long; PVC jacket. Rated 221°F(105°C).
Process Connection: 1" male NPT standard on models without external float chamber. Change 3 in model number to 4 for 1-1/4"; to 5 for 1-1/2"; or 6 for 2". 1" female NPT on models with external float chamber.
Mounting Orientation: Horizontal with index arrow pointing down.
Specific Gravity: See chart on Catalog page.
Switch Enclosure: Nylon.
Weight: Approximately 10 oz (0.283 kg) without external float chamber; 2.32 lb(1.05 kg) with external float chamber.
Agency Approvals: CE; CSA; UR.
