ISDP-009 | Intrinsically safe differential pressure transmitter | range 0-50" w.c. | Dwyer

Intrinsically safe differential pressure transmitter, range 0-50" w.c.

Brand: DwyerSKU: ISDP-009

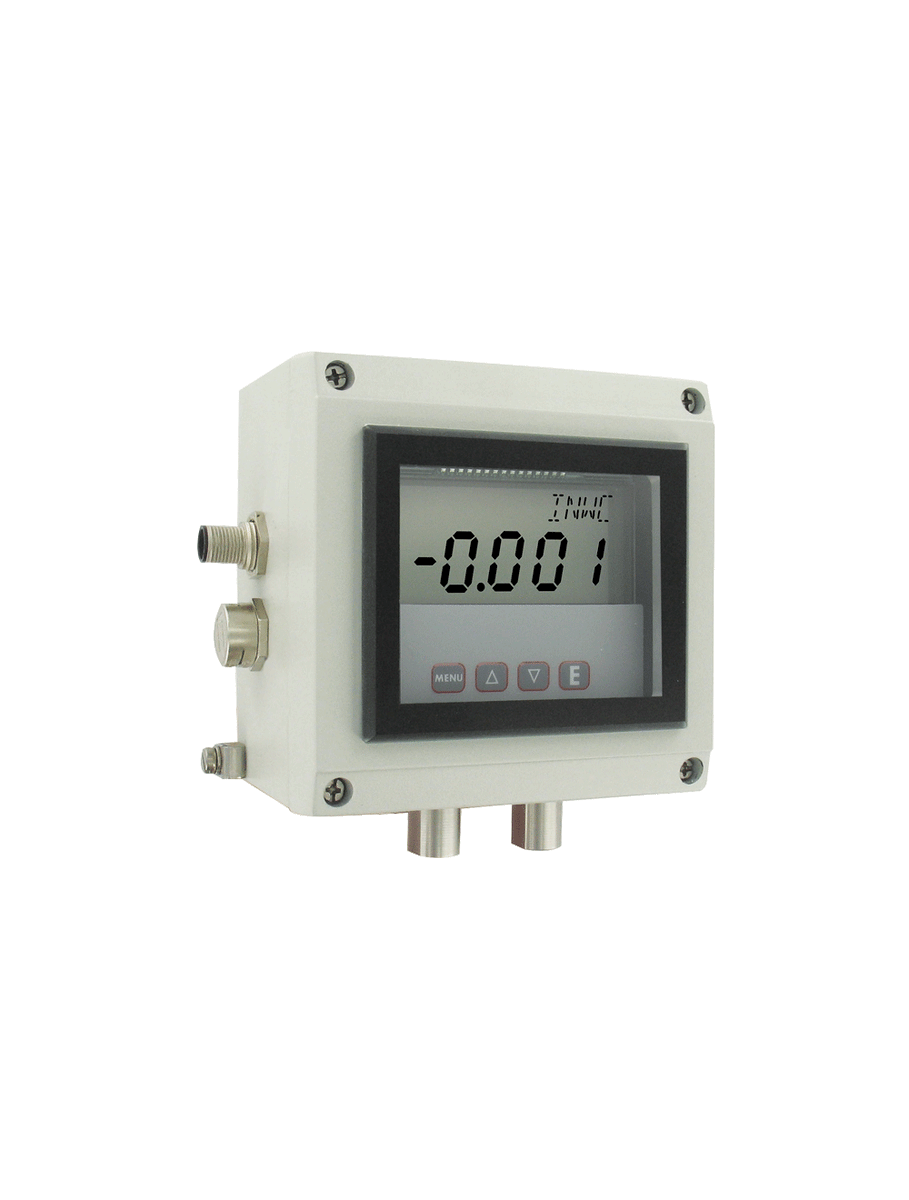

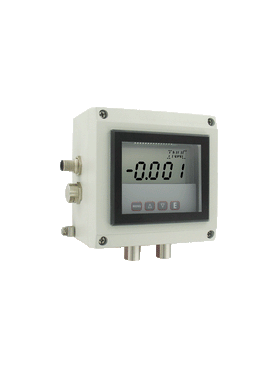

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ISDP-009

Jump to: Overview & Specifications Reviews

Overview Details for ISDP-009

See catalog product page for full listing

Intrinsically safe differential pressure transmitter | range 0-50" w.c.

Series ISDP Intrinsically Safe Differential Pressure Transmitter

For Hazardous Zone Pressure and Flow Applications

The Series ISDP Differential Pressure Transmitter provides a 4-20 mA process output, a robust NEMA 4X enclosure, plus a large LCD display that can be programmed to read in pressure, velocity or flow. The ISDP offers simplified programming via a Menu key that enables the user to select: security level; English or Metric engineering units; pressure, velocity or flow operation, K-factor for use with various Pitot tubes and flow sensors, circular or rectangular duct size for volumetric flow operation plus many more. The Series ISDP Differential Pressure Transmitter is powered on its two wire loop with 10-35 VDC via its integral M-12 four pin male connector. The ISDP provides a 0.5% full scale accuracy on ranges from 0.25" w.c. to 100" w.c. as well as bi-directional models up to 10" w.c. These features make the Series ISDP Differential Pressure Transmitter the ideal instrument for monitoring pressures or air flows in hazardous zones having a Class I Div. I Groups A, B, C, D; Class II Div. I Groups E, F, G; Class III Div. I ratings.

Product Applications

Hazardous zone pressure control applications
Hazardous flow and control applications

NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
Intrinsically safe for use in the specified hazardous locations. Meets specifications where pressure transmission and safety cannot be compromised
Password protected set up menu helps to insure no errors by untrained personnel when accessing the powerful measurement capabilities of this device

Specifications

Series: ISDP Intrinsically Safe Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: ISDP Intrinsically Safe Differential Pressure Transmitter
Service: Air and non-combustible gases.
Wetted Materials: Ranges 5 in w.c. and Greater: glass; PVC; silicon; alumina ceramic; epoxy; RTV; gold; aluminum; stainless steel and nickel; Ranges 1 in w.c. and Lower: stainless steel; silicone; gold; ceramic.
Housing Materials: Aluminum; glass.
Accuracy: ±0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up).
Stability: < ±1% per year.
Pressure Limits: Ranges ≤ 2.5 in w.c.: 2 psi; 5 in w.c.: 5 psi; 10 in w.c.: 5 psi; 25 in w.c.: 5 psi; 50 in w.c.: 5 psi; 100 in w.c.: 9 psi.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
Power Requirements: 10 to 35 VDC.
Output Signal: 4 to 20 mA DC.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (damping set to 1).
Display: 4 digit LCD 0.6" height.
Electrical Connections: M-12 4 PIN Connector.
Process Connections: 1/8" female NPT.
Enclosure Rating: Designed to meet NEMA 4X (IP66).
Mounting Orientation: Mount unit in vertical plane.
Weight: 2 lb 10 oz (1.19 kg).
Agency Approvals: CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive; FM Intrinsically Safe CLI Div I GR: A; B; C; D; CLII Div I GR: E; F; G; CLIII Div I.
