IS626-07-GH-P1-E1-S1 | Intrinsically safe pressure transmitter | 15 psi pressure range | 4-20 mA output | 1/4" NPTM | general purpose housing. | Dwyer
Intrinsically safe pressure transmitter, 15 psi pressure range, 4-20 mA output, 1/4" NPTM, general purpose housing.
Documents and manuals
Dwyer IS626-07-GH-P1-E1-S1 Documents
Overview
Details for IS626-07-GH-P1-E1-S1
Intrinsically safe pressure transmitter | 15 psi pressure range | 4-20 mA output | 1/4" NPTM | general purpose housing.
SERIES IS626 INTRINSICALLY SAFE PRESSURE TRANSMITTER

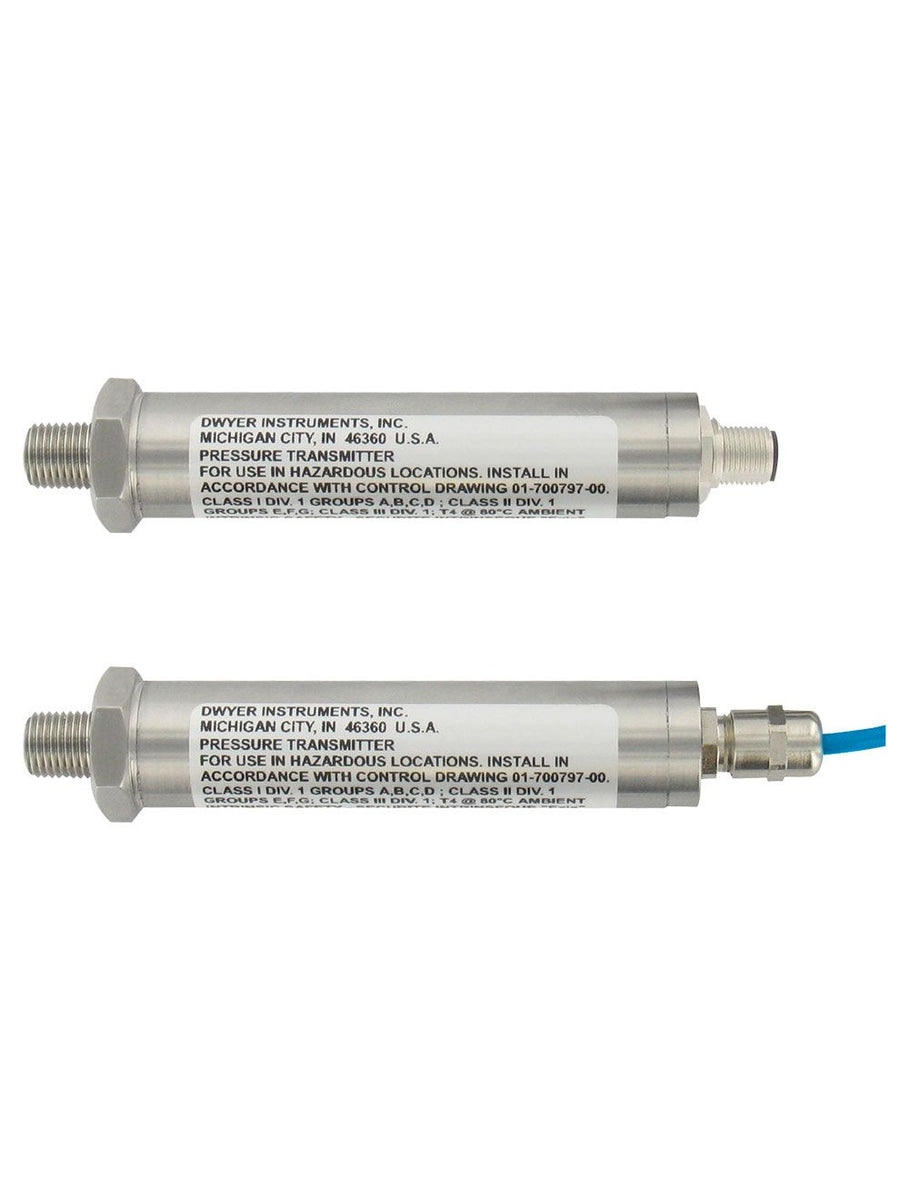

The Dwyer Series IS626 Intrinsically Safe Pressure Transmitter can be used to accurately measure compatible gases and liquids compatible with its 316/316L Stainless Steel wetted parts. Series IS626 full scale accuracy is 0.25%. Designed for industrial environments with a NEMA 4X (IP66) housing, this transmitter resists most effects of shock and vibration. Models are available with a 3' cable or M-12 4 pin connection.
The IS626 is UL listed for use in Hazardous (Classified) Locations. The protection method is by Intrinsic Safety,"ia". It was investigated by UL under UL Standard 913 Sixth Edition and CSA Standard No. 157-92.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Monitoring pressure in hazardous environments
- Process
- Exceptional accuracy for ensuring tight-control and minimizing costly out ofspecification conditions
- NEMA 4X rated enclosure provides protection in harsh environments permittingoutdoor monitoring or in areas where dust and particulate matter exists
- Robust sensor provides shock and vibration resistance insuring stability in controllingpressure for process applications
Specifications
- Series
- IS626 INTRINSICALLY SAFE PRESSURE TRANSMITTER
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- IS626 INTRINSICALLY SAFE PRESSURE TRANSMITTER
- Service
- Compatible gases and liquids.
- Wetted Materials
- Type 316; 316L SS.
- Accuracy
- 0.25% FS.
- Temperature Limit
- 0 to 176°F (-18 to 80°C).
- Compensated Temperature Range
- 0 to 176°F (-18 to 80°C).
- Thermal Effect
- ±0.02% FS/°F (includes zero and span).
- Pressure Limits
- See Catalog page.
- Power Requirements
- 10 to 28 VDC.
- Output Signal
- 4 to 20 mA.
- Response Time
- 50 ms.
- Loop Resistance
- 0 - 900 Ω maximum.
- Current Consumption
- 38 mA (maximum).
- Electrical Connections
- 3 ft. cable or 4-pin M-12 Connector.
- Process Connection
- 1/4" male/female NPT and BSPT.
- Enclosure Rating
- NEMA 4X (IP66).
- Mounting Orientation
- Mount in any position.
- Weight
- 8.9 oz (252 g).
- Agency Approvals
- CE; cULus Intrinsically Safe to UL Standard 913.
- For use in Hazardous (Classified) Locations:Class I Div. 1 Groups A;B;C;D; Class II Div. 1 Groups E;F;G; Class III Div. 1.Temperature Code: T4 @ 80°C ambient.Install in accordance with control drawing 01-700797-00.WARNING: To prevent ignition of flammable or combustible atmospheres; disconnect power before servicing. Use with approved safety barriers using entity evaluation.
