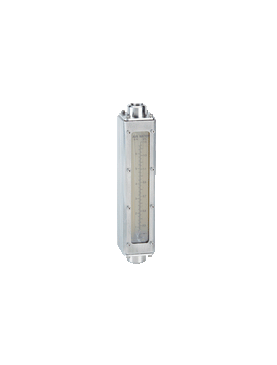

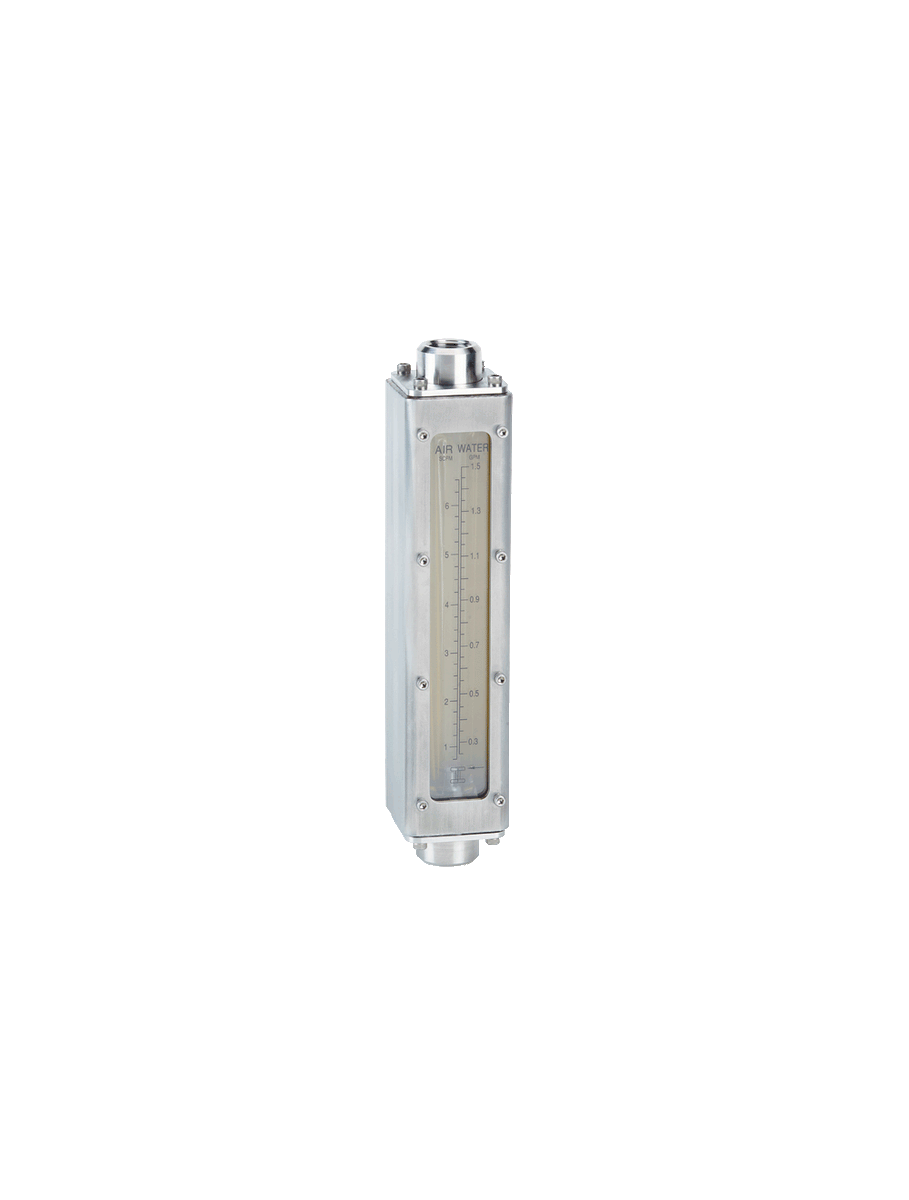

IF2719 | Industrial direct reading flowmeter | max. flow rate 61 GPM (231 LPM) water | 250 SCFM (7080 LPM) air | pressure drop 40" w.c. | 2" female NPT. | Dwyer

Industrial direct reading flowmeter, max. flow rate 61 GPM (231 LPM) water, 250 SCFM (7080 LPM) air, pressure drop 40" w.c., 2" female NPT.

Brand: DwyerSKU: IF2719

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IF2719

Jump to: Overview & Specifications Reviews

Overview Details for IF2719

See catalog product page for full listing

Industrial direct reading flowmeter | max. flow rate 61 GPM (231 LPM) water | 250 SCFM (7080 LPM) air | pressure drop 40" w.c. | 2" female NPT.

Series IF Industrial Direct Reading Flowmeters

Air/Water Direct Reading Scale, 304 SS Protective Shield

The Series IF Industrial Direct Reading Flowmeters are flowmeters that directly measure flow rates up to 116 GPM (439 LPM) for water and 250 SCFM (7080 LPM) for air service.

Note: Calibration data is provided with each unit and is unique to each scale. If you require a calibration certificate for your flowmeter, please see the option under Accessories. (Excludes: IF2714, IF2716 through IF2721).

Product Applications

Gas or liquid metering
Industrial pneumatic or hydraulic systems

Direct read scales with no need for correlation charts saves time
Detachable, clear 3/16" thick polycarbonate front shield provides protection at maximum rated temperature and pressure

Specifications

Series: IF Industrial Direct Reading Flowmeters
Category/Type: Flow
Type: Flowmeters
Series: IF Industrial Direct Reading Flowmeters
Service: Liquids or gases.
Wetted Materials: Flowtube: Borosilicate glass; float; guide rods; float stops; end; Fittings: 316 SS; O-rings: Fluoroelastomer.
Temperature Limit: 200°F (93°C).
Pressure Limit: 200 psi (13.8 bar); 125 psi for tube size 5 & 6.
Accuracy: ±3% of FS.
Repeatability: ±0.5% of FS.
Turn-down Ratio: 10:1.
Scale: Dual scale GPM and SCFM.
Process Connection: See Dimensional Drawing page.
Mounting: Vertical.
Front Shield: Polycarbonate.
Side Panels: 304 SS.
