IF2711 | Industrial direct reading flowmeter | max. flow rate 11 GPM (40 LPM) water | 47.5 SCFM (1400 LPM) air | pressure drop 13" w.c. | 1" female NPT. | Dwyer
Industrial direct reading flowmeter, max. flow rate 11 GPM (40 LPM) water, 47.5 SCFM (1400 LPM) air, pressure drop 13" w.c., 1" female NPT.

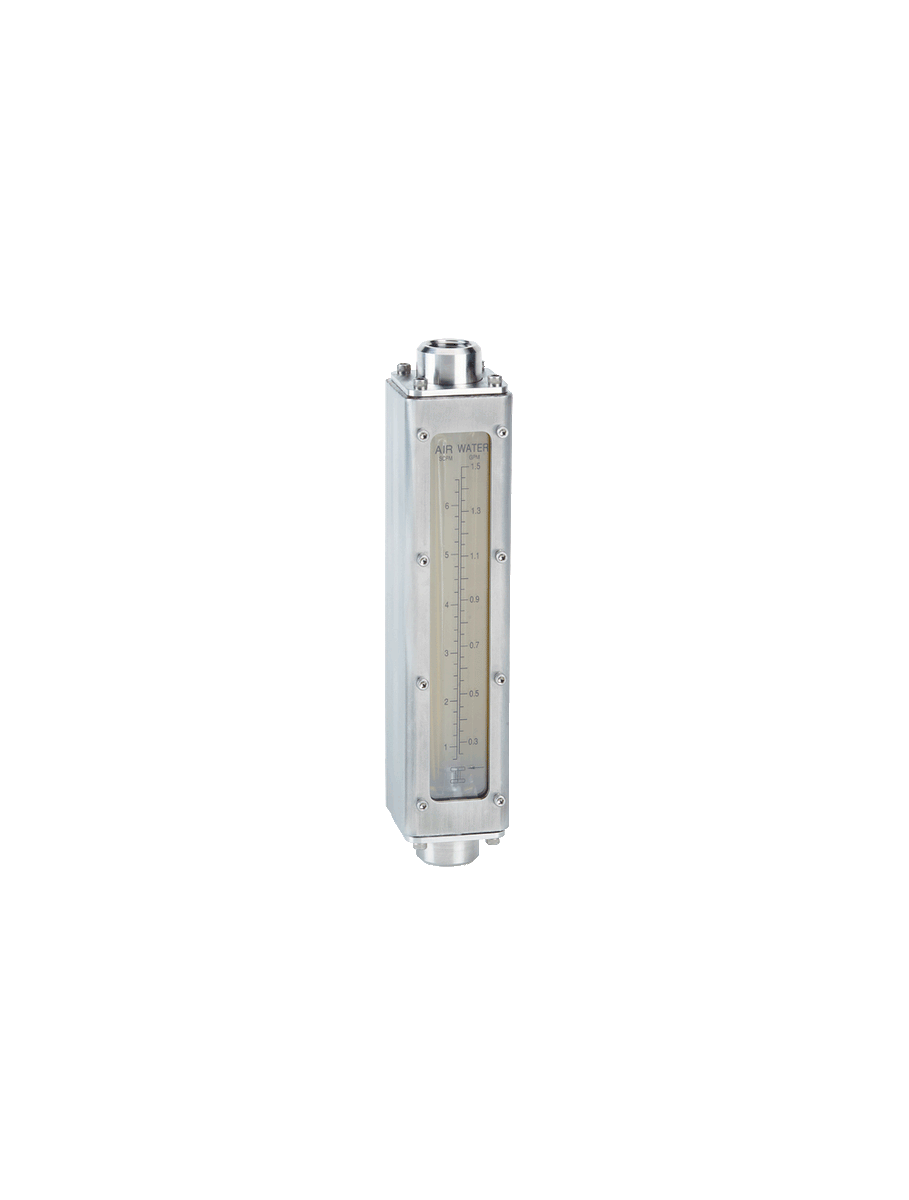

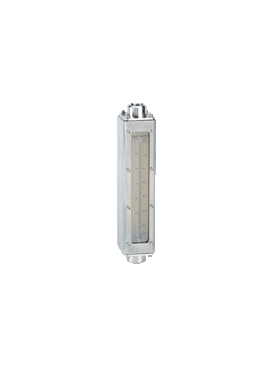

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IF2711
Documents and manuals
Dwyer IF2711 Documents
Overview
Details for IF2711
See catalog product page for full listing
Industrial direct reading flowmeter | max. flow rate 11 GPM (40 LPM) water | 47.5 SCFM (1400 LPM) air | pressure drop 13" w.c. | 1" female NPT.
Series IF Industrial Direct Reading Flowmeters
Air/Water Direct Reading Scale, 304 SS Protective Shield
The Series IF Industrial Direct Reading Flowmeters are flowmeters that directly measure flow rates up to 116 GPM (439 LPM) for water and 250 SCFM (7080 LPM) for air service.
Note: Calibration data is provided with each unit and is unique to each scale. If you require a calibration certificate for your flowmeter, please see the option under Accessories. (Excludes: IF2714, IF2716 through IF2721).
Product Applications
- Gas or liquid metering
- Industrial pneumatic or hydraulic systems
- Direct read scales with no need for correlation charts saves time
- Detachable, clear 3/16" thick polycarbonate front shield provides protection at maximum rated temperature and pressure
Specifications
- Series
- IF Industrial Direct Reading Flowmeters
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- IF Industrial Direct Reading Flowmeters
- Service
- Liquids or gases.
- Wetted Materials
- Flowtube: Borosilicate glass; float; guide rods; float stops; end; Fittings: 316 SS; O-rings: Fluoroelastomer.
- Temperature Limit
- 200°F (93°C).
- Pressure Limit
- 200 psi (13.8 bar); 125 psi for tube size 5 & 6.
- Accuracy
- ±3% of FS.
- Repeatability
- ±0.5% of FS.
- Turn-down Ratio
- 10:1.
- Scale
- Dual scale GPM and SCFM.
- Process Connection
- See Dimensional Drawing page.
- Mounting
- Vertical.
- Front Shield
- Polycarbonate.
- Side Panels
- 304 SS.
