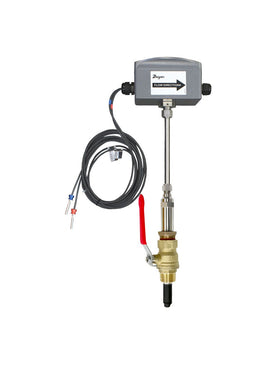

IEFB-HB-PGT10LCDCOM | Insertion Electromagnetic energy system with LCD display | high accuracy 4-10" (100-250 MM) pipe; 1% of reading | 1" Male BSPT process connection | Dwyer
Insertion Electromagnetic energy system with LCD display, high accuracy 4-10" (100-250 MM) pipe; 1% of reading, 1" Male BSPT process connections, PG 16 gland, (2) 10´ (3 M) PT temperature sensors, BACnet/Modbus® communication output
Documents and manuals
Dwyer IEFB-HB-PGT10LCDCOM Documents
Overview
Details for IEFB-HB-PGT10LCDCOM
Insertion Electromagnetic energy system with LCD display | high accuracy 4-10" (100-250 MM) pipe; 1% of reading | 1" Male BSPT process connection
Series IEFB Insertion Thermal Energy Meter
The Series IEFB is a field-adjustable insertion thermal energy meter that useselectromagnetic technology to accurately and reliably measure fluid velocity andenergy consumption. The high accuracy IEFB is adjustable to fit pipe sizes from 4to 10" (100 to 250 mm), while the standard accuracy IEFB fits pipe sizes 4 to 36"(100 to 900 mm). The IEFB incorporates a temperature meter and a calculator into asingle unit. The LCD display provides clear readings of the meter’s values, includingtemperature and energy consumption, making it ideal for installation on chillers,boilers, and other heating and cooling applications. The high measuring accuracy andlong lifetime keeps annual operating costs at a minimum. In addition, it offers severaloutput options, including selectable BACnet MS/TP or Modbus® RTU communicationsprotocol over 2-wire RS-485 and standard analog, frequency, and alarm outputs.
Product Applications
- Monitoring chiller cooling output performance
- Industrial boiler heating performance
- Energy efficiency monitoring
- Optimization of heat energy performance
- Commercial and residential heat energy consumption and metering
- District heating and cooling monitoring
- Energy cost allocation monitoring
- Save time and reduce installation costs with flow, temperature sensors and calculator delivered in one preprogrammed, complete package.
- Maintain system energy efficiency with high performance accuracy that is maintained through changes in temperature, density or viscosity per universally accepted standard
- Meet application requirements with field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP), which accommodate a variety of application configurations with one model through multiple display configurations i.e. pipe size, pipe material, liquid type, analog output, pulse/frequency output, alarm outputs, communication outputs, damping, and calibration factor
- Quick and easy ordering and set up with Setup Wizard and installation tool that are simple to use and allow for precise installation
- Save time with accessory setup kit A-IEF-KIT that ensures exact installation application depth with included thickness gage and measuring tape
- Reduced costs, long product life, and minimal maintenance requirements with no moving parts to wear or break and electrodes that discourage fouling
- Minimize installation costs with isolation valve accessory options to allow for installation in operational systems via hot-tap kit or easy removal without system downtime
- Required documents included with NIST traceable pass/fail verification certificate included standard for Carbon Steel Schedule 40 pipes sized 4" (102 mm), 6" (150 mm), 8" (200 mm)
Specifications
- Series
- IEFB Insertion Thermal Energy Meter
- Category/Type
- Flow
- Type
- Flow Transmitters
- Series
- IEFB Insertion Thermal Energy Meter
