Documents: HNV-SSS35B

Series HNV Catalog Page More Info

HNV-SSS35B | 3/4" needle valve | female x female. | Dwyer

3/4" needle valve, female x female.

Brand: DwyerSKU: HNV-SSS35B

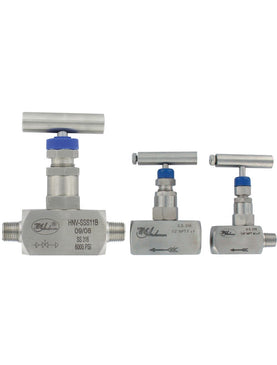

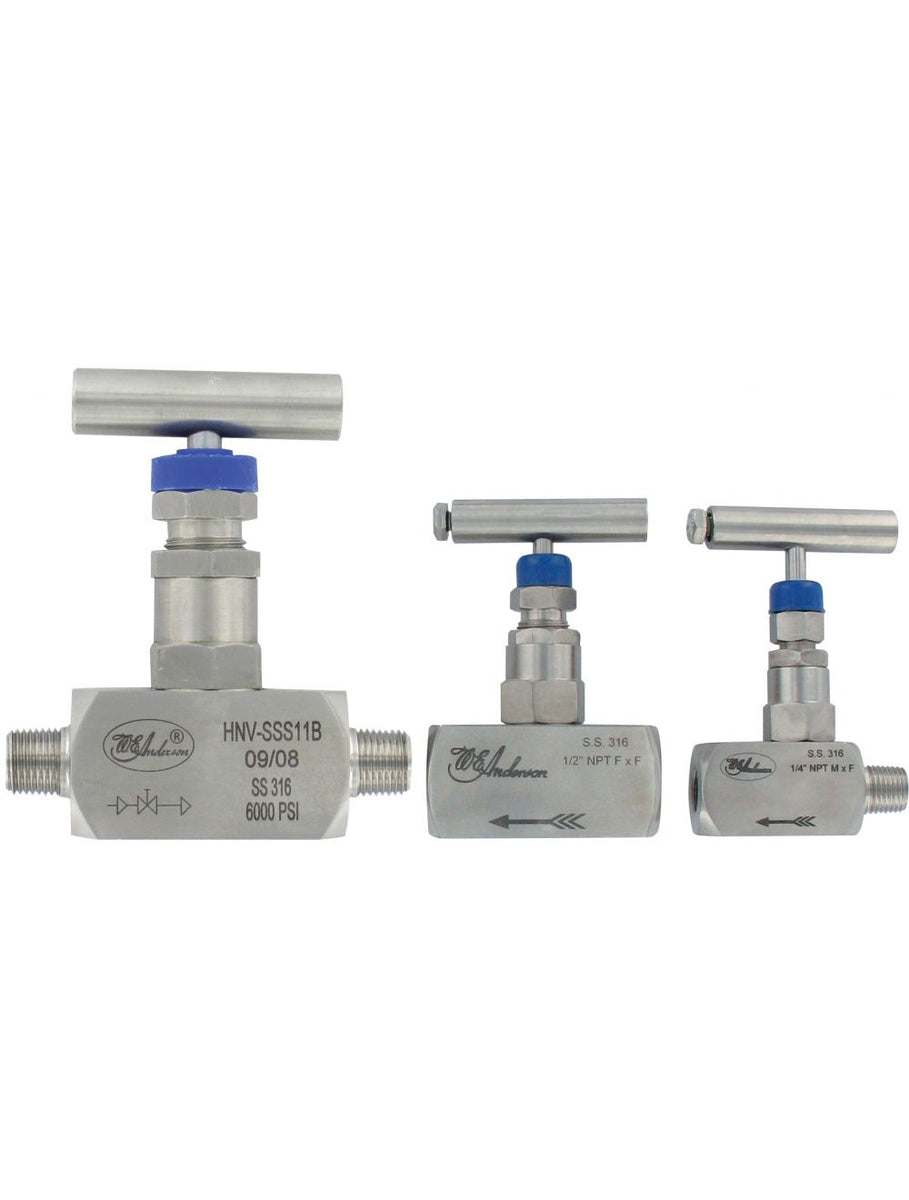

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HNV-SSS35B

Jump to: Overview & Specifications Reviews

Overview Details for HNV-SSS35B

See catalog product page for full listing

3/4" needle valve | female x female.

Series HNV Needle Valve 1-Valve Block Manifolds

For Use with Gas and Liquids, Pressures Up to 6000 psi

Series HNV Block Manifolds is a barstock style needle valve that is designed for isolating instruments from liquids or gases. The valve series features fine threading and large seat area to ensure tight shutoff. Wetted materials are 316 SS and PTFE making these ideal for use with corrosives. The HNV has been tested to assure vibration and thermal stability. Body includes a lock pin to prevent accidental bonnet disengagement. The HNV is available in male x female and female x female connections from 1/8" to 1". Tee handle is constructed of 316 SS and allows low torque operation.

Product Applications

Instruments line shut off, instrument isolation, drain valve, specially designed for gas service and liquid applications

Specifications

Series: HNV Needle Valve 1-Valve Block Manifolds
Category/Type: Valves
Type: Valves
Valve Type: Needle
Series: HNV Needle Valve 1-Valve Block Manifolds
Service: Gases and liquids compatible with wetted materials.
End Connections: NPT.
Wetted Materials: 316 SS and PTFE packing.
Pressure Limits: 6000 psi (431 bar) @ 200°F (93°C). 4000 psi (276 bar) @ 464°F (240°C).
Temperature Limits: 464°F (240°C).
Other Materials: Handle: 316 SS.
