HBV-M02 | 3/8" 3-piece alloy-c ball valve | Cv 8. | Dwyer

3/8" 3-piece alloy-c ball valve, Cv 8.

Brand: DwyerSKU: HBV-M02

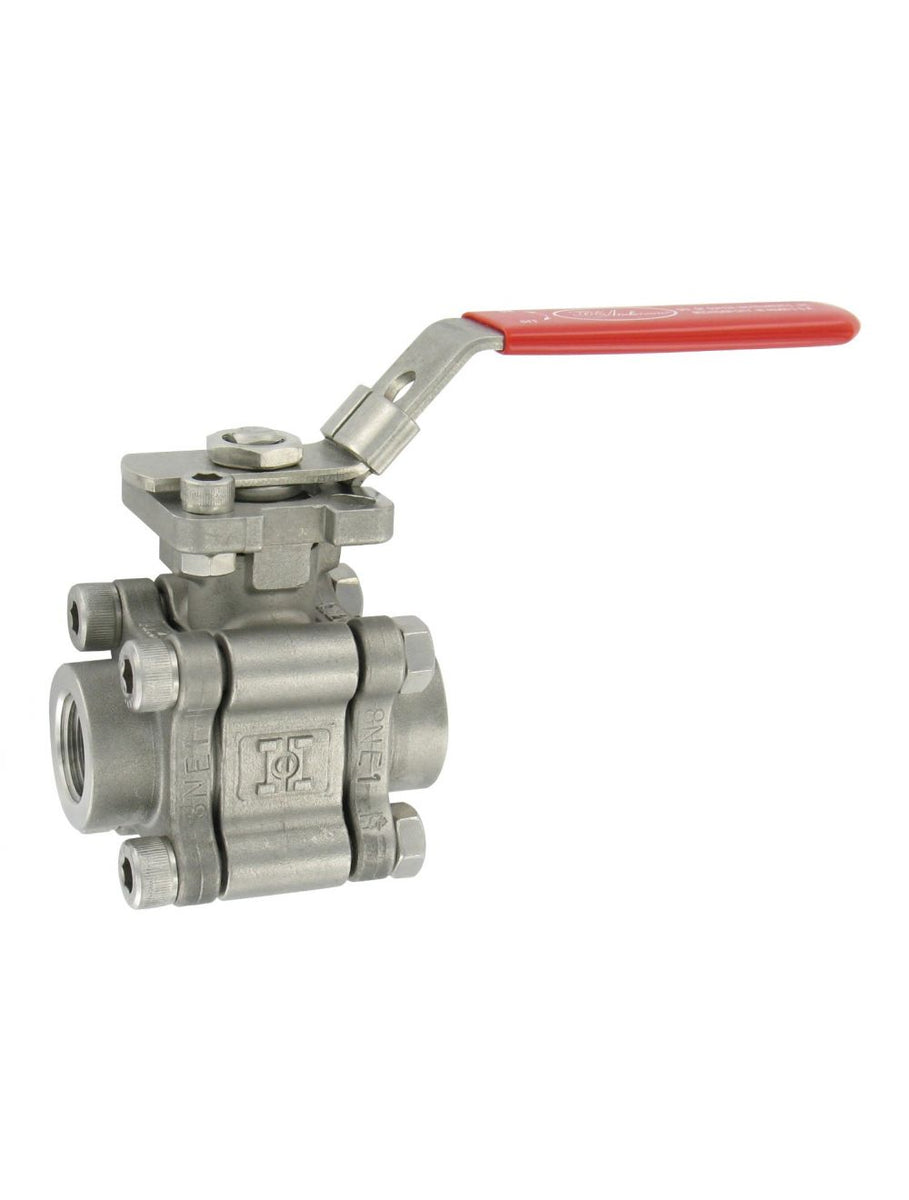

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HBV-M02

Jump to: Overview & Specifications Reviews

Overview Details for HBV-M02

See catalog product page for full listing

3/8" 3-piece alloy-c ball valve | Cv 8.

SERIES HBV HASTELLOY® C BALL VALVE

Corrosion Resistant, Full Port

Series HBV Hastelloy® C Ball Valve incorporates several innovative design features for improved process performance. The ISO 5211 mounting pad facilitates direct mounting of pneumatic and electric actuators. In combination with our high-cycle, live-loaded stem packing system, the HBV series ball valve is an ideal choice for all your automation requirements.

ISO 5211 direct mounting pad
Blow-out-proof stem
Lockout capability
High-cycle, live loaded stem packing

Specifications

Series: HBV HASTELLOY® C BALL VALVE
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: HBV HASTELLOY® C BALL VALVE
Service: Gases; steam and liquids compatible with wetted materials.
End Connections: Female NPT.
Pressure Limits: 2000 psi (137.9 bar); ASME B16.34 Class 900 (see Catalog page).
Temperature Limit: -20 to 425°F (-29 to 218°C).
Wetted Materials: Valve Body; End Caps; Ball and Stem: ASTM 494 Type CW12MW (Hastelloy® C); Seat; Body Seal; and Stem Packing: TFM.
Other Materials: Body Bolt; Gland Washer; Stem Nut; Space Washer; and Handle: 304 SS; Handle Cover: Vinyl.
