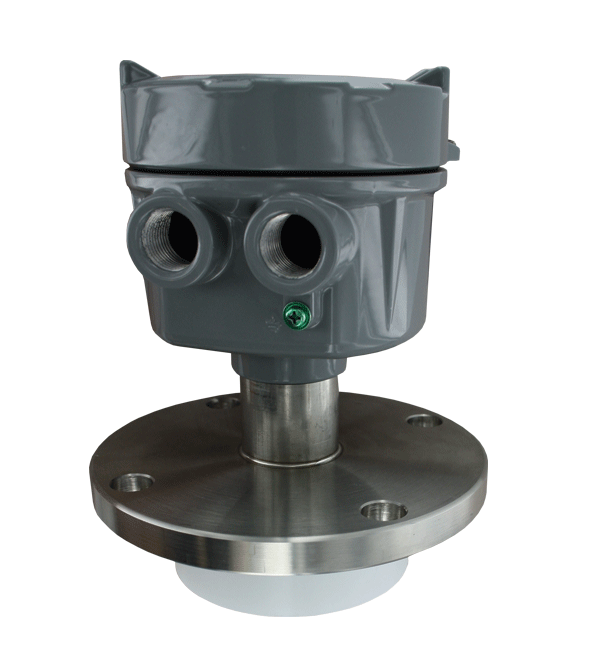

FCLS-01 | Flush capacitance level switch. | Dwyer

Flush capacitance level switch.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FCLS-01

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer FCLS-01 Documents

Instruction Manual Model FCLS Catalog Page More Info

Overview

Details for FCLS-01

See catalog product page for full listing

Flush capacitance level switch.

Model FCLS Flush Capacitance Level Switch

Maintenance Free, Economical, Flush Mounting

The Model FCLS Flush Capacitance Level Switch is ideal for level measurement of liquids and bulk solids to trigger an alarm or close a filler inlet. No probe design allows for installation where space is constrained or where material flow or material build up would damage a probe. With no moving parts, this level switch assures no jams, no wear, nothing to break, and no maintenance. Comes standard with IP65 housing with a maximum pressure limit of 285 psi (19.7 bar).

Specifications

Service: Liquids; powder; and bulkmaterials compatible with wettedmaterials.
Wetted Materials: 304 SS.
Insulated Materials: PTFE.
Temperature Limits: Ambient: -4 to140°F (-20 to 60°C); Process: -4 to176°F (-20 to 80°C).
Pressure Limit: 285 psi (19.7 bar).
Power Requirements: 110 or 220 VAC.
Power Consumption: 2 W.
Enclosure: Aluminum; painted.
Enclosure Rating: IP65.
Switch Type: SPDT.
Electrical Rating: 3 A @ 250 VAC.
Electrical Connections: Screw terminals.
Conduit Connection: 2 x 1/2" female NPT.
Process Connection: 2.5" - x 5 kg/cm2 JIS flange.
Mounting Orientation: Side mount.
Fail Safe: Selectable fail high or fail low.
Adjustable Sensitivity: 1 to 20 pF.
Time Delay: 0 to 6 s.
Weight: 7.1 lb (3.2 kg).
