FBLT-2SC-IVEF-30-50 | Submersible level transmitter | range 30 ft wc | 50 ft ETFE cable | Dwyer

Submersible level transmitter, range 30 ft wc, 50 ft ETFE cable

Brand: DwyerSKU: FBLT-2SC-IVEF-30-50

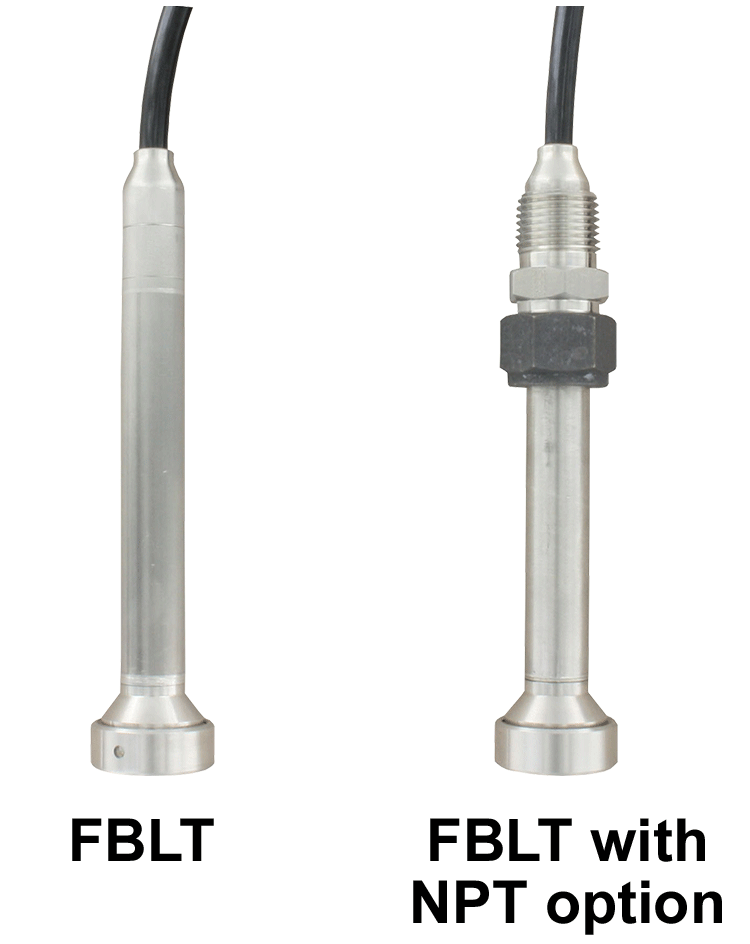

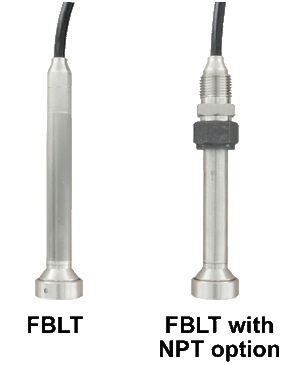

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FBLT-2SC-IVEF-30-50

Jump to: Overview & Specifications Reviews

Overview Details for FBLT-2SC-IVEF-30-50

See catalog product page for full listing

Submersible level transmitter | range 30 ft wc | 50 ft ETFE cable

SERIES FBLT FLUSH TIP SUBMERSIBLE LEVEL TRANSMITTER

Perfect for Sludge and Slurries, Lightning Protected, ±0.25% Accuracy

The Series FBLT Submersible Level Transmitter is designed with a flushdiaphragm tip that will not clog in harsh applications such as sewage lift stations.Narrow body design allows the FBLT to fit into stilling wells and narrow installations.The FBLT features a robust FKM fluoroelastomer diaphragm that is PTFE coated fora stick resistant surface that will hold up in aggressive fluids. The diaphragm cavityis filled with a gel that will not leak out versus oil or grease that our competitors use.Body is constructed of 316 SS and the cable is either polyurethane or ETFE for morecorrosive applications.

The unit measures the height of liquid above the position that it is mounted in a tankor pit in reference to atmospheric pressure. Ventilation tube in the cable automaticallycompensates for changes in atmospheric pressure above the fluid. The vent isprotected with a maintenance free filter, eliminating particulate or water droplets fromentering the transmitter. For extra protection against humidity, we offer the A-297desiccant filter that can be attached to the vent tube.

The FBLT incorporates lighting and surge protection (not guaranteed or covered bywarrantee) to stand up in harsh applications. Optional NPT connection allows theunit to be rigidly installed in a pipe/conduit, or to attach our A-625 hanging loop forattaching a chain for pulling out of the installation.

Product Applications

Sewage lift stations, industrial slurries, industrial sumps, landfill leachate (non-hazardous only), reservoirs,sludge pits, oil tanks, etc.

Long operating life with a non-clog flush diaphragm tip for harsh applications
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Suits harsh environments with choice of polyether polyurethane or ETFE cable materials for excellent chemical compatibility
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty)
Meet application requirements with narrow body design allows the FBLT to fit into stilling wells and narrow installations
Unit holds up in aggressive fluids with robust FKM fluoroelastomer diaphragm that is PTFE coated for a stick-resistant surface
Avoid product leaks typically cause by oil or grease with diaphragm cavity that is filled with gel
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use the A-625 hanging loop to attach a chain to remove from the installation

Specifications

Series: FBLT FLUSH TIP SUBMERSIBLE LEVEL TRANSMITTER
Category/Type: Level
Type: Level Transmitters
Series: FBLT FLUSH TIP SUBMERSIBLE LEVEL TRANSMITTER
Service: Compatible liquids.
Wetted Materials: Body: 316 SS; Cable: Polyether polyurethane or ETFE; Diaphragm: PTFE coated FKM fluoroelastomer; Label: Polyethylene polyamid.
Accuracy: ±0.25% FS (10' w.c. range is ±0.30% FS).
Temperature Limits: -4 to 176°F (-20 to 80°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effect: ±0.0075%/°F (±0.0135%/°C).
Pressure Limit: 2x range.
Power Requirements: 10 to 33 VDC.
Output Signal: 4 to 20 mA DC 2-wire.
Response Time: < 50 ms.
Max Loop Resistance: 1000 Ω @ 30 VDC.
Electrical Connections: Wire pigtail.
Mounting Connection: Suspended below point being monitored.
Electrical Protection: Surge/lightning protected per EN61000-4-5; Class 5.
Weight: Body: 0.3 lb (0.136 kg); Cable: 0.037 lb (0.017 kg) per foot.
Agency Approvals: CE.
