F7-LL | Vertical level switch | polysulfone float | Buna-N stem | temperature limit 180°F (82°C) | pressure limit 50 psig (3 bar) | electrical rating 20 VA: 0.08A @ 240 VAC | 1/8" male NPT mounting | Dwyer
Vertical level switch, polysulfone float, Buna-N stem, temperature limit 180°F (82°C), pressure limit 50 psig (3 bar), electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 72" (182 cm) wire leads, 1/8" male NPT mounting, weight 2 oz (58 g).
Documents and manuals
Dwyer F7-LL Documents
Overview
Details for F7-LL
Vertical level switch | polysulfone float | Buna-N stem | temperature limit 180°F (82°C) | pressure limit 50 psig (3 bar) | electrical rating 20 VA: 0.08A @ 240 VAC | 1/8" male NPT mounting

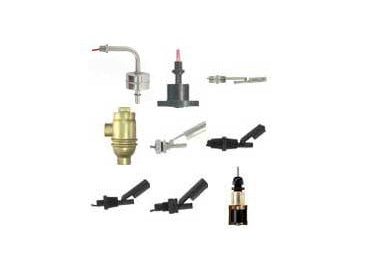

Series F6 & F7 Level Switches - Horizontal/Specialty
The Series F6 & F7 Horizontal Float Level Switches are designed to mount through the walls of tanks and other vessels. Internally mounted models F6-HPS-11, F6-MHS and F7-SS6 are secured to the wall of the tank or vessel from the inside while model F6-HPS-21 is mounted from the outside (externally). Models F7-HSS and F6-MHS2 can be installed internally or externally.
The Series F6 & F7 Specialty Float Level Switches are designed for unique applications. Model F7-SS5B/BNC can be used with viscous liquids or liquids with suspended metal particles. Use model F7-LL for low level detection (≥ 5/8"). The non-intrusive bottle style F7-EB mounts completely outside the tank at the actuation level. Suspend model F7-WBB in stand pipes or sumps for leak detection or drop into wells for ground-water monitoring.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Water level monitoring
- Oil level control
- Chemical level indication
- Sumps
- Stand pipes
- Tank level control
- Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float arm and can be easily adapted to open or close a circuit on rising or falling levels
Specifications
- Series
- F6 & F7 Level Switches - Horizontal/Specialty
- Category/Type
- Level
- Type
- Level Switches
- Series
- F6 & F7 Level Switches - Horizontal/Specialty
