Documents: F7-BT

F6 F7 F7-BB F7-PS F7-PVC F7-ST713 F7-ST714 F7-T1 Series F6 & F7 Vertical Catalog Page More Info

F7-BT | Vertical level switch | Buna-N & epoxy float | polybutylene terephthalate stem | temperature limit 220°F (105°C) | pressure limit 150 psig (10 bar) | 1/8" male NPT mounting | UL listed | Dwyer

Vertical level switch, Buna-N & epoxy float, polybutylene terephthalate stem, temperature limit 220°F (105°C), pressure limit 150 psig (10 bar), 0.45 min. specific gravity, electrical rating 30 VA: 0.14A @ 220 VAC, 22 AWG 24" (61 cm) wire leads, 1/8" male NPT mounting, UL listed, weight 0.7 oz (20 g).

Brand: DwyerSKU: F7-BT

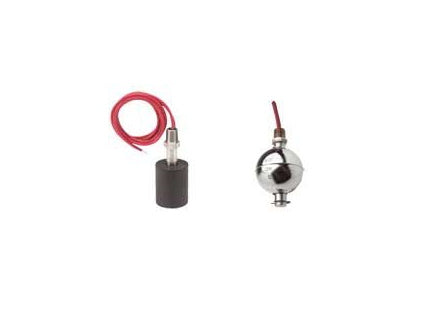

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F7-BT

Jump to: Overview & Specifications Reviews

Overview Details for F7-BT

See catalog product page for full listing

Series F6 & F7 Level Switches – Vertical

Low Cost, Reliable and Compact, Hermetically Sealed Contacts

The Series F6 & F7 Vertical Level Switches are designed to be mounted at themaximum or minimum level point to provide level indication and control. Models areshipped with normally open switch contacts which close as the float rises toward themounting threads.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Water level monitoring
Oil level control
Chemical level indication
Sumps
Stand pipes
Tank level control
High viscosity liquids

Combine low cost and reliability with fast, simple installation
Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels
Easily reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem
Vertical models mount internally, oriented within 30° of vertical, or select optional fittings for external mounting
Switch ratings are suitable for many solid state control systems and monitors or alarms
Simple relay interfaces can be used for higher current applications
