EDAW-N1E1-06T0 | Electronic pressure switch | range 0-300 psi | 1/4
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: DwyerSKU: EDAW-N1E1-06T0

Web Price:

$541.07
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
The product is not cancelable or returnable unless found defective
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

EDAW-N1E1-06T0 | Electronic pressure switch | range 0-300 psi | 1/4" male NPT bottom connection | 316L SS | 2 SPDT relays. | Dwyer

Electronic pressure switch, range 0-300 psi, 1/4" male NPT bottom connection, 316L SS, 2 SPDT relays.

Dwyer | EDAW-N1E1-06T0
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EDAW-N1E1-06T0

Documents and manuals

Overview

Details for EDAW-N1E1-06T0

See catalog product page for full listing

Electronic pressure switch | range 0-300 psi | 1/4" male NPT bottom connection | 316L SS | 2 SPDT relays.

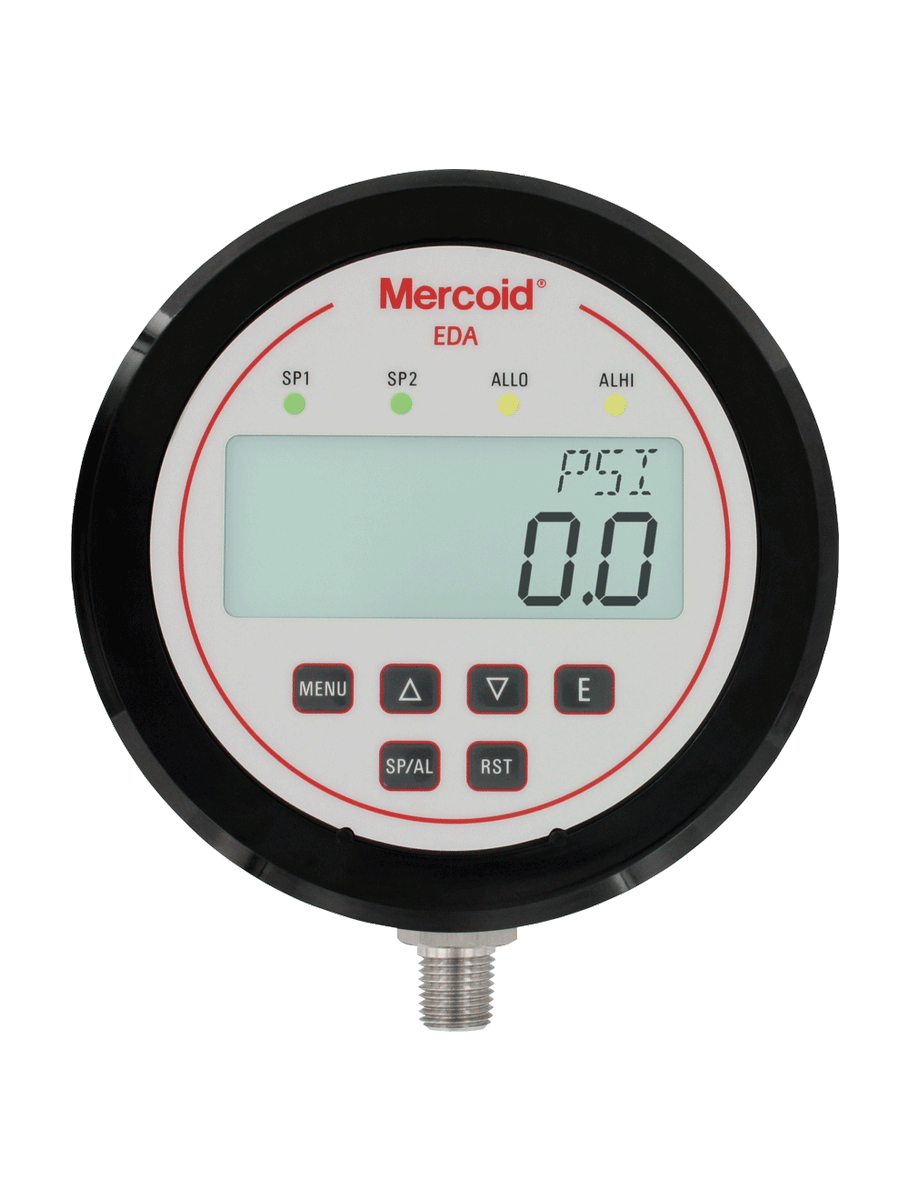

SERIES EDA ELECTRONIC PRESSURE CONTROLLER

2 Switches, Indicating Gage, and Transmitter in One Package

Series EDA Electronic Pressure Control is an extremely versatile compact package that can replace a separate gage, two switches, and a transmitter in a system saving money, installation time, and panel space. The EDA incorporates two SPDT relays that have the on and off points fully adjustable over the range for control or alarm use. Front face has LED indicators for switch status and a large backlight two-line display showing process value and indication units. Programming is easy with simple menu structure, two-line display, and external programming buttons. Weatherproof housing is ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability. Features include zero set, adjustable dampening, menu lock out, peak and valley indication, removable terminal blocks, adjustable time delay, and scalable transmitter output.

NIST CALIBRATION available in Product Configurator.

Product Applications

  • Process control
  • Compressor control
  • Filter status
  • Duct or building static pressure
  • Damper and fan control
  • Display Units: psi, kg/cm², bar, in Hg, ft w.c., kPa, MPa, %FS, in w.c., mbar, cm w.c., mm Hg, or oz/in² (choices depend on range).
  • Test Mode: Simulates input over the range without pressuring to easily test switches and transmitter output feature.
  • Fail-safe: For sensor failure, over pressure, high temperature limit, low temperature limit, or keypad short. User chooses if relay is de-energized, energized, or no action. With transmitter option, user chooses an output of 3.6 mA22 mA, or no action.
  • Alternation: Selectable alternation of set points between the relays for even wear on duplex pump applications.
  • Versatile Compact Package: Can replace a separate gage, two switches, and a transmitter in a system saving, money, installation time, and panel space.
  • Fully Programmable: To meet simple or complex application needs.
  • Weatherproof Housing: Ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability.

Specifications

Series
EDA ELECTRONIC PRESSURE CONTROLLER
Category/Type
Pressure
Type
Single Pressure
Series
EDA ELECTRONIC PRESSURE CONTROLLER
Service
Compatible liquids and gases.
Wetted Materials
316L SS.
Housing
Polycarbonate.
Accuracy
±1% of FS including linearity; hysteresis; and repeatability (indicator and transmitter).
Stability
< ±2% of FS per year.
Pressure Limits
1.5 x range.
Temperature Limits
Ambient: 20 to 140°F (-6.6 to 60°C); Process: 0 to 176°F (-18 to 80°C).
Compensated Temperature Limits
32 to 122°F (0 to 50°C).
Thermal Effect
±0.05% of F.S./°F.
Display
4-digit backlit LCD (Digits: 0.60"H x 0.33"W).
Power Requirements
12-28 VDC/AC50/60 Hz. (Can work at 8 VDC for 45 s).For T5 option: 14-30 VDC/AC 50/60 Hz.For -HV option: 120-240 VAC.
Power Consumption
12-28 VDC/VAC:2.5 watts; 120-240 VAC: 4.5 watts.
Electrical Connections
Removable terminal blocks with two 1/2" female NPT conduit connections.
Enclosure Rating
Meets NEMA 4X (IP65).
Warm Up Time
<10 seconds.
Mounting Orientation
Any position.
Weight
1.18 lbs (535 g).
Agency Approvals
CE; UL.
SWITCH SPECIFICATIONS
Switch Type
2 SPDT relays.
Electrical Rating
5 A @ 120/240VAC; 1 A @ 30 VDC.
Repeatability
±1% of FS (switching only).
Set Points
Adjustable 0-100% of FS.
Switch Indication
External LED for each relay on the front panel.
Switch Reset
Manual or Automatic.
TRANSMITTER SPECIFICATIONS
Output Signal
4-20 mA; 1-6 VDC; 1-5 VDC; 0-5 VDC; or 0-10 VDC (direct or reverse output selection).
Minimum Excitation
14 VDC.
Zero and Span Adjustments
Menu scalable within the range.
