EBV-1 | Electric bin vibrator | 130 lb centrifugal force. | Dwyer
Electric bin vibrator, 130 lb centrifugal force.
Documents and manuals
Dwyer EBV-1 Documents
Overview
Details for EBV-1
Electric bin vibrator | 130 lb centrifugal force.

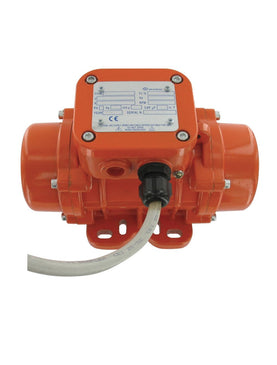

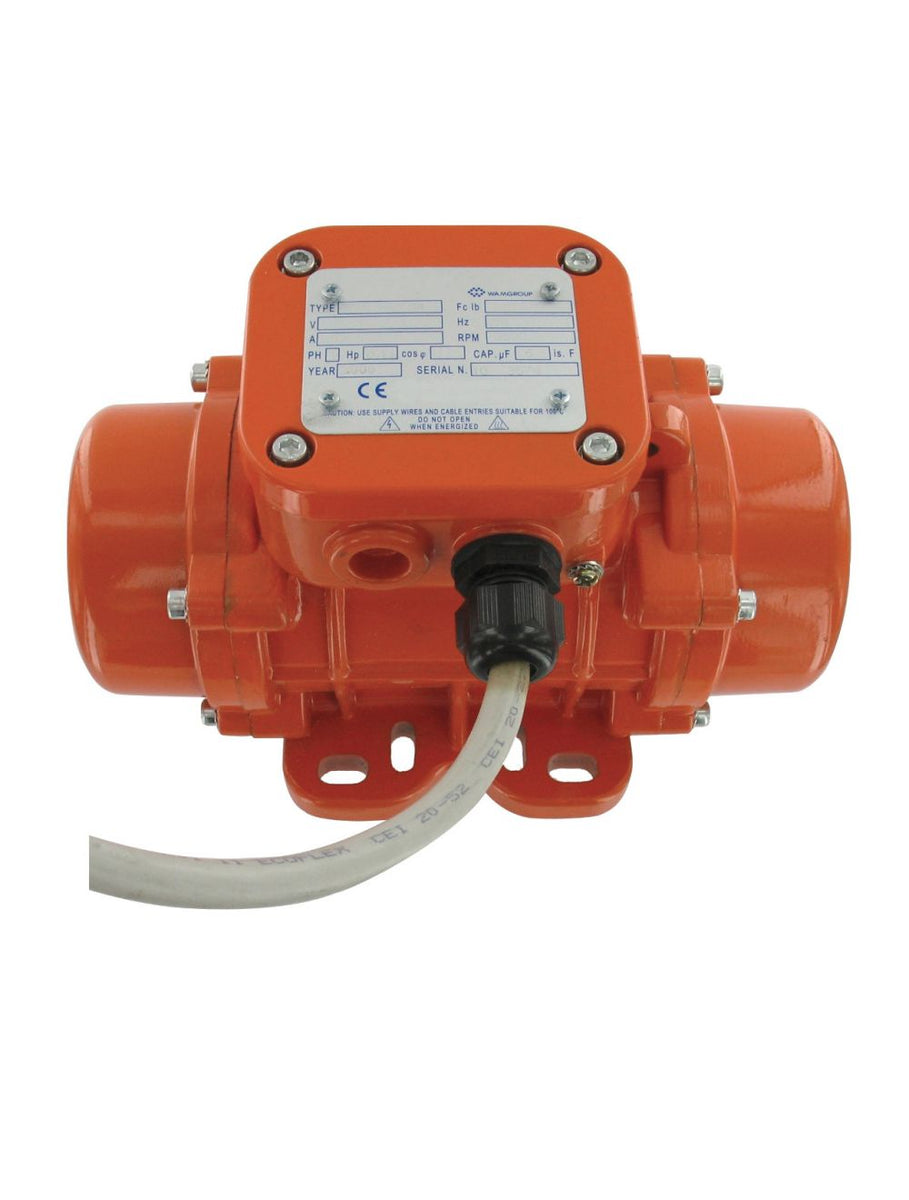

Series EBV Electric Bin Vibrator
The Series EBV Electric Bin Vibrator incorporates adjustable force features without creating irritating noise. The low amperage draw at 120V reduces power consumption and makes the vibrators usable in any application. The EBV eliminates drawbacks associated with non-adjustable constant force units. The conventional fix force units are sized with narrow operating limits and may not move material from bins or pack material in containers if the moisture content changes. The adjustable force feature increases application flexibility; reducing equipment downtime and labor expense. The EBV is capable of running continuously at 100% force output without overheating or mechanical damage.
Product Applications
- Bin Vents
- Bag Houses
- Dust Collectors
- NEMA 4X (IP66) aluminum housing
- Silent operation at 20 dB
- Centrifugal force can be adjusted as needed
Specifications
- Series
- EBV Electric Bin Vibrator
- Category/Type
- Level
- Type
- Bin Vibrators
- Series
- EBV Electric Bin Vibrator
- Power Requirements
- 120 VAC (60 hz).
- Power Consumption
- See Catalog Page.
- Temperature Limits
- -4 to 104°F (-20 to 40°C).
- Enclosure
- Aluminum.
- Enclosure Rating
- NEMA 4X (IP66).
- Noise Level
- 20 dB.
- Electrical Connection
- Electrical Junction Box.
- Rotational Speed
- 3600 RPM.
- Weight
- See Catalog Page.
- Approvals
- CE.
