Documents: DTFO-3S-25O

Service Manual Series DTFO Catalog Page More Info

DTFO-3S-25O | Range 0-25 gpm oil | 1" npt | ss body | Dwyer

Range 0-25 gpm oil, 1" npt, ss body

Brand: DwyerSKU: DTFO-3S-25O

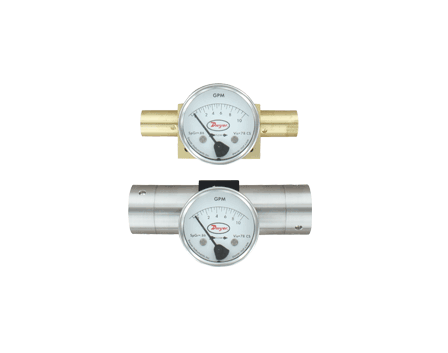

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DTFO-3S-25O

Jump to: Overview & Specifications Reviews

Overview Details for DTFO-3S-25O

See catalog product page for full listing

Range 0-25 gpm oil | 1" npt | ss body

Series DTFO Variable-Area Flowmeter for Oil

Brass & 316 SS Body, 2% FS Accuracy

The Series DTFO Variable-Area Flowmeter for Liquids measures oil rates with ±2% of full-scale accuracy at an affordable price. Durable metal construction ensures great reliability and the strength to withstand system pressures of up to 3000 psig (200 bar). Available in 1/4", 1/2" and 1" connections for a wide variety of applications. Comes calibrated for horizontal in line mounting.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Monitoring pressure drop across filters or strainers
Flow scale based on differential pressure
Liquid level given pressure differential between bottom and top of tank
Hydraulic equipment
Oil & gas equipment
Heat exchangers
Backflow prevention

Durable metal construction ensures great reliability and the strength to withstandsystem pressures of up to 3000 psig (200 bar)
Shatter proof construction, unlike glass tube variable area flowmeters, yields longoperation life
Preform precisely in high temperature, high vibration, shock-prone environments

Specifications

Series: DTFO Variable-Area Flowmeter for Oil
Category/Type: Flow
Type: Flowmeters
Series: DTFO Variable-Area Flowmeter for Oil
Service: Compatible oils.
Wetted Materials:: >Body: 316 SS or brass;Spring: 302SS;Range spring: 302 SS;Magnet: PTFE-coated;Metering cone: Acetal or PTFE;Seals: Buna.
Temperature Limits: -40 to 200°F ( -40 to 93°C).
Pressure Limit: >DTFO-1B and DTFO-2B: 3000 psig (200 bar);DTFO-3S: 1500 psig (100 bar).
Accuracy: ±2% FS.
Repeatability: ±1% FS.
Size: Diameter dial face 2.5" (63.5 mm).
Process Connections: See catalog page.
Weight: >DTFO-1B: 3 lb (1.36 kg);DTFO-2B: 5 lb (2.27 kg);DTFO-3S: 10 lb (4.54 kg).
