DTFO-3S-20O | Range 0-20 gpm oil | 1" npt | ss body | Dwyer
Range 0-20 gpm oil, 1" npt, ss body
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DTFO-3S-20O
Documents and manuals
Dwyer DTFO-3S-20O Documents
Overview
Details for DTFO-3S-20O
See catalog product page for full listing
Range 0-20 gpm oil | 1" npt | ss body

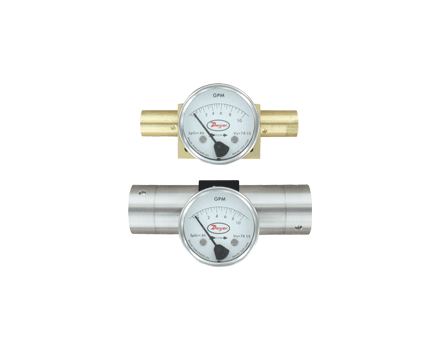

Series DTFO Variable-Area Flowmeter for Oil
Brass & 316 SS Body, 2% FS Accuracy
The Series DTFO Variable-Area Flowmeter for Liquids measures oil rates with ±2% of full-scale accuracy at an affordable price. Durable metal construction ensures great reliability and the strength to withstand system pressures of up to 3000 psig (200 bar). Available in 1/4", 1/2" and 1" connections for a wide variety of applications. Comes calibrated for horizontal in line mounting.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Monitoring pressure drop across filters or strainers
- Flow scale based on differential pressure
- Liquid level given pressure differential between bottom and top of tank
- Hydraulic equipment
- Oil & gas equipment
- Heat exchangers
- Backflow prevention
- Durable metal construction ensures great reliability and the strength to withstandsystem pressures of up to 3000 psig (200 bar)
- Shatter proof construction, unlike glass tube variable area flowmeters, yields longoperation life
- Preform precisely in high temperature, high vibration, shock-prone environments
Specifications
- Series
- DTFO Variable-Area Flowmeter for Oil
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- DTFO Variable-Area Flowmeter for Oil
- Service
- Compatible oils.
- Wetted Materials:
- >Body: 316 SS or brass;Spring: 302SS;Range spring: 302 SS;Magnet: PTFE-coated;Metering cone: Acetal or PTFE;Seals: Buna.
- Temperature Limits
- -40 to 200°F ( -40 to 93°C).
- Pressure Limit
- >DTFO-1B and DTFO-2B: 3000 psig (200 bar);DTFO-3S: 1500 psig (100 bar).
- Accuracy
- ±2% FS.
- Repeatability
- ±1% FS.
- Size
- Diameter dial face 2.5" (63.5 mm).
- Process Connections
- See catalog page.
- Weight
- >DTFO-1B: 3 lb (1.36 kg);DTFO-2B: 5 lb (2.27 kg);DTFO-3S: 10 lb (4.54 kg).
