DTFF-1S-10W | Range 0-10 GPH | water calibration | 1/4" npt | Dwyer
Range 0-10 GPH, water calibration, 1/4" npt

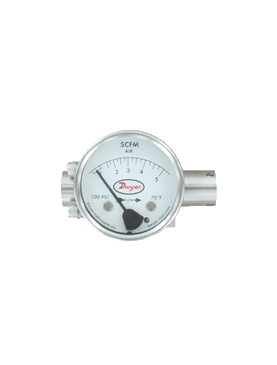

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DTFF-1S-10W
Documents and manuals
Dwyer DTFF-1S-10W Documents
Overview
Details for DTFF-1S-10W
See catalog product page for full listing
Range 0-10 GPH | water calibration | 1/4" npt
Series DTFF Fixed-Orifice Flowmeter for Low Flow Rates
316 SS Body, Oil/Gas/Water Calibration
The Series DTFF Fixed-Orifice Flowmeter for Low Flow Rates measures water, oil, or air flow rates with great accuracy at a competitive price. Rugged stainless steel construction ensures great compatibility and is an excellent choice for high line pressure applications, with a maximum pressure of 3000 psig (200 bar). This is all without sacrificing the sensitivity required for low flow measurements. Available in a wide range of flow rates for each calibration, with stainless steel construction as standard. Comes pre calibrated for horizontal in-line mounting.
Specifications
- Series
- DTFF Fixed-Orifice Flowmeter for Low Flow Rates
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- DTFF Fixed-Orifice Flowmeter for Low Flow Rates
- Service
- Compatible gases & liquids & oils.
- Wetted Materials
- >Body: 316 SS;Spring: 302SS;Range spring: 302 SS;Magnet: PTFE-coated;Orifice piston: Acetal;Diaphragm: Fluoroelastomer.
- Temperature Limit
- -22 to 200°F (30 to 93°C).
- Pressure Limit
- 3000 psig (200 bar).
- Accuracy
- Liquid/oil calibration: ±2% FS; Air calibration: ±5% FS.
- Repeatability
- ±1% FS.
- Size
- Diameter dial face 2.5" (63.5 mm).
- Process Connections
- 1/4" female NPT.
- Weight
- 4 lb (1.81 kg).
