DTFA-2A-75A | Range 5.0-75 SCFM | 1/2" npt connection | Dwyer
Range 5.0-75 SCFM, 1/2" npt connection

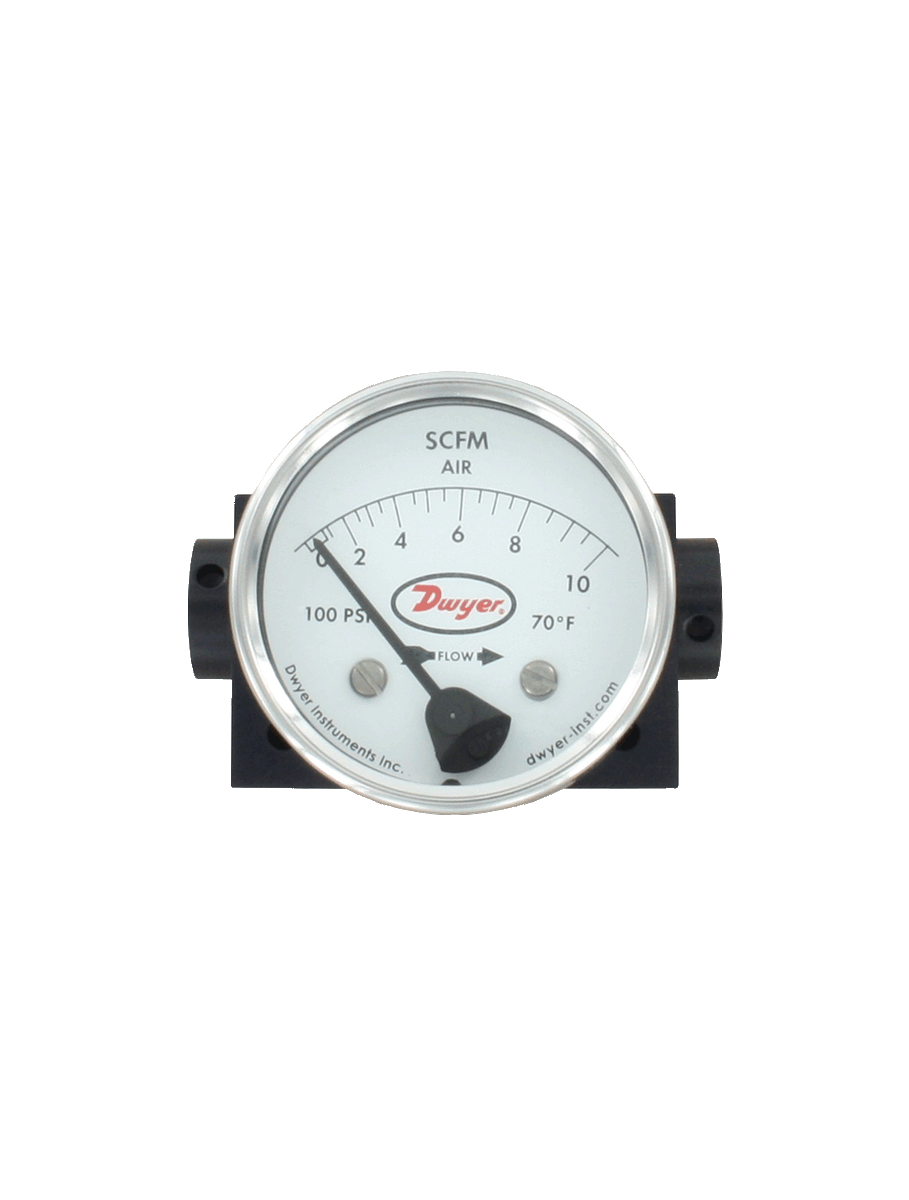

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DTFA-2A-75A
Documents and manuals
Dwyer DTFA-2A-75A Documents
Overview
Details for DTFA-2A-75A
See catalog product page for full listing
Range 5.0-75 SCFM | 1/2" npt connection
Series DTFA Variable-Area Flowmeter for Gases
Economical, Aluminum Body, 5% FS Accuracy
The Series DTFA Variable-Area Flowmeter for Gases measures gas flow rates with ±5% of full-scale accuracy at an affordable price. Rugged aluminum construction ensures great compatibility and the strength to withstand system pressures of up to 3000 psig (200 bar). Available in either 1/4" or 1/2" NPT connections. Comes pre-calibrated for horizontal in-line mounting.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Monitoring pressure drop across filters or strainers
- Flow scale based on differential pressure
- Liquid level given pressure differential between bottom and top of tank
- Hydraulic equipment
- Oil & gas equipment
- Heat exchangers
- Backflow prevention
- Durable metal construction ensures great reliability and the strength to withstandsystem pressures of up to 3000 psig (200 bar)
- Shatter proof construction, unlike glass tube variable area flowmeters, yields longoperation life
- Preform precisely in high temperature, high vibration, shock-prone environments
Specifications
- Series
- DTFA Variable-Area Flowmeter for Gases
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- DTFA Variable-Area Flowmeter for Gases
- Service
- DTFW: Compatible liquids; DTFA: Compatible gases.
- Wetted Materials
- Body: 316 SS; brass or aluminum; Spring: 302 SS or PTFEcoated;Range spring: 302 SS; Magnet: PTFE-coated; Metering cone: Acetal orPTFE; Seals: Buna.
- Temperature Limits
- -40 to 200°F (-40 to 93°C).
- Pressure Limit
- DTFW-3S: 1500 psig (100 bar); All other DTFW models: 3000 psig(200 bar); DTFA: 3000 psig (200 bar).
- Accuracy
- Liquid/oil calibration: ±2% FS; Air calibration: ±5% FS.
- Repeatability
- ±1% FS.
- Size
- Diameter dial face 2.5" (63.5 mm).
- Process Connection
- See model chart on catalog page.
- Weight
- DTFW-1B and 1S: 3 lb (1.36 kg); DTFW-2B and 2S: 5 lb (2.27 kg); DTFW-3S: 10 lb (4.54 kg); DTFA-1A: 3 lb (1.36 kg); DTFA-2A: 5 lb (2.27 kg).
