Digital indicating transmitter | range 0-160 psig.

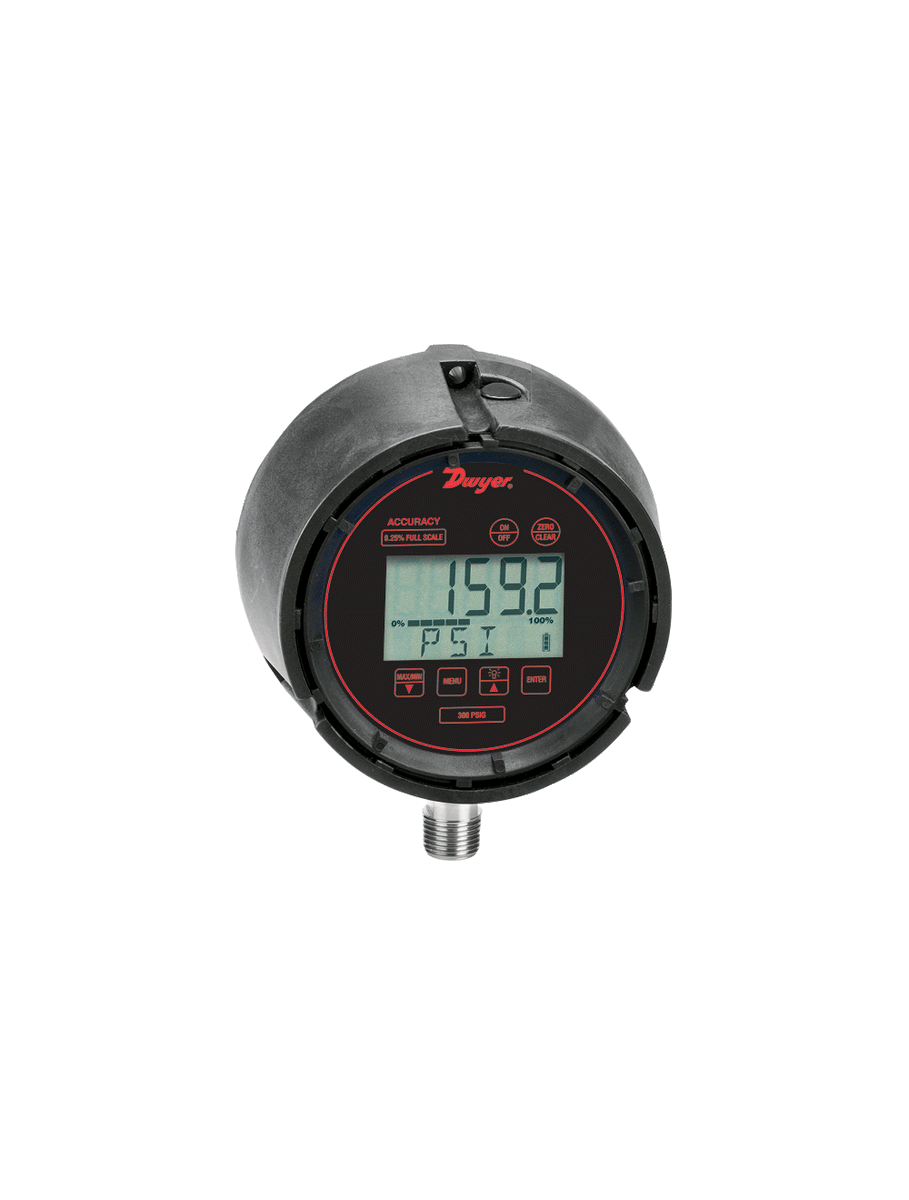

SERIES DSGT DIGITAL INDICATING TRANSMITTER
Series DSGT Digital Indicating Transmitter is a versatile multi-function process gage that features an excellent 0.25% full scale accuracy. This all-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches. The Series DSGT gage comes standards with a loop-powered 4-20 mA transmitter output and is offered with one or two optional SPDT switches.
The Series DSGT gage is housed in a durable fiberglass reinforced thermoplastic case that is designed to meet NEMA 4 (IP65) requirements. The gage features a menu-driven display for easy customization. User selectable features include 12 engineering units of measure, password protected calibration and disable functions, as well as an adjustable bar graph and update/dampening rates.
Calibration Option available under Accessories.
Product Applications
- Process
- Compressor
- Outdoor
- OEM
- All-in-one digital gage package is designed to reduce installation costs, instrumentcost, and save space where an application requires a gage, transmitter, andswitches
- Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56)requirements supports use in harsh environments
- Password protected calibration and disable functions helps to insure no errors byuntrained personnel
Specifications
- Series
- DSGT DIGITAL INDICATING TRANSMITTER
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- DSGT DIGITAL INDICATING TRANSMITTER
- GAGE SPECIFICATIONS
- Service
- Compatible; non-combustible liquids & gases.
- Wetted Materials
- 17 to 4 stainless steel sensor; 316 SS socket.
- Housing Materials
- Fiberglass reinforced thermoplastic case.
- Accuracy
- 0.25% FS (includes linearity; hysteresis; repeatability).
- Pressure Limit
- 2 x FS range.
- Process Connection
- 1/2" male NPT.
- Display
- 5 digit (0.88" high).
- TRANSMITTER SPECIFICATIONS
- Power Requirements
- 12 to 36 VDC (loop powered).
- Memory Back Up Supply
- (2) C alkaline batteries; installed functional;user replaceable.
- Output Signal
- 4 to 20 mA.
- Response Time
- 100 ms.
- Temperature Limits
- 14 to 140ºF (-10 to 60ºC).
- Thermal Effects
- 0.04% FS/°F.
- Electrical Connections
- 3 ft flying leads.
- Loop Resistance
- DC; 0 to 1090 Ω max.
- Set Point Adjustments
- Adjustable through menu selections.
- Weight
- 1.45 lb (.66 kg).
- Agency Approvals
- CE.
