DSGT-106-C2S | Digital indicating transmitter | range 0-100 psig. | Dwyer

Digital indicating transmitter, range 0-100 psig.

Brand: DwyerSKU: DSGT-106-C2S

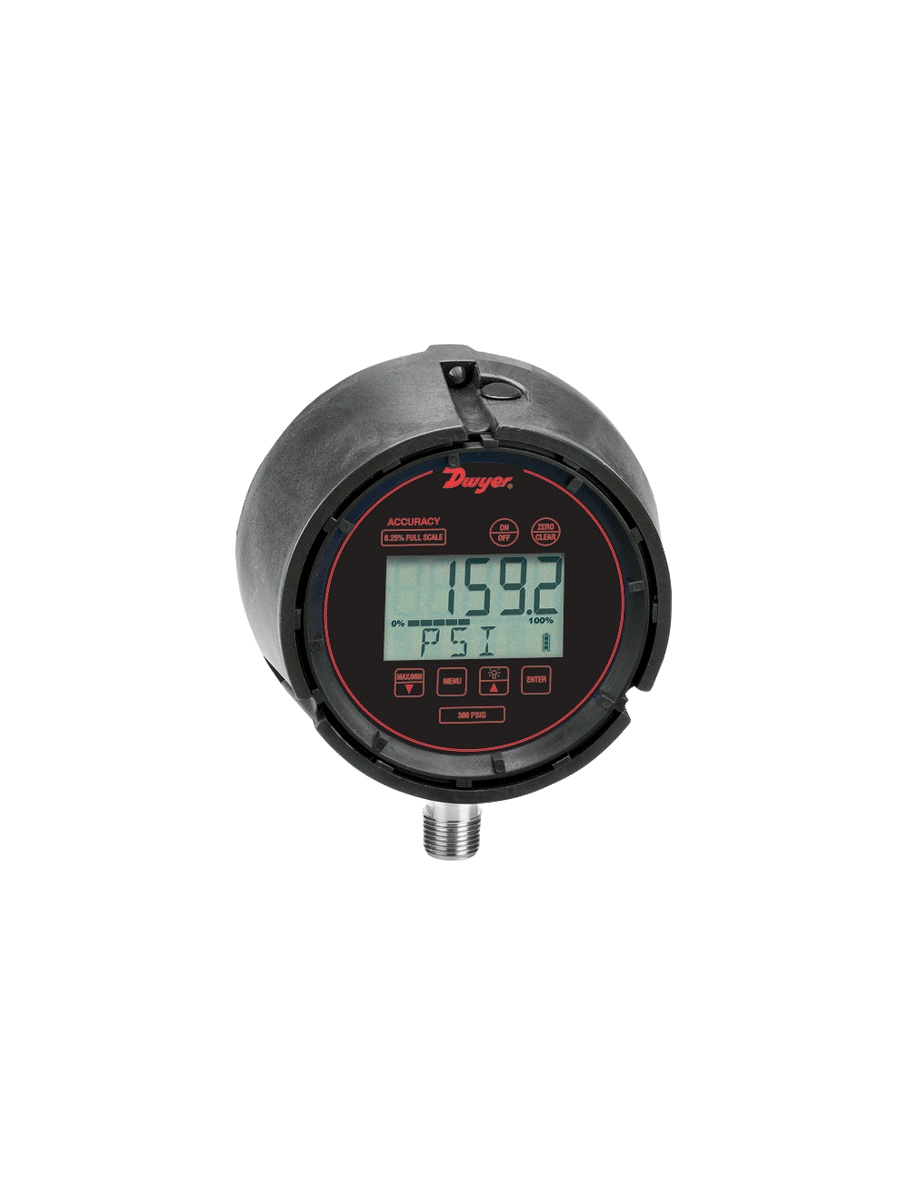

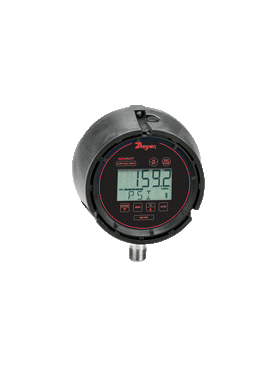

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DSGT-106-C2S

Jump to: Overview & Specifications Reviews

Overview Details for DSGT-106-C2S

See catalog product page for full listing

Digital indicating transmitter | range 0-100 psig.

SERIES DSGT DIGITAL INDICATING TRANSMITTER

±0.25% Full Scale Accuracy, Optional Switch Outputs

Series DSGT Digital Indicating Transmitter is a versatile multi-function process gage that features an excellent 0.25% full scale accuracy. This all-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches. The Series DSGT gage comes standards with a loop-powered 4-20 mA transmitter output and is offered with one or two optional SPDT switches.

The Series DSGT gage is housed in a durable fiberglass reinforced thermoplastic case that is designed to meet NEMA 4 (IP65) requirements. The gage features a menu-driven display for easy customization. User selectable features include 12 engineering units of measure, password protected calibration and disable functions, as well as an adjustable bar graph and update/dampening rates.

Calibration Option available under Accessories.

Product Applications

Process
Compressor
Outdoor
OEM

All-in-one digital gage package is designed to reduce installation costs, instrumentcost, and save space where an application requires a gage, transmitter, andswitches
Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56)requirements supports use in harsh environments
Password protected calibration and disable functions helps to insure no errors byuntrained personnel

Specifications

Series: DSGT DIGITAL INDICATING TRANSMITTER
Category/Type: Pressure
Type: Single Pressure
Series: DSGT DIGITAL INDICATING TRANSMITTER
: GAGE SPECIFICATIONS
Service: Compatible; non-combustible liquids & gases.
Wetted Materials: 17 to 4 stainless steel sensor; 316 SS socket.
Housing Materials: Fiberglass reinforced thermoplastic case.
Accuracy: 0.25% FS (includes linearity; hysteresis; repeatability).
Pressure Limit: 2 x FS range.
Process Connection: 1/2" male NPT.
Display: 5 digit (0.88" high).
: TRANSMITTER SPECIFICATIONS
Power Requirements: 12 to 36 VDC (loop powered).
Memory Back Up Supply: (2) C alkaline batteries; installed functional;user replaceable.
Output Signal: 4 to 20 mA.
Response Time: 100 ms.
Temperature Limits: 14 to 140ºF (-10 to 60ºC).
Thermal Effects: 0.04% FS/°F.
Electrical Connections: 3 ft flying leads.
Loop Resistance: DC; 0 to 1090 Ω max.
Set Point Adjustments: Adjustable through menu selections.
Weight: 1.45 lb (.66 kg).
Agency Approvals: CE.
