DR200482 | Direct reading glass flowmeter | 316 SS float | flow rate 0.075 GPH water. | Dwyer
Direct reading glass flowmeter, 316 SS float, flow rate 0.075 GPH water.

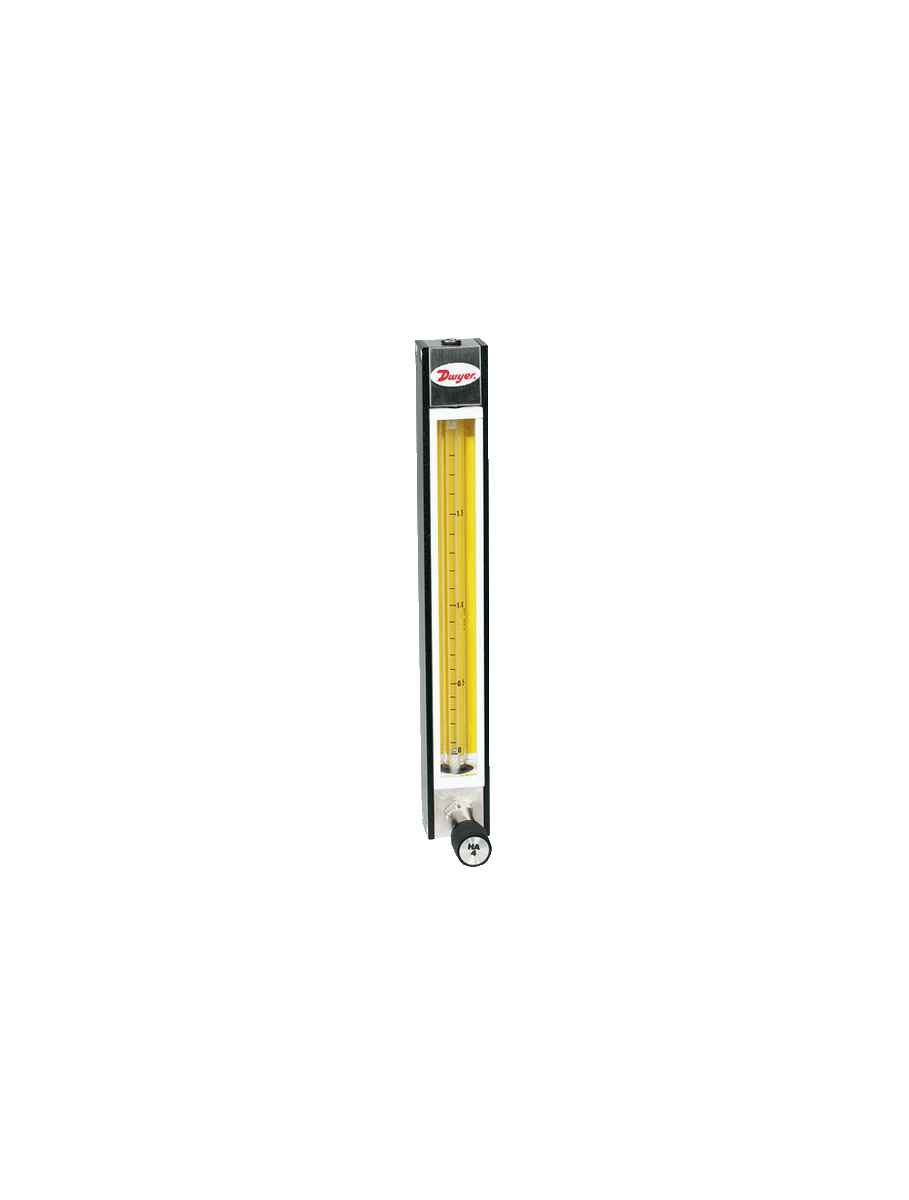

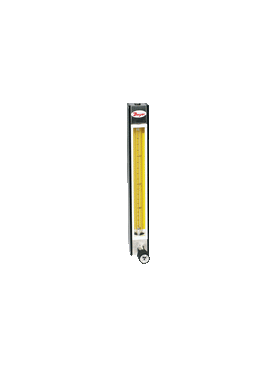

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DR200482
Documents and manuals
Dwyer DR200482 Documents
Overview
Details for DR200482
See catalog product page for full listing
Direct reading glass flowmeter | 316 SS float | flow rate 0.075 GPH water.
Series DR Direct Reading Glass Flowmeters
65 mm and 150 mm, Interchangeable Flowtubes, Direct Reading Scales
The Series DR Direct Read Variable Area Glass Flowmeters are ideal for the direct flow measurement of air, water, and other commonly used gases. These flowmeters are designed with direct read scales with no need for correlation charts. They feature borosilicate glass tubes in 150 mm or 65 mm scales with aluminum and SS metering valve options.
Flowmeters are shipped completely assembled and include standard panel mounting hardware for quick installation.
Calibration Options are available in the Accessory tab.
Product Applications
- Film processing
- Paper manufacturing
- Chemical processing
- Semiconductor industry
- Water and air pollution analysis equipment
- Metals processing
- Industrial fuel and energy conservation
- Cylinder gas metering
- General laboratory and industrial applications
- Permanently fused ceramic scale with vertical locator line, reflective lens backgroundand 1.5 X magnification lens reduces parallax and eye fatigue saving time
- Long operating life with thick polycarbonate front shield that protects tube frombreakage and serves as a magnifying lens to enhance reading resolution
- Optional needle valve for flow rate control eliminating the need for a separate valvereducing cost
- Increased protection with included safety blow-out back panel for added safety
Specifications
- Series
- DR Direct Reading Glass Flowmeters
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- DR Direct Reading Glass Flowmeters
- Service
- Compatible gases or liquids.
- Wetted Materials
- Flowtube: Borosilicate glass; Float: 316 SS (black glass as indicated); Float stops: PTFE; End fittings: Anodized aluminum or 316 SS; O-rings: Buna-N on aluminum models and fluoroelastomer on SS models.
- Temperature Limits
- 250°F (121°C).
- Pressure Limits
- 250 psig (17 bar).
- Accuracy
- ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
- Repeatability
- ±0.25% of scale reading.
- Scales
- Direct reading 65 mm or 150 mm scales for air or water.
- Turn-down ratio
- 10:1.
- Connection
- 1/8" female NPT.
- Mounting
- Vertical.
- Valve
- 6-turn needle (standard on models with valve).
