DPT-A09 | Digital pressure transmitter | range 0 to 500 psig | 4-20 mA output. | Dwyer

Digital pressure transmitter, range 0 to 500 psig, 4-20 mA output.

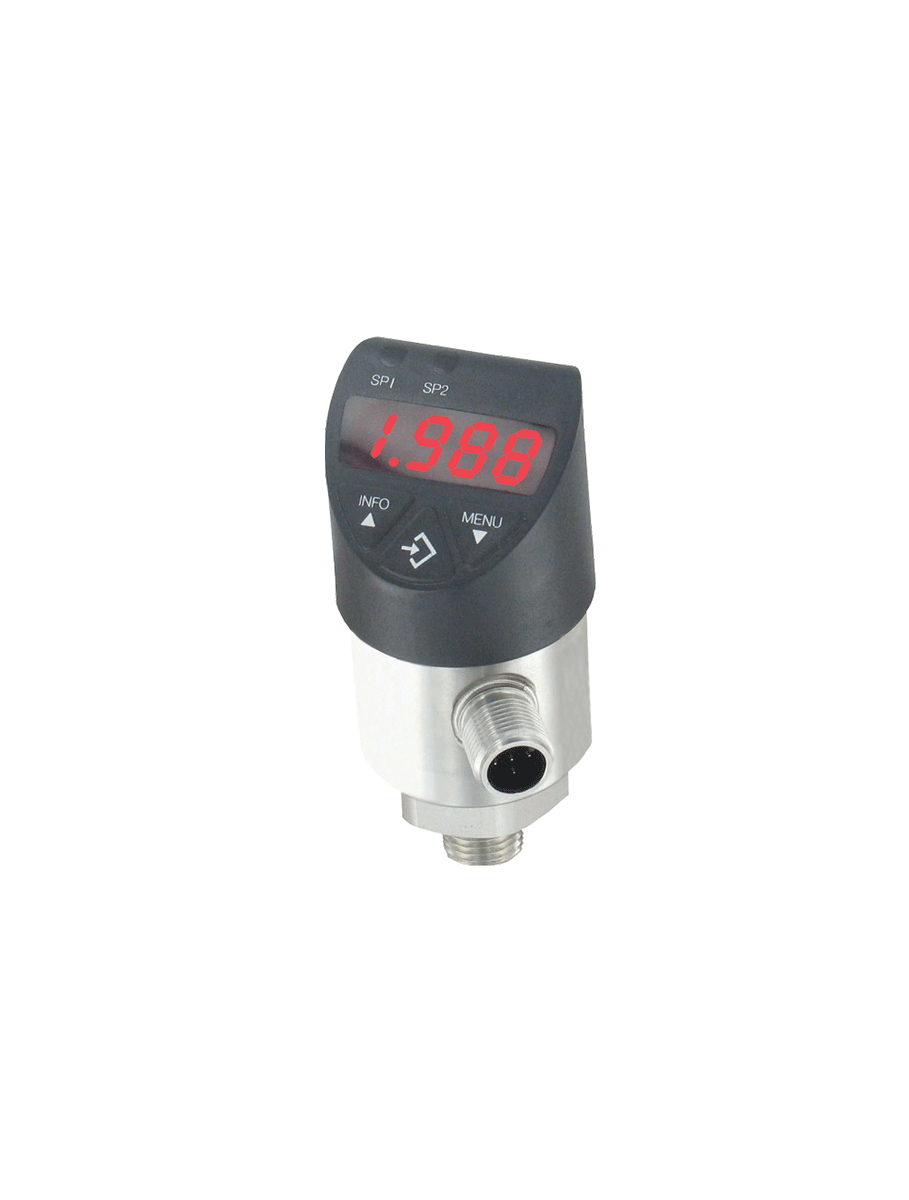

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPT-A09

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer DPT-A09 Documents

Instruction Manual Series DPT Catalog Page DPT More Info

Overview

Details for DPT-A09

See catalog product page for full listing

Digital pressure transmitter | range 0 to 500 psig | 4-20 mA output.

SERIES DPT DIGITAL PRESSURE TRANSMITTER WITH SWITCHES

Two Solid State Switches, LED Display

The Series DPT Digital Pressure Transmitter with Switches combines a large, 14-segment LED display with two programmable solid state switches into one compact unit. A unique, 3-way rotating design allows the DPT to meet specific installation requirements without any retrofitting. The display and electrical connection can be rotated independently to maximize visibility while still orienting the electrical connection in the best position for the cable connector. Large, ergonomically designed push buttons allow for quick/easy programming and thin-film piezoresistive sensor technology guarantees long-term reliability and stability.

Calibration Option available under Accessories.

Product Applications

Calibration
Hydraulics and pneumatics
Machine tools
Compressors and pumps
Machine building

Dual PNP solid state switches
14-segment red LED display
User-friendly, intuitive 3-key operation
Rotating design: 330° display rotation; 180° display electronic rotation

Specifications

Series: DPT DIGITAL PRESSURE TRANSMITTER WITH SWITCHES
Category/Type: Pressure
Type: Single Pressure
Series: DPT DIGITAL PRESSURE TRANSMITTER WITH SWITCHES
Service: Compatible gases; liquids or vapors.
Wetted Materials: Pressure connection: 316 L SS; Pressure sensor: 316 L SS (13-8 PH for ranges above 150 psi).
Housing: 316 L lower body; heat and chemical resistant fiberglass reinforced plastic (PBT) plastic head; TPE-E keyboard; PC display window.
Accuracy: 1.0% F.S. (includes non-linearity; hysteresis; zero point).
Pressure Limit: See Catalog page.
Temperature Limits: 32 to 176°F (0 to 80°C).
Process Connections: 1/4" male NPT.
Display: Red LED 4-digit (0.35" H digits).
Weight: 7 oz (0.2 kg).
SWITCH SPECIFICATIONS
Switch Type: PNP.
Electrical Rating: 250 mA.
Electrical Connections: M 12x1; 5-pin.
Mounting Orientation: Mount in any position.
TRANSMITTER SPECIFICATIONS
Temperature Limits: 32 to 176°F (0 to 80°C).
Thermal Effect: 0.2% FS / 10k.
Power Requirements: 15 to 35 VDC.
Output Signal: DPT-A: 4 to 20 mA; DPT-V: 0 to 10 VDC.
Loop Resistance: DPT-A: ≤ 0.5k; DPT-V: > 10k.
Power Consumption: ≤ 100 mA.
Electrical Connections: M 12x1; 5-pin.
Enclosure Rating: IP67.
Agency Approvals: CE.
