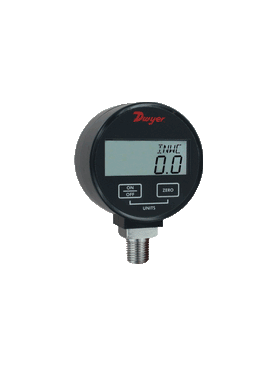

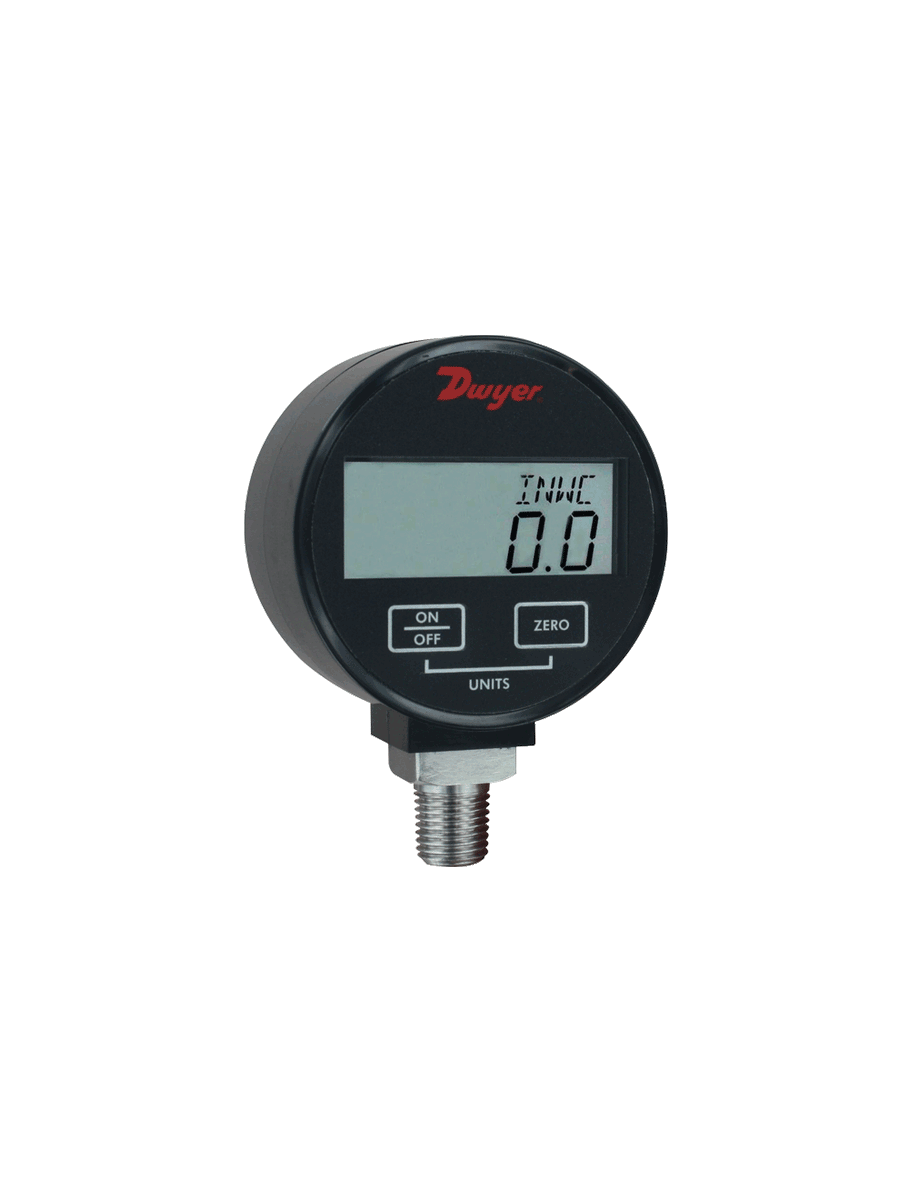

DPGW-00 | Digital pressure gage | range 30" Hg to 0 psi | selectable engineering units: -14.70 psig | Dwyer
Digital pressure gage, range 30" Hg to 0 psi, selectable engineering units: -14.70 psig, -1.033 kg/cm², -1.013 bar, -29.93" Hg, -33.94 ft w.c., -101.4 kPa, -235.2 oz/in², -407.3" w.c., -1013 mbar, -1034 cm w.c., -761 mm Hg, 0.01 psi resolution.
Documents and manuals
Dwyer DPGW-00 Documents
Overview
Details for DPGW-00
Digital pressure gage | range 30" Hg to 0 psi | selectable engineering units: -14.70 psig
SERIES DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
The Series DPGA is the only economic digital pressure gage with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGA is the perfect choice for digitally monitoring the pressures of air and compatible gases.
The Series DPGW is the only economic digital pressure gage for liquids with the ability to select engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGW is the perfect choice for digitally monitoring the pressures of air and compatible liquids and gases.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Process applications
- Process start-up
- OEM applications
- Push-button zero reduces installation and service time
- High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
- Selectable unit button provides reading in easily recognizable units
- Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifyingsimple operation and accuracy
Specifications
- Series
- DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
- Service
- DPGA: air and compatible gases; DPGW: liquids and compatible gases.
- Wetted Materials
- DPGA: 316L SS; silicone sensor; DPGW: 316L SS.
- Housing Materials
- ABS plastic.
- Accuracy
- ±1.0% F.S. (Includes linearity; hysteresis; repeatability.)
- Pressure Limits
- 2X pressure range. Vacuum range max. pressure is 30 psig.
- Temperature Limits
- 30 to 120°F (-1 to 49°C).
- Thermal Effect
- 0.05% FS/°F.
- Size
- 2.62" OD x 1.52" deep.
- Process Connection
- 1/4" male NPT.
- Display
- 4-digit LCD (.425" H x .234" W digits).
- Power Requirements
- 9 V alkaline battery; included; user replaceable.
- Auto Shut-Off
- 20 minute auto shut-off.
- Weight
- 5.6 oz (160 g).
