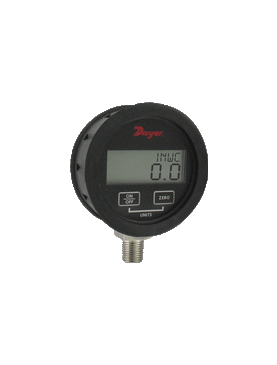

DPGAB-04 | Digital pressure gage | range 0 to 5 psi | selectable engineering units: 5.000 psig | Dwyer
Digital pressure gage, range 0 to 5 psi, selectable engineering units: 5.000 psig, .3515 kg/cm², .3447 bar, 10.18" Hg, 11.53 ft w.c., 34.47 kPa, 80.0 oz/in², 138.4" w.c., 344.7 mbar, 351.5 cm w.c., 258.6 mm Hg, 0.002 psi resolution.
Documents and manuals
Dwyer DPGAB-04 Documents
Overview
Details for DPGAB-04
Digital pressure gage | range 0 to 5 psi | selectable engineering units: 5.000 psig
SERIES DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
The Series DPGWB/DPGAB Pressure Gages offer 0.5% full scale accuracy in a rugged, easy-to-use unit at prices comparable to mechanical gages. The DPGWB stainless steel wetted material makes it suitable for a wide variety of liquids or gases. The gages feature user-selectable units of measure allowing one gage to be used for a variety of pressure scales. The DPGWB/DPGAB come with a protective rubber boot to protect against short drops and rough handling.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Ideal for checking line pressures at system startup.
- Process applications
- Process start-up
- OEM applications
- Push-button zero reduce installation and service time
- High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
- Selectable unit button provides reading in easily recognizable units
Specifications
- Series
- DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
- Service
- >DPGAB: Air and compatible gases; DPGWB: Liquids and compatible gases.
- Wetted Materials
- >DPGAB: 316L SS; silicone sensor; DPGWB: Type 316L SS.
- Housing Materials
- ABS plastic.
- Accuracy
- ±0.5% F.S. (includes linearity; hysteresis; repeatability).
- Pressure Limits
- 2X pressure range. Vacuum range max. pressure is 30 psig.
- Temperature Limits
- 30 to 120°F (-1 to 49°C).
- Thermal Effect
- 0.05% FS/°F.
- Size
- 2.62" O.D. x 1.52" deep.
- Process Connections
- 1/4" male NPT.
- Display
- 4-digit LCD (.425" H x .234" W digits).
- Power Requirements
- 9 V alkaline battery; included; user replaceable.
- Auto Shut-off
- 20 minute auto shut-off.
- Weight
- 5.6 oz (160 g).
