DPG-110 | Digital pressure gage | selectable engineering units: 3000 psi | 210.9 kg/cm² | 206.9 bar | 6108" Hg | 6921 ft w.c. | CE and FM approved | Dwyer

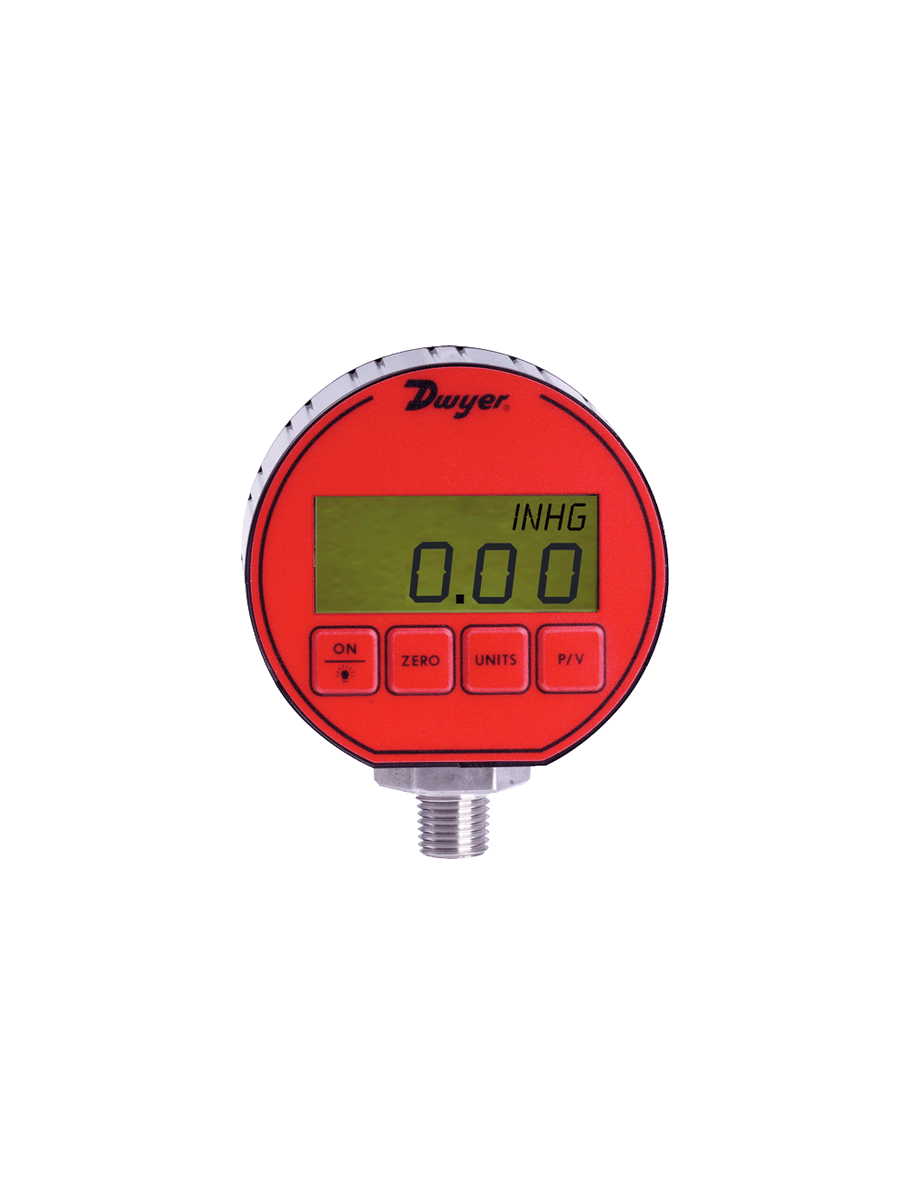

Digital pressure gage, selectable engineering units: 3000 psi, 210.9 kg/cm², 206.9 bar, 6108" Hg, 6921 ft w.c., CE and FM approved

Brand: DwyerSKU: DPG-110

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPG-110

Jump to: Overview & Specifications Reviews

Overview Details for DPG-110

See catalog product page for full listing

SERIES DPG DIGITAL PRESSURE GAGE

±0.25% or ±0.5% F.S. Accuracy, NEMA 4X (IP66) Aluminum Housing

Replace your outdated analog gages with the new Series DPG Digital Pressure Gage. The Series DPG has a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process applications
Replacement for legacy analog gages
OEM applications

High accuracy provides exceptional measurement minimizing costly out ofspecification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential forerrors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery lifereducing service calls
Push-button zero reduce installation and service time

Specifications

Series: DPG DIGITAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: DPG DIGITAL PRESSURE GAGE
Service: Compatible liquids and combustible gases (for FM listing see Agency Approvals below).
Wetted Materials: Type 316L SS.
Housing Materials: Polycarbonate front and back cover; anodized aluminum extruded housing with recessed grooves; polycarbonate overlay; Buna-N O-rings; 316L SS sensor construction.
Accuracy: DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity; hysteresis; repeatability).
Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
Enclosure Rating: Designed to meet NEMA 4/4X (IP66).
Temperature Limits: 0 to 130°F (-18 to 55°C).
Thermal Effect: Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F.
Size: 3.00" OD x 1.90" deep (max).
Process Connection: 1/4" male NPT.
Weight: 8.84 oz (275 g).
Display: 4 digit (.425" H x .234" W digits).
Power Requirements: (2) AAA alkaline batteries; included; user replaceable.
Battery Life: 2000 hours typical; Low battery indicator. (60 hours in continuous use).
Auto Shut-Off: Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off.
Agency Approvals: DPG-000: CE; DPG-100: CE; FM approved to be intrinsically safe for Class I; Division 1; Groups A; B; C and D; for ranges 0-5 to 0-3000 psi.
