Documents: DPA-7033-153-62

Instruction Manual Series DP Catalog Page More Info

DPA-7033-153-62 | Differential pressure switch | brass bellows | range 0-20 psid (0-1.4 bar) | max. pressure 100 psig (6.9 bar) | min. deadband 2.5 psid (.17 bar). | Dwyer

Differential pressure switch, brass bellows, range 0-20 psid (0-1.4 bar), max. pressure 100 psig (6.9 bar), min. deadband 2.5 psid (.17 bar).

Brand: DwyerSKU: DPA-7033-153-62

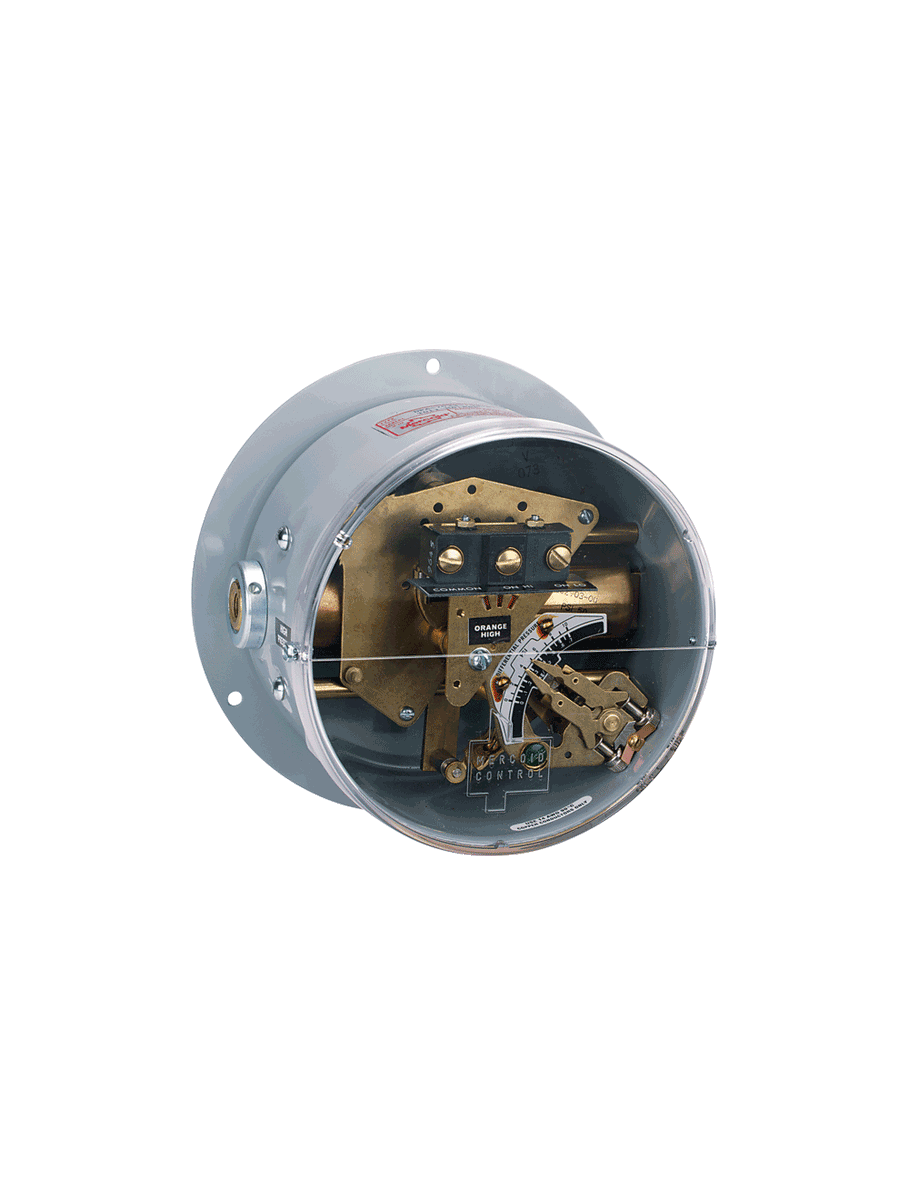

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPA-7033-153-62

Jump to: Overview & Specifications Reviews

Overview Details for DPA-7033-153-62

See catalog product page for full listing

Differential pressure switch | brass bellows | range 0-20 psid (0-1.4 bar) | max. pressure 100 psig (6.9 bar) | min. deadband 2.5 psid (.17 bar).

Series DP Double Bellows Differential Pressure Switch

Visible Setpoints, Adjustable or Fixed Deadband . . . High Pressure Ranges

Two opposing bellows combine maximum sensitivity and vibration resistance at a moderate cost in the Series DP Differential Pressure Switches. Both set and reset points are easily adjustable through non-interactive, externally accessible controls. Visible setpoint indicators simplify changes. SPDT snap action switch, 316 stainless steel or brass bellows, flanged steel housing. Rated pressures to 600 psig.

A wide variety of switches and circuit styles enables exactly the specific type of control function needed for any system. Mercury switches are a good choice for humid areas while snap switches are better able to resist vibration. Various operations possible include single adjustment - fixed deadband, double adjustment - adjustable deadband, manual reset (increasing or decreasing pressure) and two stage with each SPST or SPDT switch independently adjustable. Standard enclosure is NEMA-1 style. Optional weatherproof construction is for outdoor use and explosion-proof enclosure meets requirements for Class I, Groups C & D; Class II, Groups E, F & G.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Accurate switch triggers in high pressure applications

Bellows switch design provides sensitivity to pressure changes but resists vibrationpreventing out of range switching
External access to set and rest controls makes for easy adjustments
Visible set point indicators simplify changes

Specifications

Series: DP Double Bellows Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: DP Double Bellows Differential Pressure Switch
Wetted Materials: Brass on ranges 61; 62; 63 or 316SS on ranges 62E; 64E 65E.
Temperature Limits: -10 to 180°F (-23 to 82°C).
Pressure Limit: Maximum pressure of the operating range.
Enclosure Rating: General purpose; weatherproof or explosion-proof.
Switch Type: Mercury or snap switch; see Ordering Page.
Electrical Rating: See Ordering Page.
Electrical Connection: Screw terminal.
Conduit Connection: General purpose: 1/2" hole for conduit hub. Weatherproof: 1/2" conduit hub. Explosion-proof: 3/4" NPT female.
Process Connection: General purpose and weatherproof: 1/8" NPT female. Explosion-proof: 1/4" NPT male.
Mounting Orientation: Vertical.
Set Point Adjustment: Thumbscrew.
Weight: General purpose: 5 lb (2.3 kg). Weatherproof: 7 lb (3 kg). Explosion-proof: 25 lb (11 kg).
Agency Approvals: cULus.
