DFM-22010-V-ALA2 | Digital flow meter | 0-100 ml/min with LED display | 1/8" compression fittings | 0-5 VDC output | RS-232 digital interface | (RS-485)selectable. | Dwyer

Digital flow meter, 0-100 ml/min with LED display, 1/8" compression fittings, 0-5 VDC output, RS-232 digital interface, (RS-485)selectable.

Brand: DwyerSKU: DFM-22010-V-ALA2

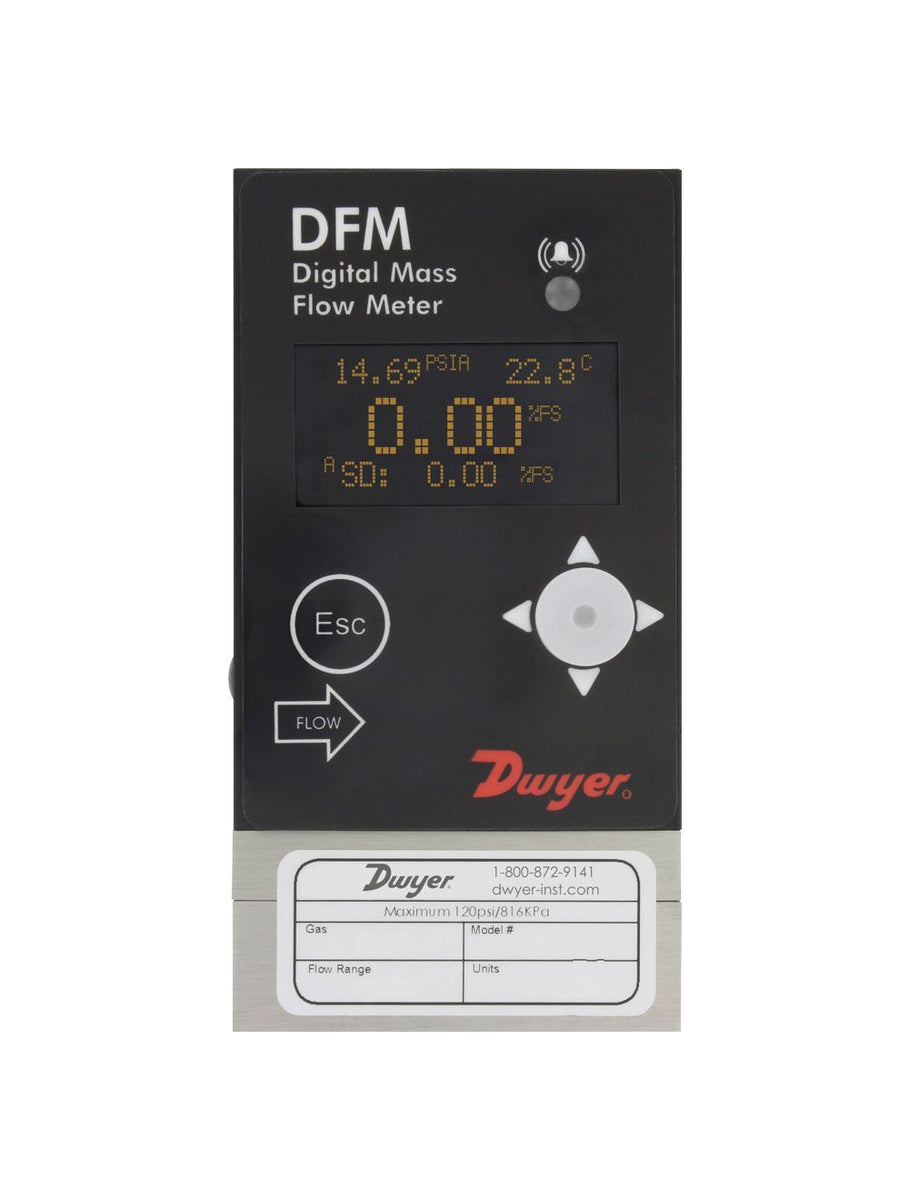

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DFM-22010-V-ALA2

Jump to: Overview & Specifications Reviews

Overview Details for DFM-22010-V-ALA2

See catalog product page for full listing

Series DFM Digital Flow Meter

Multi-Parameter, Multi-Gas, Field Configurable

The Series DFM Digital Flow Meter is the industry leader in the measurement ofmass and volumetric flow rates of process gases. Using the OLED/joystick interface,the flowmeter can measure up to 30 different gases. Simultaneous displays of massflow, volumetric flow, pressure and temperature parameters promote applications in avariety of industries. NIST traceable certification included.

Product Applications

Gas flow measurement
Operating pumps and valves
Process equipment
Scientific and analytical
Bioreactors and surface depositions
Gas sampling
General manufacturing

Quick (< 20ms) response time
Multi-parameter functionality
Multi-gas functionality
Capable of storing up to 90 gases and 20 custom gas mixes
Field configurable
Modifiable outputs
High, low or in-range alarms with preset action delay for mass flow, temperature andpressure

Specifications

Series: DFM Digital Flow Meter
Category/Type: Flow
Type: Mass Flowmeters and Controllers
Series: DFM Digital Flow Meter
Service: Clean; non-corrosive gases compatible with wetted parts.
Wetted Materials: 316 SS; 416 SS; high temperature polyamide; alumina ceramic;epoxy; silicone; glass; gold. FKM O-rings.
Accuracy: ±(0.5% of reading + 0.2% FS).
Repeatability: ±0.15% FS.
Response Time: 10 ms.
Output: 0-5 VDC; 0-10 VDC and 4-20 mA.
Relay Rating: Programmable solid state relay.
Max. Particulate Size: 20 microns.
Temperature Limits: 14 to 140°F (-10 to 60°C).
Power Supply: 9-26 VDC.
Process Connections: 1/8" compression fitting for flow rates ≤ 10 L/min; 1/4" for ≤ 50 L/min; 3/8" for ≤ 100 L/min.
Display: 2 x 16 character OLED (model selectable).
Pressure Limits: 120 psig (8.27 bar).
Leak Integrity: 1 x 10-9 sccs of helium.
Weight: DFM-01/50: 0.85 lbs (0.4 kg); DFM-51/56: 1.15 lbs (0.52 kg).
Agency Approvals: CE.
