DFC-56100-V-DLA2 | Digital flow controller | 0-100 l/min with LED display | 3/8" compression fittings | 0-5 VDC output | RS-232 digital interface | (RS-485)selectable. | Dwyer

Digital flow controller, 0-100 l/min with LED display, 3/8" compression fittings, 0-5 VDC output, RS-232 digital interface, (RS-485)selectable.

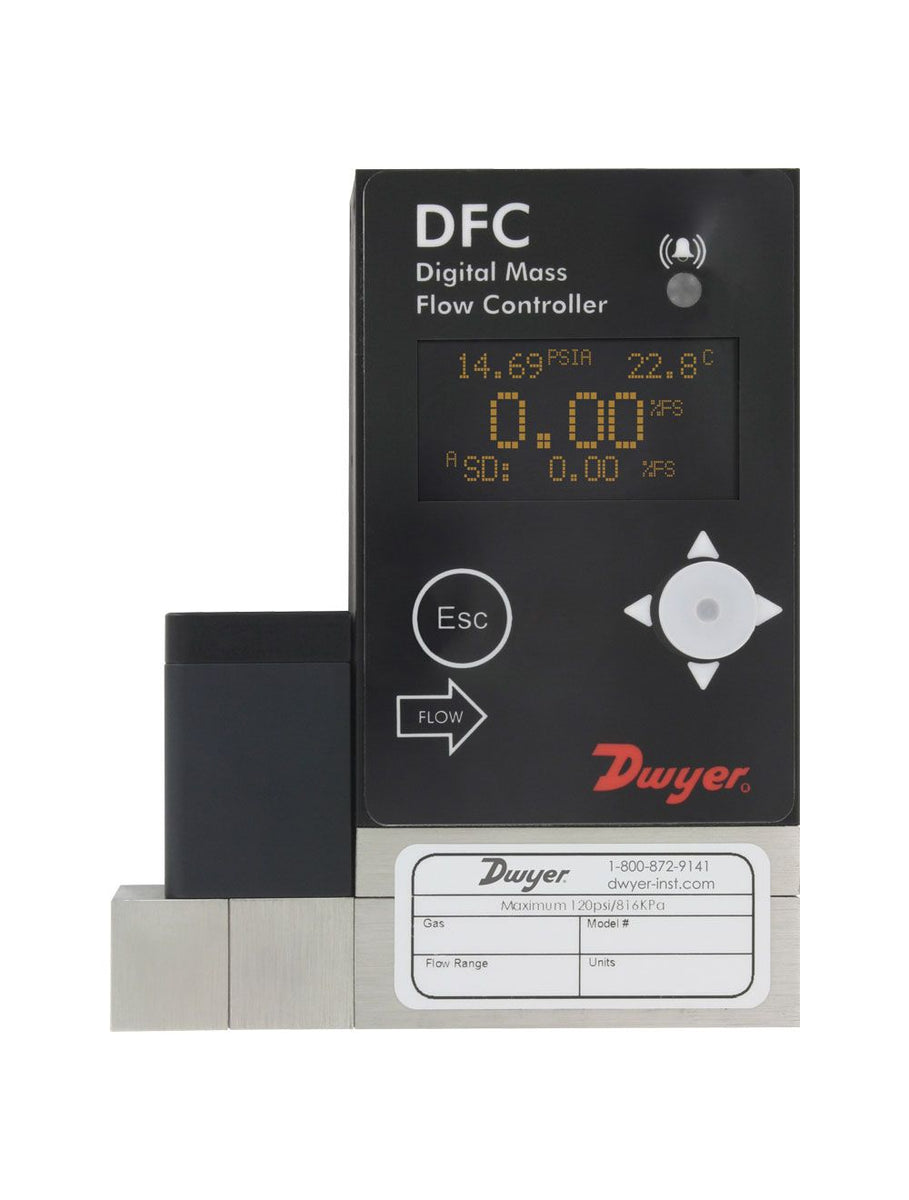

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DFC-56100-V-DLA2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer DFC-56100-V-DLA2 Documents

Instruction Manual Series DFC Catalog Page DFC More Info

Overview

Details for DFC-56100-V-DLA2

See catalog product page for full listing

Series DFC Digital Flow Controller

Multi-Parameter, Multi-Gas, Field-Configurable

The Series DFC Digital Flow Controller combines a straight tube sensor witha restrictor flow element to provide accurate readings and control. Simultaneousdisplays of mass flow, volumetric flow, pressure and temperature parameters promoteapplications in a variety of industries. NIST traceable certification included.

Product Applications

Gas flow measurement
Gas flow control
Operating pumps and valves
Process equipment
Vacuum process
Scientific and analytical
Bioreactors and surface depositions

Able to quickly see changes due to fast <20 ms response rate
Simple setup using configuration/calibration software
Works for a variety of application with up to 90 different user selectable gases andgas mixes
Meet application requirements with high accuracy and repeatability
Minimize downtime with self-diagnostics through status LED or OLED indication

Specifications

Series: DFC Digital Flow Controller
Category/Type: Flow
Type: Mass Flowmeters and Controllers
Series: DFC Digital Flow Controller
Service: Clean; non-corrosive gases compatible with wetted parts.
Wetted Materials: 316 SS; 416 SS; high temperature polyamide; alumina ceramic;epoxy; silicone; glass; gold. FKM O-rings.
Accuracy: ±(0.5% of reading + 0.2% FS).
Repeatability: ±0.2% FS.
Response Time: 150 ms.
Output: 0-5 VDC; 4-20 mA and 0-10 VDC.
Relay Rating: Programmable solid state relay.
Max. Particulate Size: 20 microns.
Temperature Limits: 14 to 140°F (-10 to 60°C).
Power Supply: 12-26 VDC.
Process Connections: 1/8" compression fitting for flow rates = 10 L/min (-005; -010); 1/4" for = 50 L/min (-050); 3/8" for = 100 L/min (-100).
Pressure Limits: 120 psig (8.27 bar).
Leak Integrity: 1 x 10-9 sccs of helium.
Display: 2 x 16 character OLED.
Weight: DFC-01/50: 1.40 lbs (0.635 kg); DFC-51/56: 1.66 lbs (0.755 kg).
Agency Approvals: CE.
