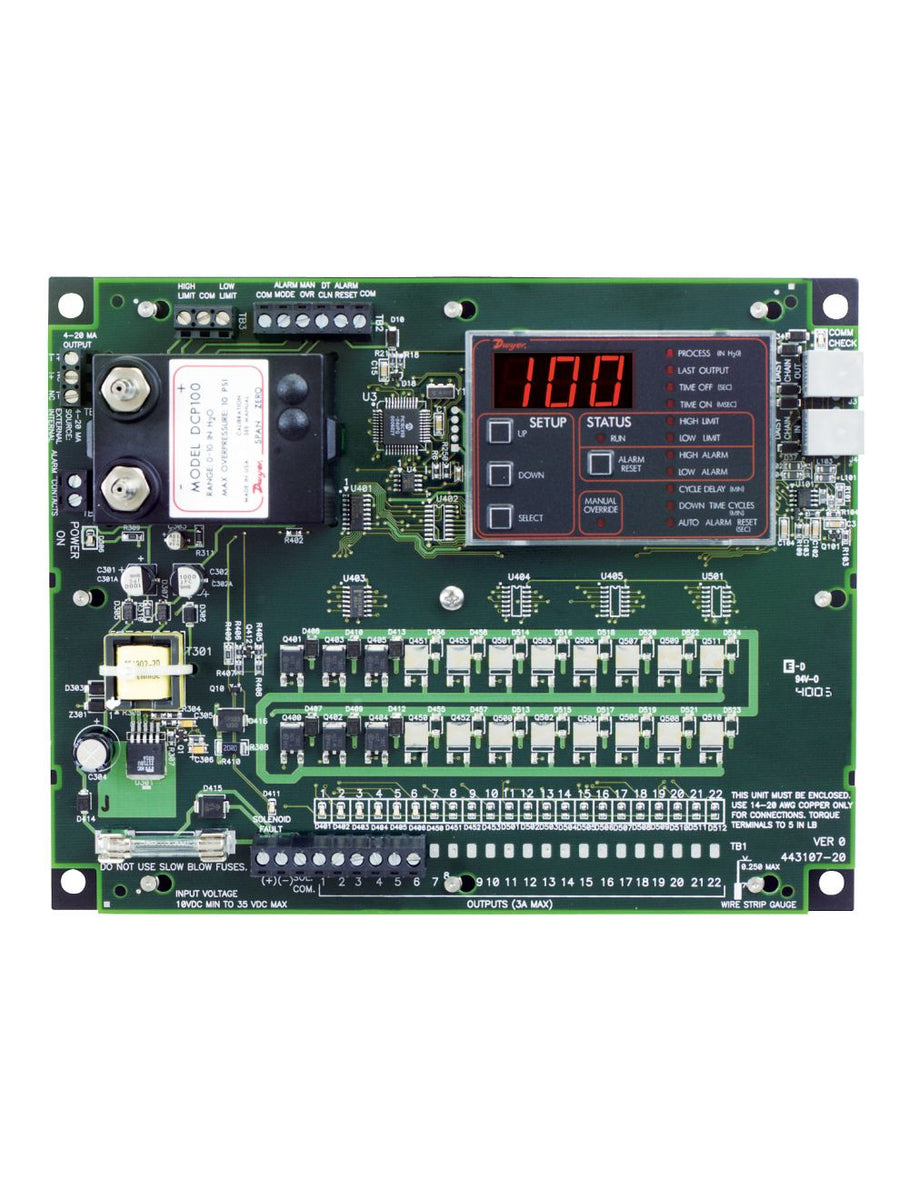

Series DCT1000DC Dust Collector Timer Controller
Simplify your on-demand cleaning requirements with the Series DCT1000DC Dust Collector Timer Controller. Relying on one timer board for on demand and continuous cleaning applications, the DCT1000DC eliminates external devices such as pressure switches, relays and timers.
The DCT1000DC accepts 10-30 VDC power. The units modular design allows for use as a continuous cleaning control or on demand cleaning control using the optional DCP plug-in pressure module. A 4-20 mA process output is integral to the DCP pressure module, eliminating the need to purchase an expensive process transmitter. A solenoid fault light on the DCT1000DC notifies the operator when a solenoid valve fails to activate properly.
The DCT1000DC is the same size for 6, 10 and 22 channels. One board size allows the standardization on one enclosure.
Product Applications
- Dust collection
- Pneumatic conveying
- 10 to 30 VDC power requirement for low voltage applications
- Standard mounting holes to other dust collector controllers for use in existing installations
- Able to automatically detect any channel expander connected
Specifications
- Series
- DCT1000DC Dust Collector Timer Controller
- Category/Type
- Process Control
- Type
- Timer Boards
- Series
- DCT1000DC Dust Collector Timer Controller
- DCT1000DC TIMER CONTROLLER
- Output Channels
- 6; 10 & 22 channels.
- Power Requirements
- 10-30 VDC.
- Power Consumption
- 5 W.
- Solenoid Supply
- 3A maximum per channel.
- Fuse
- 3 A @ 250 VAC.
- Temperature Limits
- -40 to 140°F (-40 to 60°C).
- Storage Temperature Limits
- -40 to 176°F (-40 to 80°C).
- On-time
- 10 msec to 600 msec; 10 msec steps.
- On-time Accuracy
- ±10 msec.
- Off-time
- 1 second to 255 seconds; 1 second steps.
- Off-time Accuracy
- ±1% of the value or ±50 msec; whichever is greater.
- Weight
- 1 lb; 3.0 oz (538.6 g).
- Agency Approvals
- CE.
- DCP PRESSURE MODULE
- Pressure Ranges
- 10" w.c. or 20" w.c.
- Temperature Limits
- -40 to 140°F (-40 to 60°C).
- Pressure Limits
- 10 psi (68.95 kPa).
- Pressure Limits (differential)
- 10 psi (68.95 kPa).
- Accuracy
- ±1.5% F.S. @ 73°F (22.8°C).
- Output Signal
- 4-20 mA.
- Alarm Contacts
- 1.5A inductive load; 3A resistive load @ 30 VAC or 40 VDC.
- Process Connections
- Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing.
- Weight
- 5.5 oz (155.9 g).
