Documents: DCGII-105

Instruction Manual Series DCGII Catalog Page More Info

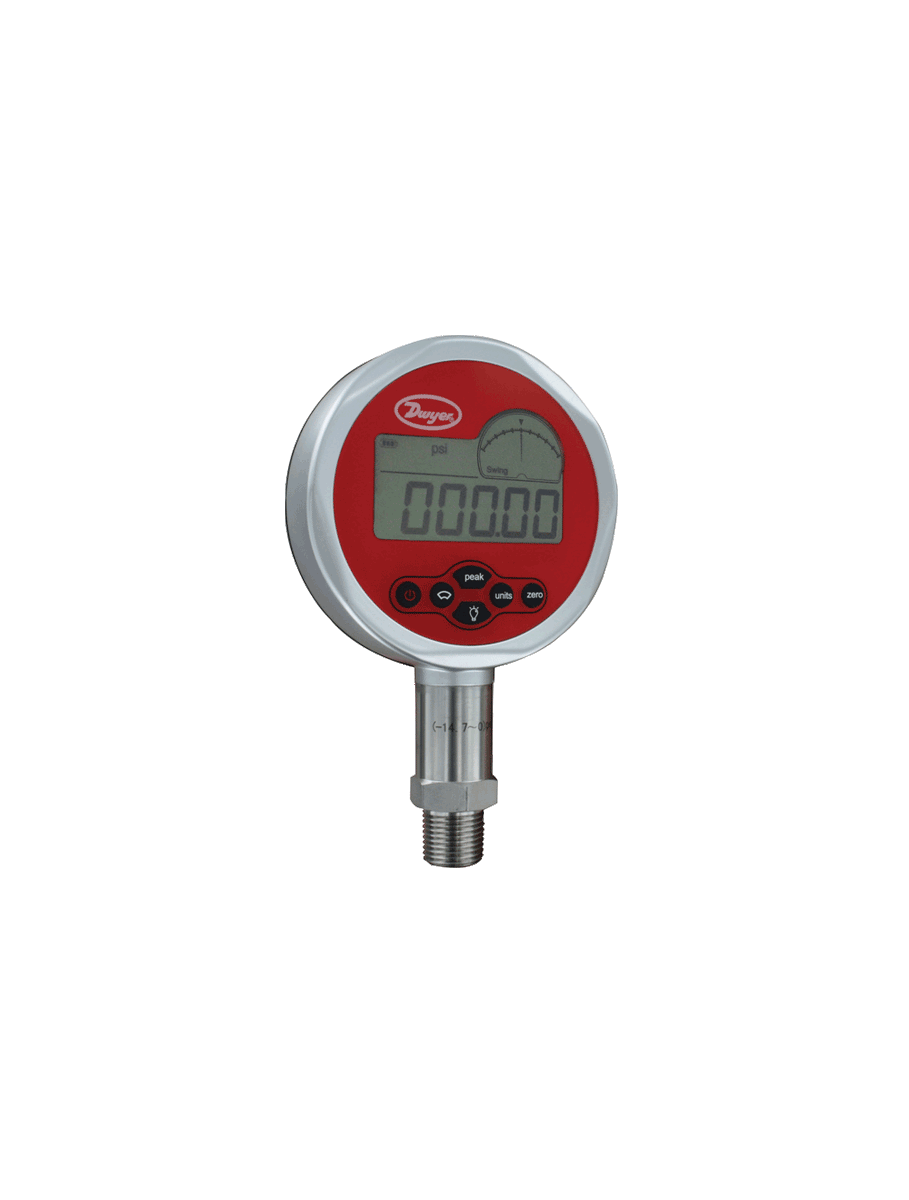

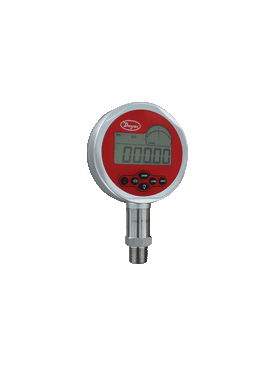

DCGII-105 | Digital pressure gage | range 0-200 psig | 0.05% FS | 1/2" SS male npt | Dwyer

Digital pressure gage, range 0-200 psig, 0.05% FS, 1/2" SS male npt

Brand: DwyerSKU: DCGII-105

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCGII-105

Jump to: Overview & Specifications Reviews

Overview Details for DCGII-105

See catalog product page for full listing

Digital pressure gage | range 0-200 psig | 0.05% FS | 1/2" SS male npt

SERIES DCGII DIGITAL CALIBRATION PRESSURE GAGE

±0.05% FS Accuracy, 316 SS Wetted Parts

The Series DCGII Digital Calibration Pressure Gage offers a complete pressure gage with calibration capabilities. With a precise 0.05% full scale accuracy and large 5 digit resolution, this gage can be used in critical industrial applications where precision is most important. This versatile gage only requires one 9V battery or power adapter and can operate up to 5,000 working hours. The Series DCGII 0.05% Digital Pressure Gage can display percent of range, pressure swings or alarm set points. This pressure gage comes complete with ten selectable pressure units, backlight and zeroing capability.

Calibration Option available under Accessories.

Product Applications

Field gage calibration
Permanent installation
Burst disc testing
Pressure regulator testing and hydrostatic leak testing

Highest accuracy provides exceptional measurement for calibration minimizingcostly out of specification conditions
Stainless steel housing resists ambient corrosion for longer service life in harshenvironments
Lightweight and slim, yet large easy to read battery-powered gage make them easyto carry and read
Specified with high ambient temperature rating means more robust uses and longerservice-life
Indicator can display pressure swings, minimum and maximum peak detection withalarm set points provides a multipurpose tool where critical calibration is needed

Specifications

Series: DCGII DIGITAL CALIBRATION PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: DCGII DIGITAL CALIBRATION PRESSURE GAGE
Service: Compatible; non-combustible liquids and gases.
Wetted Materials: 316 SS.
Other Materials: Housing: Aluminum alloy; Display: Acrylic MR200;Buttons: Silicon gel; Back plate: 304 SS; Back seal: Oil-proof latex.
Accuracy: 0.05% FS; ±1 least significant digit.
Temperature Accuracy: ±1°C.
Pressure Limits: 120% FS.
Temperature Limits: 14 to 122°F (-10 to 50°C).
Compensated Limits: 32 to 122°F (0 to 50°C).
Process Connection: 1/2" male NPT.
Display: 5-digit LCD with blue backlight.
Power Requirements: 9 V alkaline battery; not included; or power adapter accessory.
Battery Life: Up to 10;000 hours (600 working hours @ default 3times/s).
Auto Shut-off: Backlight: On/off; 10 s; 20 s; 30 s.
Weight: 1.28 lb (0.58 kg).
Agency Approvals: CE.
