CFS2-ONBPN-50 | PVC cable | SPST | NO | 10(8)A 250V~ | 50 ft ( 15.24 m) cable | Dwyer

PVC cable, SPST, NO, 10(8)A 250V~, 50 ft ( 15.24 m) cable

Brand: DwyerSKU: CFS2-ONBPN-50

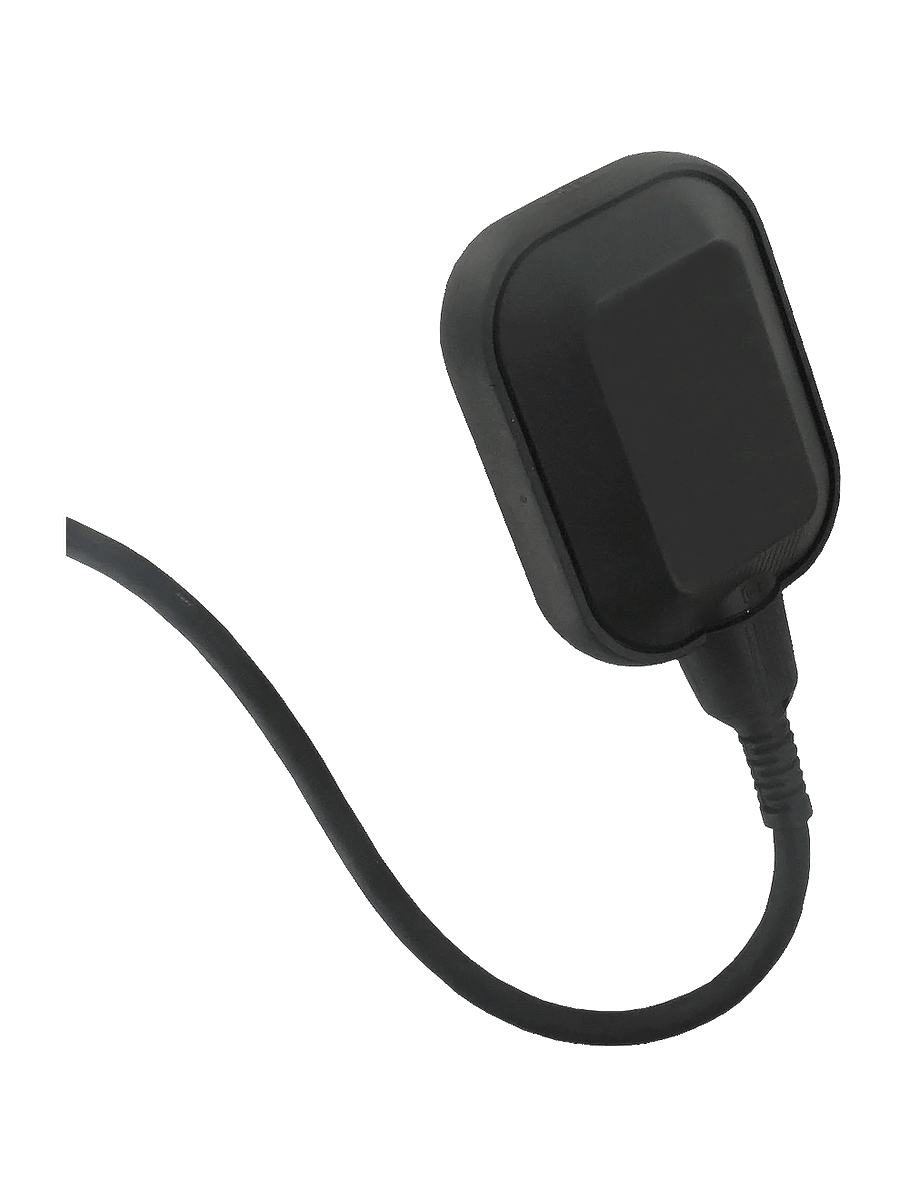

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CFS2-ONBPN-50

Jump to: Overview & Specifications Reviews

Overview Details for CFS2-ONBPN-50

See catalog product page for full listing

PVC cable | SPST | NO | 10(8)A 250V~ | 50 ft ( 15.24 m) cable

SERIES CFS2 CABLE FLOAT SWITCH

Mercury-Free, UL/CSA Approval Options

The Series CFS2 Cable Float Switches is a mechanically actuated floating switchintended to activate electrical components, such as pumps, to start and stop automatically.The CFS2 is perfect for simple level control of liquids for filling or draining reservoirs andtanks. Float switches such as the CFS2 are the most universally used for pump automation,due to their high reliability, economical pricing, and easy installation. Counterweights andcable hangers are available to suit a variety of mounting applications. Optional cablesavailable include those with UL/CSA approval, higher chemical compatibility, hightemperature durability, oil resistance, and drinking water suitability. Contact factory forpiggyback plug option, gold contact switch option and cable length options ranging from 10to 70' (3.04 to 21.34 m).

Product Applications

Water level monitoring
Tank level control
High or low level alarm
Municipal water control
Industrial water control
Filling or draining reservoirs and tanks
Pump automation

High reliability with mercury-free, magnetic, mechanical internal design
Economical pricing with multiple option available for increased versatility
Easy installation with counterweights and cable hangers to suit a variety of mountingapplications

Specifications

Series: CFS2 CABLE FLOAT SWITCH
Category/Type: Level
Type: Level Switches
Series: CFS2 CABLE FLOAT SWITCH
Service: Compatible liquids.
Wetted Materials: Enclosure: Polypropylene; Cable: See model chart on catalog page.
Temperature Limits: 32 to 122°F (0 to 50°C).
Pressure Limits: 14.5 psi (1 bar).
Enclosure Rating: IP68.
Switch Type: See model chart on catalog page.
Electrical Rating: CFS2-XXBXX-XX10 (8) A @ 250 VAC.CFS2-XXDXX-XX1 HP @ 125 VAC 16 FLA;2 HP @ 250 VAC 12 FLA;
Shipping Weight: Enclosures: 5.43 oz (154 g);Cable: 0.77 oz (21.27 g) per ft.
Agency Approvals: CE; CSA; UL.
