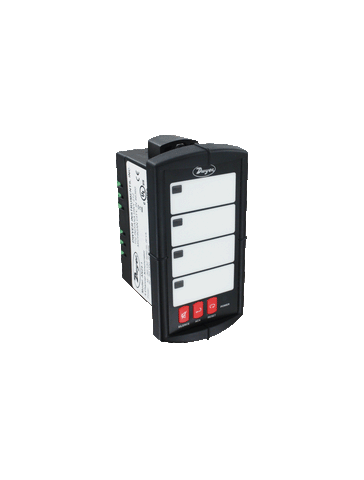

AN24-2 | Indicating annunciator | four input | with 12 to 36 VDC power supply. | Dwyer

Indicating annunciator, four input, with 12 to 36 VDC power supply.

Brand: DwyerSKU: AN24-2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AN24-2

Jump to: Overview & Specifications Reviews

Overview Details for AN24-2

See catalog product page for full listing

Indicating annunciator | four input | with 12 to 36 VDC power supply.

Series AN2 Indicating Alarm Annunciator

Up to 8 Inputs, Integral Power Supply

The Series AN2 Indicating Alarm Annunciator provides visible and audible alarms for up to eight inputs. The annunciator also has two SPDT relay outputs that can be used to initiate external alarms, buzzers, or paging devices. The Integral 24 VDC power supply can power most level, temperature, pressure, and flow switches. Audible alarm conditions can be acknowledged, reset, or silenced either via the front panel push buttons or the rear terminal block. The Series AN2 can be set to any common ISA sequences including First-Out.

Product Applications

Water and wastewater panels
Tank level monitoring
Temperature monitoring process

Includes integral 24 VDC power supply to power most switches
Can be set to any common ISA sequences

Specifications

Series: AN2 Indicating Alarm Annunciator
Category/Type: Process Control
Type: Indicating Annunciators
Series: AN2 Indicating Alarm Annunciator
Inputs: NO or NC switches; Open Collector Transistor (Open circuit voltage = 3.3 VDC); Logic Levels: LO = 0 to 0.9 VDC; HI = 2.4 to 28 VDC (100 KΩ input impedance).
Outputs: Two SPDT relay (3 A @ 250 VAC or 30 VDC; resistive; 1/14 HP @ 125/250 VAC; inductive).
Ambient Operating Temperature: -40 to 149ºF (-40 to 65ºC).
Power Requirements: 85 to 265 VAC 50/60 Hz; 90 to 265 VDC; 12 to 36 VDC; 12 to 24 VAC (depending on model).
Power Consumption: 20 W (6 W on low voltage models).
Mounting: 1/8 DIN.
Housing Material: UL rated 94V-0 high impact plastic.
Enclosure Rating: NEMA 4X (IP65) front panel.
Weight: 9.6 oz (272 g).
Agency Approvals: CE; cUL; UL.
