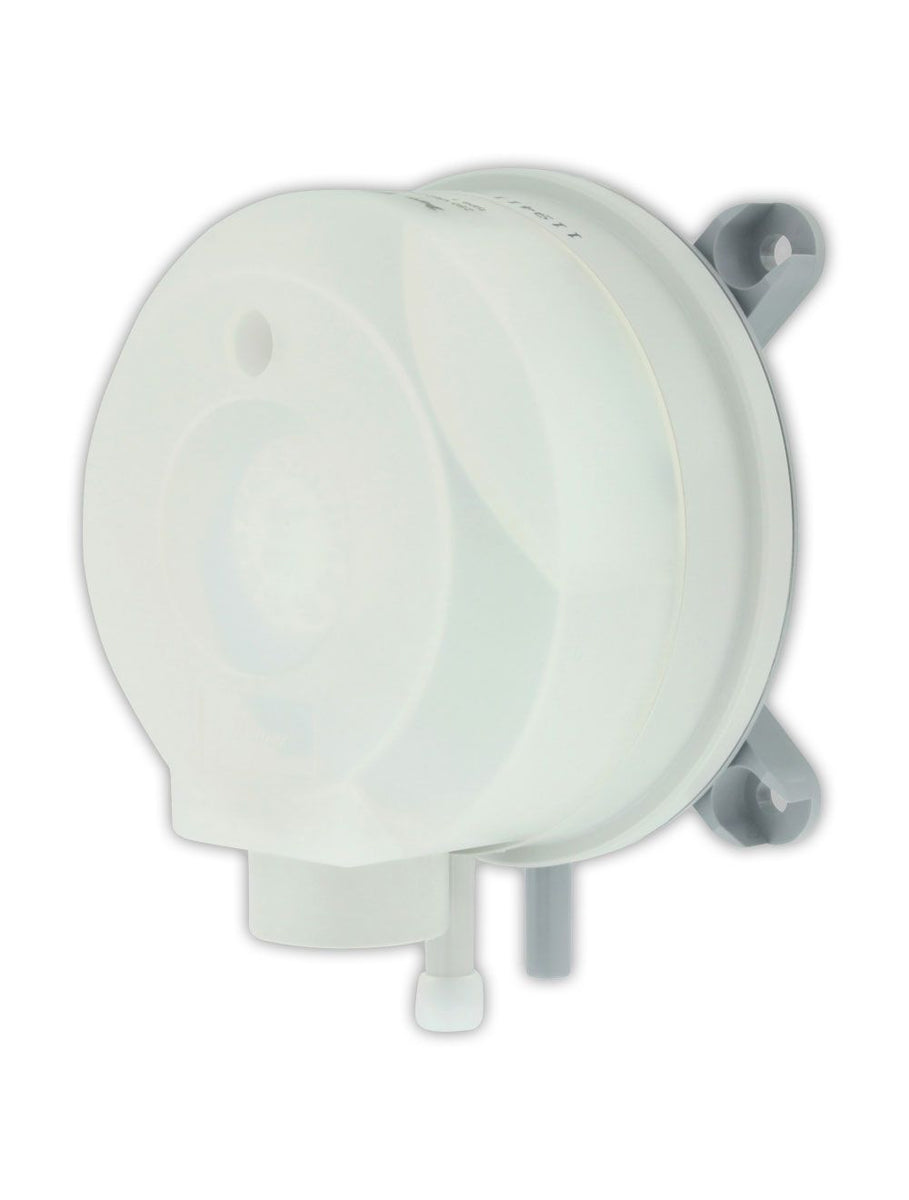

ADPS-04-2-N-C | Adjustable differential pressure switch | set point range 0.12 to 1.60" w.c. | M20 connection | with two static tips and 7 ft (2.1 m) of PVC tubing. | Dwyer

Adjustable differential pressure switch, set point range 0.12 to 1.60" w.c., M20 connection, with two static tips and 7 ft (2.1 m) of PVC tubing.

Brand: DwyerSKU: ADPS-04-2-N-C

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ADPS-04-2-N-C

Jump to: Overview & Specifications Reviews

Overview Details for ADPS-04-2-N-C

See catalog product page for full listing

Adjustable differential pressure switch | set point range 0.12 to 1.60" w.c. | M20 connection | with two static tips and 7 ft (2.1 m) of PVC tubing.

Series ADPS/EDPS Differential Pressure Switch

With Dual Scale Field Adjustable Set Point Knob

The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.

Please see Series AT-ADPS for ATEX approved.

Product Applications

Monitoring air filters and ventilators.
Monitoring industrial cooling-air circuits.
Overheating protection for fan heaters.
Monitoring flows in ventilation ducts.
Controlling air and fire-protection dampers.
Frost protection for heat exchanges.

Adjustment knob changes switching pressure easily with a pressure gage reducing components for application
Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring
Relay contact allows simple integration with DDC or building systems

Specifications

Series: ADPS/EDPS Differential Pressure Switch
Service: Air and non-combustible; compatible gases.
Wetted Materials: ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene;EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.
Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits: Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges.
Switch Type: Single-pole double-throw (SPDT).
Electrical Rating: Max. 1.5 A res./0.4 A ind./250 VAC; 50/60 Hz; Max. switchingrate: 6 cycles/min.
Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2" NPT connection.
Process Connections: 5/16" (7.94 mm) outside diameter tubing; 1/4" (6.0 mm) inside diameter tubing.
Enclosure Rating: NEMA 3 (IP54).
Mounting Orientation: Vertically; with pressure connections pointing downwards.
Mechanical Working Life: Over 106 switching operations.
Weight: 4.4 oz (125 g).
Agency Approvals: CE; ETL approved to UL508 and CSA C22.2#14 (EDPS only).
