Documents: A4-3

Instruction Manual Series A4 Catalog Page More Info

A4-3 | Differential pressure switch | ±8 psi (.55 bar) repeatability | set point (increasing) 25-45 psid (1.7-3.1 bar) | set point (decreasing) 10-21 psid (.68-1.5 bar). | Dwyer

Differential pressure switch, ±8 psi (.55 bar) repeatability, set point (increasing) 25-45 psid (1.7-3.1 bar), set point (decreasing) 10-21 psid (.68-1.5 bar).

Brand: DwyerSKU: A4-3

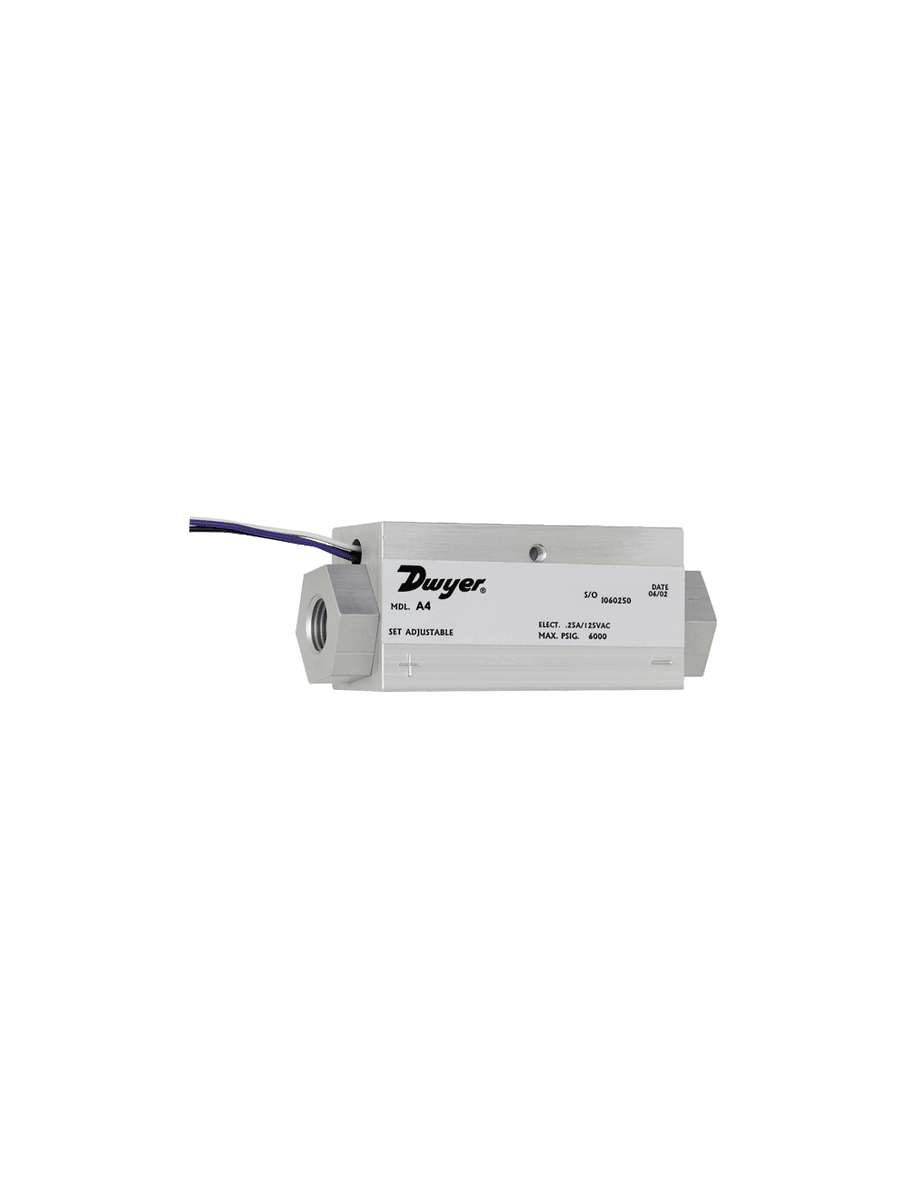

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A4-3

Jump to: Overview & Specifications Reviews

Overview Details for A4-3

See catalog product page for full listing

Differential pressure switch | ±8 psi (.55 bar) repeatability | set point (increasing) 25-45 psid (1.7-3.1 bar) | set point (decreasing) 10-21 psid (.68-1.5 bar).

Series A4 Differential Pressure Switch

Adjustable Set Point, High Overpressure

Rugged Series A4 Differential Pressure Switch offers field adjustments and can handle system pressures up to 6000 psig. Piston design allows mounting in any orientation. The switch is capable of carrying moderate shock and vibratory loads.

Specifications

Series: A4 Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: A4 Differential Pressure Switch
Service: Compatible gases.
Wetted Materials: Body; piston; and fittings: anodized aluminum; spring: steel.
Temperature Limits: -65 to 225°F (-54 to 107°C).
Pressure Limits: 2000 psid (138 bar).
Repeatability: See Ordering page.
Switch Type: SPDT.
Electrical Rating: AC: 3 VA; 0.25A @ 120 VAC; 5 VA; 0.25A @ 175 VDC.
Electrical Connection: 24 AWG X 12" (30.5 cm) wire leads.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any.
Set Point Adjustment: See Ordering page.
Weight: 8.5 oz (241 g).
Agency Approvals: CE.
