A2-7801 | Subminiature pressure switch | brass | 50-150 psi (3.5-10.3 bar) | spade terminals | NO | Dwyer
Subminiature pressure switch, brass, 50-150 psi (3.5-10.3 bar), spade terminals, NO

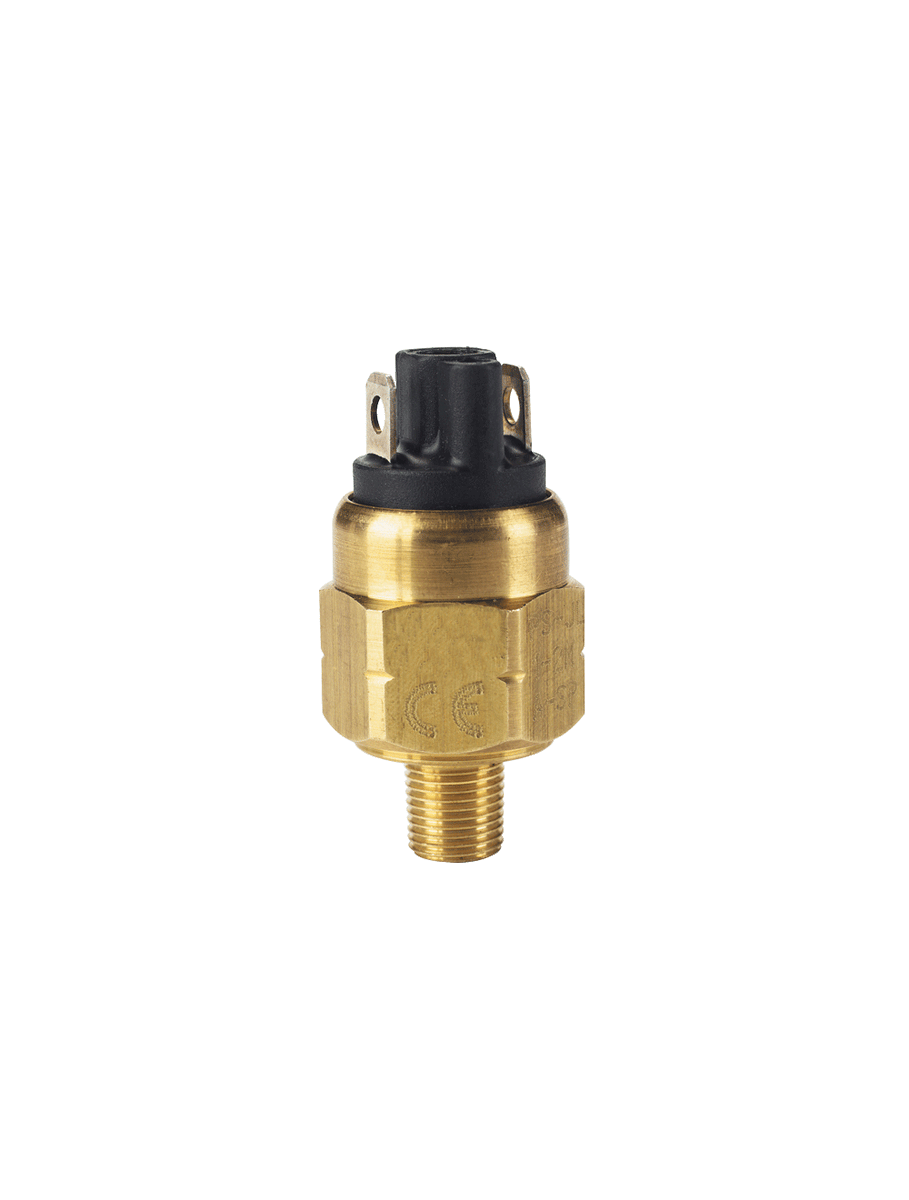

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A2-7801
Documents and manuals
Dwyer A2-7801 Documents
Overview
Details for A2-7801
See catalog product page for full listing
Subminiature pressure switch | brass | 50-150 psi (3.5-10.3 bar) | spade terminals | NO
SERIES A2 SUBMINIATURE PRESSURE SWITCH
Field Adjustable
Designed for OEM applications, the Series A2 Subminiature Pressure Switchis economical and is equipped with high proof pressure capabilities for demandingapplications. The A2 is available with either spade terminals or flying leads(submersible). Switches with spade terminals can be easily adjusted in the field.
Product Applications
- OEM
- High-proof pressure means capable to meet application demands
- Easy to adjust switches means shorter install and service times
Specifications
- Series
- A2 SUBMINIATURE PRESSURE SWITCH
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- A2 SUBMINIATURE PRESSURE SWITCH
- Service
- Compatible liquids and gases.
- Wetted Materials
- Polymide film and brass.
- Temperature Limits
- -40 to 230°F (-40 to 110°C).
- Pressure Limits
- 350 psi (24 bar).
- Enclosure Rating
- IP69 (flying lead models only).
- Repeatability
- ±3% of highest set point at 70°F (21°C).
- Switch Type
- SPST; 100 VA; 42 VDC.
- Electrical Connection
- 1/4" (6.3 mm) spade terminals or flying leads.
- Process Connection
- 1/8" male NPT; or 1/4" male NPT.
- Weight
- 0.15 lb (0.07 kg).
- Deadband
- <10% of actuation point.
- Agency Approval
- CE.
