681-42 | Sanitary pressure transmitter | range 0-15 psi | 150 psi overpressure | 2" sanitary clamp connection. | Dwyer

Sanitary pressure transmitter, range 0-15 psi, 150 psi overpressure, 2" sanitary clamp connection.

Brand: DwyerSKU: 681-42

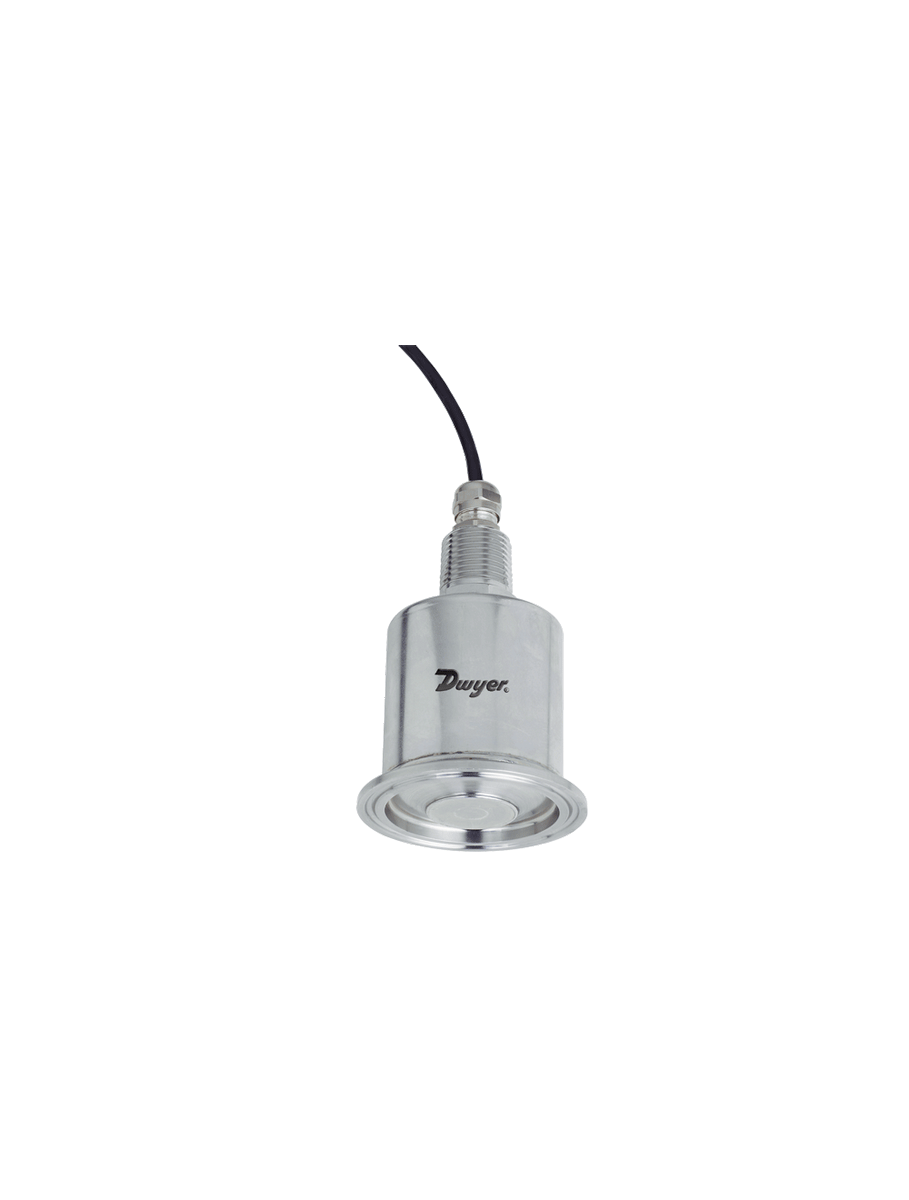

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 681-42

Jump to: Overview & Specifications Reviews

Overview Details for 681-42

See catalog product page for full listing

Sanitary pressure transmitter | range 0-15 psi | 150 psi overpressure | 2" sanitary clamp connection.

Series 681 Sanitary Pressure Transmitter

No Liquid Fill Diaphragm, Sanitary Clamp Fitting

The Series 681 Sanitary Pressure Transmitter is designed to meet 3A standards for applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place (CIP) and Sterilize-in-Place (SIP) installations. The Series 681 is designed with a unique, no liquid fill diaphragm and a Sanitary Clamp pressure fitting for easy installation with negligible clamping effect. A conduit fitting, shielded cable with vent tube and sealed screws for zero and span adjustment combine to make the Series 681 completely watertight.

Calibration Option available under Accessories.

Product Applications

Sanitary process applications
Food and beverage processing
Water processing
Dairy processing
Pharmaceutical processing

Fully sealed to withstand Clean-in-Place and Sterilize-in-Place installations supportsregulatory conditions for sanitary processes
Sanitary clamp fitting makes for easy installation

Specifications

Series: 681 Sanitary Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 681 Sanitary Pressure Transmitter
Service: Compatible liquids and gases.
Wetted Parts: 316L Stainless Steel.
Accuracy: ±.20% FS (includes non-linearity; hysteresis and non-repeatability).
Temperature Limits: -40 to 260°F (-40 to 125°C) 10 to 90% RH; non-condensing.
Pressure Limits: See Catalog page.
Compensated Temperature Range: 20 to 180°F (-7 to 80°C).
Thermal Effect: Zero and span shift: ±2.0% FS/100°F (% FS/50°C).
Power Requirements: 9-30 VDC.
Output Signal: 4-20 mA; 2-wire.
Zero and Span Adjustment: ±0.5 mA; non-interactive.
Response Time: ≤10 ms.
Loop Resistance: 800 ohms.
Electrical Connections: 1/2" conduit fitting and strain relief with 15 ft (4.5 m) cable.
Pressure Connection: 2" or 1-1/2" Sanitary Clamp fitting male NPT .
Clamping Effect: Zero and span shift: ±0.15% FS for ranges up to 30 psi; ±0.25% FS for ranges >30 psi.
Weight: 8 oz (227 g)
Agency Approvals: 3A; CE.
