Get Special Pricing!

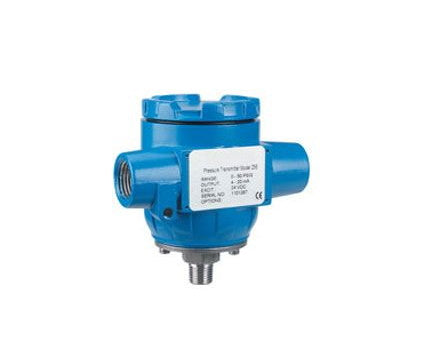

679-3 | Weatherproof pressure transmitter | range 0-250 psi | overpressure 500 psi. | Dwyer
Weatherproof pressure transmitter, range 0-250 psi, overpressure 500 psi.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 679-3
Documents and manuals
Dwyer 679-3 Documents
Overview
Details for 679-3
See catalog product page for full listing
Weatherproof pressure transmitter | range 0-250 psi | overpressure 500 psi.
Series 679 Weatherproof Pressure Transmitter
±0.25% FS Accuracy, Compatible with Corrosive Materials, 4-20 mA Output
The Series 679 Weatherproof Pressure Transmitter is compatible with a wide range of gases and liquids, and is specially designed forweatherproof service NEMA 4 (IP56). The Model 679 can measure pressures with an accuracy of ±.25%. This model provides a 4-20 mA output and is field adjustable.
Specifications
- Series
- 679 Weatherproof Pressure Transmitter
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- 679 Weatherproof Pressure Transmitter
- Service
- Corrosive liquids and gases.
- Accuracy
- ±.25% FS (includes non-linearity; hysteresis and non-repeatability).
- Pressure Limits
- See Catalog page.
- Output
- 4-20 mA; 2-wire.
- Supply Voltage
- 9-30 VDC.
- Loop Resistance
- 800 ohms.
- Zero and Span Adjustment
- ±15%; non-interactive.
- Stability
- Less than .5% FS/year.
- Temperature Limits
- -40 to 260°F (-40 to 125°C) 10 to 90% RH; non-condensing.
- Compensated Temperature Range
- -4 to 176°F (-20 to 80°C).
- Pressure Connection
- 1/4" male NPT.
- Wetted Parts
- Corrosive resistant 17-4 PH Stainless Steel.
- Enclosure
- Aluminum.
- Electrical Connections
- Two 1/2" conduit ports.
- Weight
- 13.4 oz (380 g).
- Agency Approvals
- CE.
