Documents: 679-1

679 Series 679 Catalog Page More Info

679-1 | Weatherproof pressure transmitter | range 0-50 psi | overpressure 150 psi. | Dwyer

Weatherproof pressure transmitter, range 0-50 psi, overpressure 150 psi.

Brand: DwyerSKU: 679-1

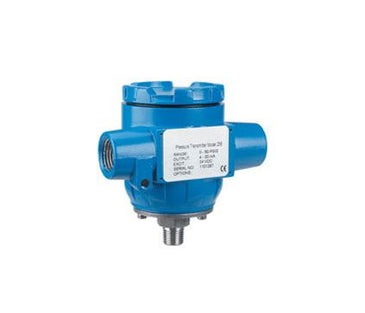

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 679-1

Jump to: Overview & Specifications Reviews

Overview Details for 679-1

See catalog product page for full listing

Weatherproof pressure transmitter | range 0-50 psi | overpressure 150 psi.

Series 679 Weatherproof Pressure Transmitter

±0.25% FS Accuracy, Compatible with Corrosive Materials, 4-20 mA Output

The Series 679 Weatherproof Pressure Transmitter is compatible with a wide range of gases and liquids, and is specially designed forweatherproof service NEMA 4 (IP56). The Model 679 can measure pressures with an accuracy of ±.25%. This model provides a 4-20 mA output and is field adjustable.

Specifications

Series: 679 Weatherproof Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 679 Weatherproof Pressure Transmitter
Service: Corrosive liquids and gases.
Accuracy: ±.25% FS (includes non-linearity; hysteresis and non-repeatability).
Pressure Limits: See Catalog page.
Output: 4-20 mA; 2-wire.
Supply Voltage: 9-30 VDC.
Loop Resistance: 800 ohms.
Zero and Span Adjustment: ±15%; non-interactive.
Stability: Less than .5% FS/year.
Temperature Limits: -40 to 260°F (-40 to 125°C) 10 to 90% RH; non-condensing.
Compensated Temperature Range: -4 to 176°F (-20 to 80°C).
Pressure Connection: 1/4" male NPT.
Wetted Parts: Corrosive resistant 17-4 PH Stainless Steel.
Enclosure: Aluminum.
Electrical Connections: Two 1/2" conduit ports.
Weight: 13.4 oz (380 g).
Agency Approvals: CE.
