673-1C | Pressure transmitter | range 0-1 psi. | Dwyer
Pressure transmitter, range 0-1 psi.

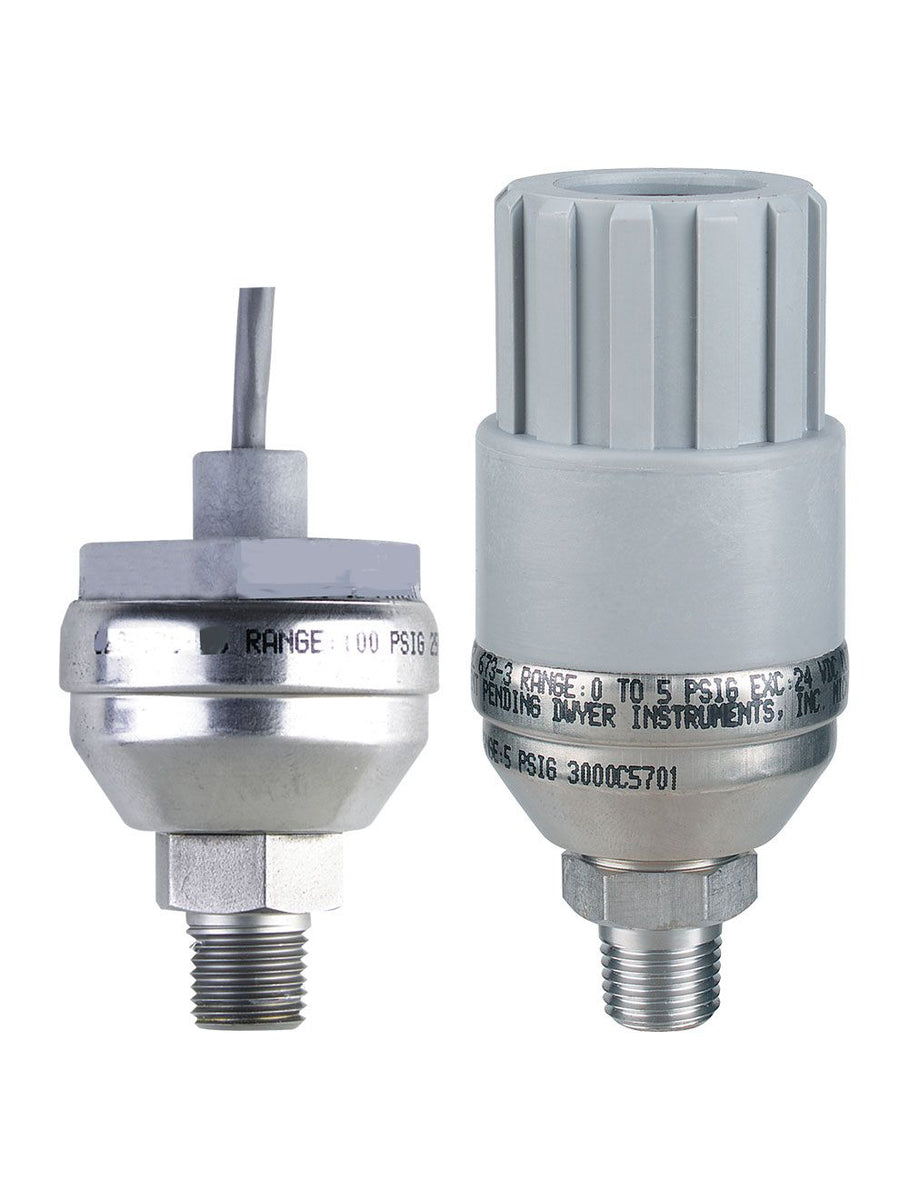

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 673-1C
Documents and manuals
Dwyer 673-1C Documents
Overview
Details for 673-1C
See catalog product page for full listing
Pressure transmitter | range 0-1 psi.
Series 673 Pressure Transmitter
±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi
The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.
Calibration Option available under Accessories.
Product Applications
- OEM
- Hydraulic systems
- HVAC equipment
- Industrial engines
- Compressors
- High-shock and vibration resistant insures stability in controlling pressure for processapplications
Specifications
- Series
- 673 Pressure Transmitter
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- 673 Pressure Transmitter
- Service
- Non-combustible liquid; gas; or vapor.
- Wetted Materials
- 17-4 PH Stainless Steel.
- Accuracy
- RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
- Temperature Limits
- -40 to 185°F (-40 to 85°C).
- Compensated Temperature Range
- -40 to 176°F (-40 to 80°C).
- Pressure Limits
- 2X max range.
- Thermal Effects
- Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
- Stability
- 0.5% FS/year.
- Response Time
- 5 ms.
- Power Requirements
- 9-30 VDC.
- Output
- 4-20 mA**; 2-wire.
- Zero and Span Adjustment
- Fixed.
- Loop Resistance
- 0 to 800 Ω.
- Shock
- 200 g.
- Vibration
- 20 g.
- Electrical Connections
- 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
- Enclosure
- Stainless Steel and Valox.
- Weight
- 2.3 oz (65 g).
- Agency Approvals
- CE.
- *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
