668D-22-3 | Compact differential pressure transmitter | 0 to 5 VDC | 0 to 0.4" w.c. | Dwyer

Compact differential pressure transmitter, 0 to 5 VDC, 0 to 0.4" w.c.

Brand: DwyerSKU: 668D-22-3
Dwyer | 668D-22-3

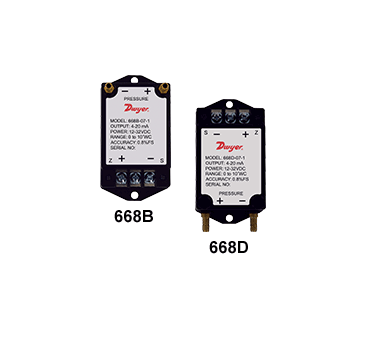

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 668D-22-3

Overview Details for 668D-22-3

See catalog product page for full listing

Compact differential pressure transmitter | 0 to 5 VDC | 0 to 0.4" w.c.

Series 668B/D Compact Differential Pressure Transmitters

Ranges from 0.1 to 100 in w.c., Overpressure Protection to 15 psig, ±0.8% Accuracy

Our low cost Series 668B/D Compact Differential Pressure Transmitters are capable of sensing differential gage pressure with ±0.8% FS accuracy, and converts this pressure difference to a proportional high level analog output for both unidirectional and bi-directional pressure ranges. These transmitters can withstand up to 15 psig overpressure with no damage to the unit. The compact, lightweight design makes installation simple and easy. Units are protected against incorrect wiring, and include a protective terminal cover.

Calibration Option available under Accessories.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • HVAC and VAV control
  • Clean rooms and isolation rooms
  • Duct static pressure measurement
  • Protection from 15 psi overpressure & incorrect wiring
  • High accuracy at low pressure ranges
  • Two package selections allows easy device mounting to best fit application pressure connections

Specifications

Series
668B/D Compact Differential Pressure Transmitters
Category/Type
Pressure
Type
Differential Pressure
Series
668B/D Compact Differential Pressure Transmitters
Service
Air and non-conductive gases.
Accuracy
±0.8% FS.
Temperature Limits
Operating: 0 to 170°F (-18 to 77°C); Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits
15 psig (1.0 bar).
Thermal Effects
±0.03% FS/°F (±0.054% FS/°C).
Compensated Range
From 40 to 170°F (4.4 to 77°C).
Power Requirements
12 to 32 VDC.
Output Signals
4 to 20 mA (2-wire); 0 to 10 VDC (3-wire); or 0 to 5 VDC (3-wire).
Zero Adjustment
Accessible under the small terminal cover.
Electrical Connection
Terminal strip.
Process Connection
3/16" OD barbed brass for 1/8" ID push-on tubing.
Enclosure
Stainless steel and PC+ABS alloy; UL 94 V-0 rated.
Weight
4.0 oz (113 g).
Agency Approvals
CE.
