636D-1-LP | Fixed range differential pressure transmitter | range 0-15 psid. | Dwyer

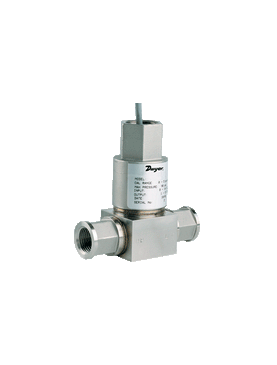

Fixed range differential pressure transmitter, range 0-15 psid.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 636D-1-LP

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer 636D-1-LP Documents

Instruction Manual Series 636D Catalog Page More Info

Overview

Details for 636D-1-LP

See catalog product page for full listing

Fixed range differential pressure transmitter | range 0-15 psid.

Series 636D Fixed Range Differential Pressure Transmitter

Explosion-proof, 0.5% Accuracy

Series 636D Differential Pressure Transmitter can be used for measuring pressures of liquids, gases & vapors. All available ranges have an excellent 0.5% F.S. accuracy with a 4-20 mA Output standard or optional 1-5 VDC output. The NEMA 4 housing is an all 316 welded construction that is designed to withstand the harshest environmental conditions. With all 316L wetted materials, this transmitter is compatible with most media. These units are CSA approved explosion-proof for use in the specified hazardous locations and meet NACE standards for off-shore applications.

Calibration Option available under Accessories.

Product Applications

Monitoring Differential Pressure for;

Oil & Gas Applications
Level Measurements in Non-Vented Liquid Tanks
Filtration Systems
Compressor Control
Process Control

NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Explosion-proof device for use in hazardous areas
Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application

Specifications

Series: 636D Fixed Range Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 636D Fixed Range Differential Pressure Transmitter
Service: Compatible gases; liquids or vapors.
Wetted Materials: Types 316L SS.
Accuracy: BFSL: ±0.5% F.S. (includes linearity; hysteresis & repeatability).
Stability: ±1.0% F.S./yr.
Pressure Limits: 3 x full scale differential pressure; burst: 2500 psig.
Temperature Limits: Ambient Operating: -40 to 140°F (-40 to 60°C); Process Interface: -40 to 212°F (-40 to 100°C); Storage: -40 to 212°F (-40 to 100°C).
Compensated Temperature Range: -20 to 160°F (-29 to 71°C).
Thermal Effect: ±2% F.S./50°F (reference to 77°F).
Power Requirements: 12-30 VDC for 4-20 mA outputs; 8-14 VDC for 1-5 VDC outputs; both with reverse polarity protection.
Output Signal: 4 to 20 mA DC or 1-5 VDC.
Zero and Span Adjustments: Fixed.
Response Time: 20 ms.
Loop Resistance: 900 ohms max. @ 30 VDC for current outputs. For voltage outputs; minimum lead resistance 50k ohms.
Current Consumption: 4-20 mA for current output models; 3 mA for voltage output models.
Electrical Connections: 2 ft; 22 AWG cable; 3/4" female NPT conduit.
Process Connection: Two 1/2" female NPT.
Enclosure Rating: NEMA 4 (IP65).
Mounting Orientation: ±0.05 psi/90° rotation from horizontal.
Weight: 1.8 lb (0.82 kg).
Agency Approvals: CSA approved explosion-proof for Class I; Division 1; Groups B; C and D; Class II; Groups E; F; and G; Class III.
