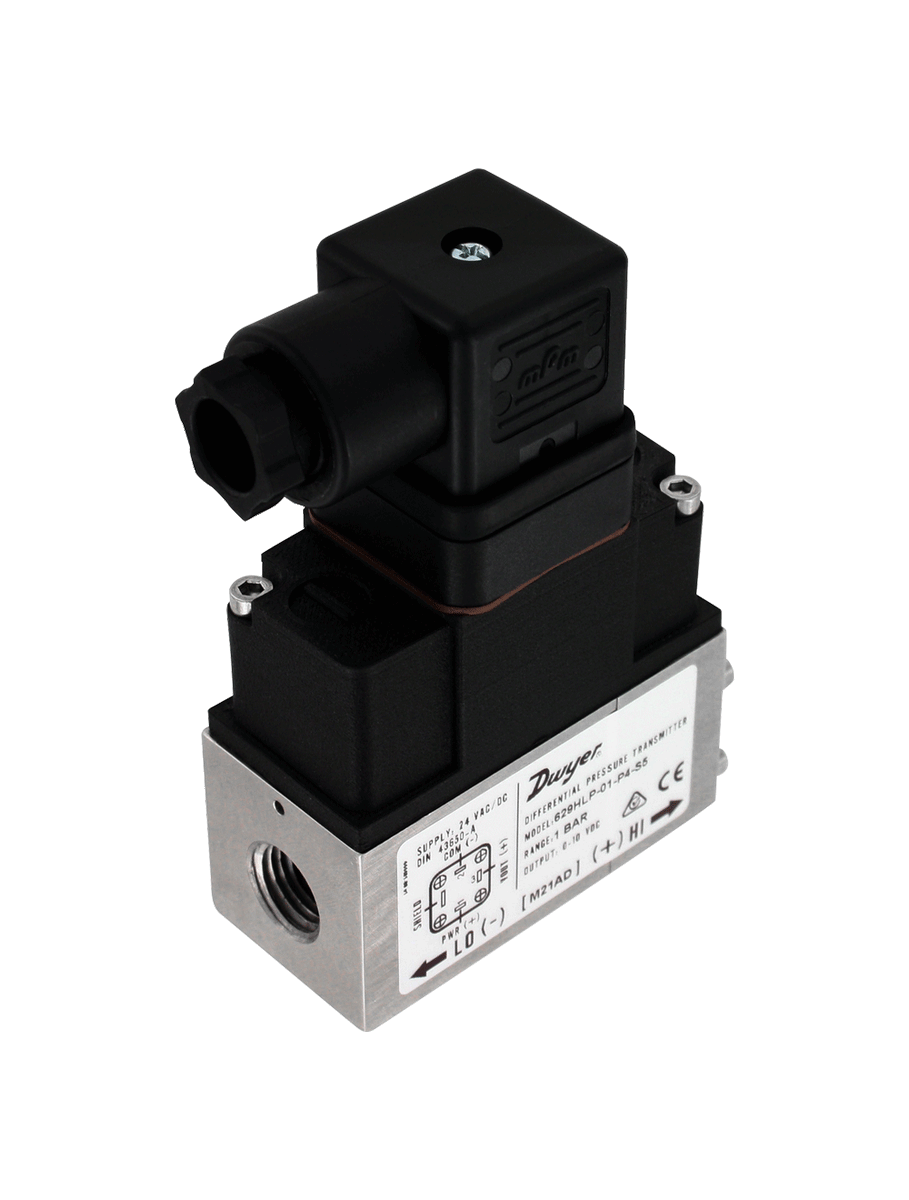

Differential pressure transmitter | 0-15 psi | 1/4" Female NPT | 4-20mA
Series 629HLP Differential Pressure Transmitter
High Accuracy, IP65 Enclosure
The Series 629HLP Differential Pressure Transmitters are suitable for measuring over-pressure, under-pressure, and differential pressure in compatible gases and liquids with 1% accuracy. The 629HLP is suitable for all measuring tasks in commercial, industrial or sanitary applications. Its single sensor design allows it to measure small increment pressure changes, and converts them to a linear analog output signal from 4 to 20 mA or 0 to 10 VDC.
NIST CALIBRATION available in Product Configurator.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Heat exchangers
- Fan coils/air handlers
- Core testing applications
- Hydraulic systems
- High line pressures/low DP
- Pumps
- Commercial/industrial processes
- Sanitary process
- Rugged, versatile, high accuracy device
- For liquid or gas systems requiring precise measurements
- Provide excellent response and reliability
- Suitable for static and dynamic measurements
- Converts pressure changes into 4 to 20 mA or 0 to 10 VDC output
- Compact, lightweight, capable to be installed in any arrangement making installationvery simple
- Capable to handle up to 360 psi (25 BAR)
Specifications
- Series
- 629HLP Differential Pressure Transmitter
- Service
- Compatible gases or liquids.
- Wetted Material
- 304 SS; EPDM; silicone grease; alumina ceramic; optional 3-way valve: brass; copper; nylon; HNBR; FKM; NBR.
- Housing Material
- ABS.
- Enclosure Rating
- IP65.
- Accuracy
- ±1% from -5 to 60°C (23 to 140°F).
- Stability
- ±1% FS/year.
- Temperature Limits
- Ambient: -10 to 60°C (14 to 122°F); Process: -10 to 80°C (14to 176°F).
- Relative Humidity
- 10% to 90% non-condensing.
- Installation Position
- Not position sensitive.
- Over Pressure
- 5 bars for 0 to 1 bar and 0 to 2.5 bar ranges; 12 bars for 0 to 4 bar and 0 to 6 bar ranges; 70 psi for 0 to 15 psi and 0 to30 psi ranges; 174 psi for 0 to 60 psi and 0 to 90 psi ranges.
- Burst Pressure
- 8 bars for 0 to 1 bar and 0 to 2.5 bar ranges;18 bars for 0 to 4 bar and 0 to 6 bar ranges; 115 psi for 0 to 15 psi and 0 to30 psi ranges; 260 psi for 0 to 60 and 0 to 90 psi ranges.
- Static Pressure Limits
- 25 bar (360 psi).
- Output Signal
- 4 to 20 mA; 0 to 10 VDC.
- Response Time
- 50 ms.
- Rated Supply Voltage
- 0 to 10 VDC Output: 12 to 36 VDC or 12 to 32 VAC (@ Max load of 2 kΩ) 4 to 20mA output: 8 to 36 VDC.
- Max Loop Resistance
- (Supply Voltage – 8 V) / 0.02 for 4 to 20mA output.
- Power Consumption
- Vout = 13 mA max; Iout = 24 mA max.
- Electrical Connections
- Form A DIN 43650.
- Process Connections
- Standard: 1/4" female NPT; 1/4" female BSPT; with 3-way valve option: 1/8" female NPT; 1/8" female BSPT.
- Weight
- 1 lb 4 oz (567 g).
- Approvals
- CE.
