628-09-GH-P1-E1-S1 | Industrial pressure transmitter | range 0-50 psig | general purpose housing | 1/4" male NPT | 3' cable | 4-20 mA | max. pressure 100 psig | over pressure 300 psig. | Dwyer
Industrial pressure transmitter, range 0-50 psig, general purpose housing, 1/4" male NPT, 3' cable, 4-20 mA, max. pressure 100 psig, over pressure 300 psig.
Documents and manuals
Dwyer 628-09-GH-P1-E1-S1 Documents
Overview
Details for 628-09-GH-P1-E1-S1
Industrial pressure transmitter | range 0-50 psig | general purpose housing | 1/4" male NPT | 3' cable | 4-20 mA | max. pressure 100 psig | over pressure 300 psig.

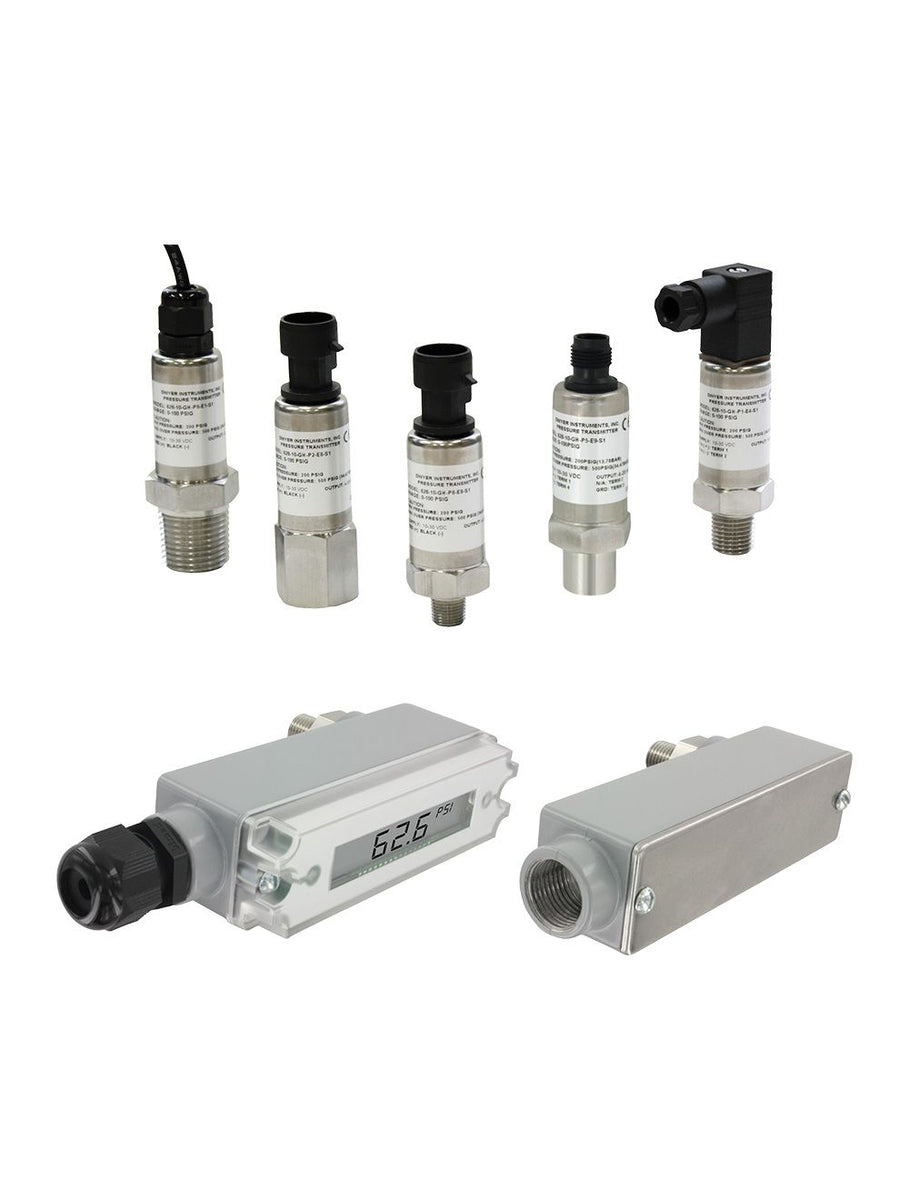

Series 626 & 628 Industrial Pressure Transmitter
The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
NIST CALIBRATION available in Product Configurator.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
- Compressors
- Pumping Systems
- Irrigation System Pressure
- Industrial Process Monitoring
- Hydraulic
- Robust 316L SS oil filled sensor provides shock and vibration resistance insuringstability in controlling pressure for process applications
- NEMA 4X rated enclosure provides protection in harsh environments permittingoutdoor monitoring or in areas where dust and particulate matter exists
- A wide range of models and connections that can meet pressure measurementspecifications from low to very high
Specifications
- Series
- 626 & 628 Industrial Pressure Transmitter
- Service
- Compatible gases and liquids.
- Wetted Materials
- Type 316L SS.
- Accuracy
- 626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity; hysteresis; and repeatability.)
- Temperature Limit
- 0 to 200°F (-18 to 93°C).
- Compensated Temperature Range
- 0 to 175°F (-18 to 79°C).
- Thermal Effect
- ±0.02% FS/°F. (includes zero and span).
- Pressure Limits
- See table on catalog page.
- Power Requirements
- 10 to 30 VDC (for 4 to 20 mA; 0 to 5; 1 to 5; 1 to 6VDC outputs); 13 to 30 VDC (for 0 to 10; 2 to 10 VDC outputs); 5 VDC ±0.5 VDC(for 0.5 to 4.5 VDC ratio-metric output); 10 to 35 VDC (for 4 to 20 mA with -CBoption); 13 to 35 VDC or isolated 16 to 33 VAC (for selectable output with -CBoption).
- Output Signal
- 4 to 20 mA; 0 to 5 VDC;1 to 5 VDC; 0 to 10 VDC; or 0.5 to 4.5VDC; or selectable 0 to 5; 1 to 5; 0 to 10; 2 to 10 VDC for -CB option.
- Response Time
- 300 ms.
- Loop Resistance
- 0-1000 Ω max. R max = 50 (Vps-10) Ω (4-20 mA output); 5 KΩmin (0-5; 1-5; 0.5-4.5 VDC output); 15 KΩ min (1-6; 0-10; 2-10 VDC output).
- Stability
- 1.0% FS/year (Typ.).
- Current Consumption
- 38 mA maximum (for 4 to 20 mA output); 10 mA maximum (for 0 to 5; 1 to 5; 1 to 6; 0 to 10; 2 to 10; 0.5 to 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED).
- Electrical Connections
- Model dependent options: Wire end; Hirschman DIN EN 175801-803-C; Packard; Deutsch; M12.
- Process Connection
- Model dependent options: 1/8"; 1/4"; 1/2" male NPT; 1/4" female NPT; 1/4" male or female BSPT; 1/8" or 1/4" male BSPP ISO 1179; 1/4"female SAE valve depressor.
- Enclosure Rating
- NEMA 4X (IP66).
- Mounting Orientation
- Mount in any position.
- Weight
- 10 oz (283 g).
- Compliance
- CE; Optional: NSF/ANSI 61/372; ANSI/UL 218; ANSI/UL 508; NEPA 20.
